Large Area Laser Marking: 3D Dynamic vs Gantry Moving — Which Is Better for Your Application?

What Is 3D Dynamic Laser Marking?

3D dynamic laser marking (also known as 3D galvo laser marking) uses a high-speed galvanometer scanner combined with a dynamic focusing unit (Z-axis). This allows the laser beam to adjust focus automatically in real time while scanning, enabling precise marking over large fields and complex surfaces.

Key Advantages:

• Extremely fast marking speeds thanks to galvo technology
• Large marking area without stitching or repositioning
• Excellent for curved, irregular, or uneven surfaces
• Consistent focus and high-quality results across the entire field
• Ideal for 3D relief and deep engraving

Limitations:

• Higher initial equipment cost
• More complex system requiring skilled setup and maintenance
• Power density may slightly decrease with very large field lenses

Best Applications:

• Automotive components with curved surfaces
• Complex molds and tooling
• High-precision marking on large metal plates
• 3D engraving and deep marking on irregular geometries

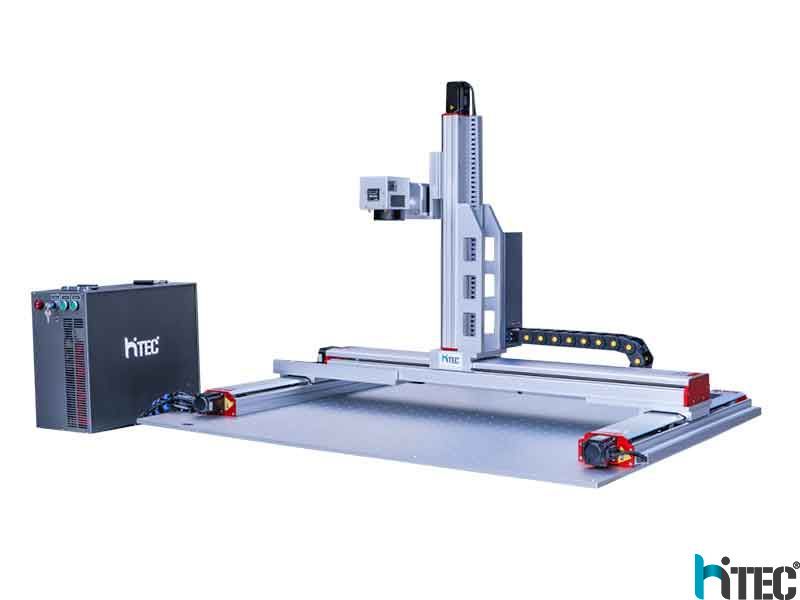

What Is Gantry Moving Laser Marking?

Gantry moving laser marking relies on a mechanical XY gantry system (linear rails and servo motors) to move either the laser head or the workpiece. The marking area expands through physical movement rather than optical scanning.

Key Advantages:

• Virtually unlimited marking size — highly customizable for extra-large parts
• Stable and consistent laser power delivery
• More cost-effective for very large flat formats
• Robust for heavy-duty industrial environments

Limitations:

• Slower processing speed compared to galvo systems
• Potential stitching lines when marking in sections
• Limited to flat surfaces only

Best Applications:

• Large sheet metal marking and fabrication
• Nameplates, panels, and industrial signage
• Flat surface engraving on oversized workpieces
• High-volume batch processing of large flat parts

3D Dynamic vs Gantry Moving Laser Marking: Head-to-Head Comparison

Which Large Area Laser Marking System Should You Choose?

Choose 3D Dynamic Laser Marking if you:

• Need maximum speed and high-precision results
• Work with curved, 3D, or irregular surfaces
• Want seamless marking without stitching lines
• Focus on high-end or detailed applications (molds, automotive parts, 3D engraving)

Ideal for: Premium manufacturing, aerospace components, mold making, and complex 3D parts.

Choose Gantry Moving Laser Marking if you:

• Process very large, flat workpieces
• Prioritize cost-effectiveness and size flexibility
• Speed is secondary to handling oversized materials
• Run industrial-scale production of flat panels or sheets

Ideal for: Sheet metal fabrication, large nameplates, signage, and mass production of flat components.

Final Recommendation

There is no single “best” solution for large area laser marking — the right choice depends on your part size, surface geometry, production volume, and budget.

• Prioritize speed, flexibility, and curved surface capability? → 3D Dynamic is usually the smarter choice.
• Need maximum size scalability and lower cost per square meter? → Gantry Moving systems perform better.

Many manufacturers successfully combine both technologies in one facility to cover different production requirements.

Expert Advice from Hitec Laser

At Hitec Laser, we recommend:

• 3D dynamic systems for high-value, precision, and complex jobs
• Gantry moving systems for large-format industrial marking

We also design custom hybrid solutions that integrate the strengths of both technologies for specialized projects.

Still unsure which large area laser marking machine fits your material, dimensions, or throughput goals? Contact the Hitec Laser team today. We offer professional application evaluation, sample testing, and tailored recommendations to ensure you get the optimal solution for your production needs.
