Hitec Mopa 50w 100w 200w 500w fiber laser XY moving table for large filed nameplate laser engraving machine

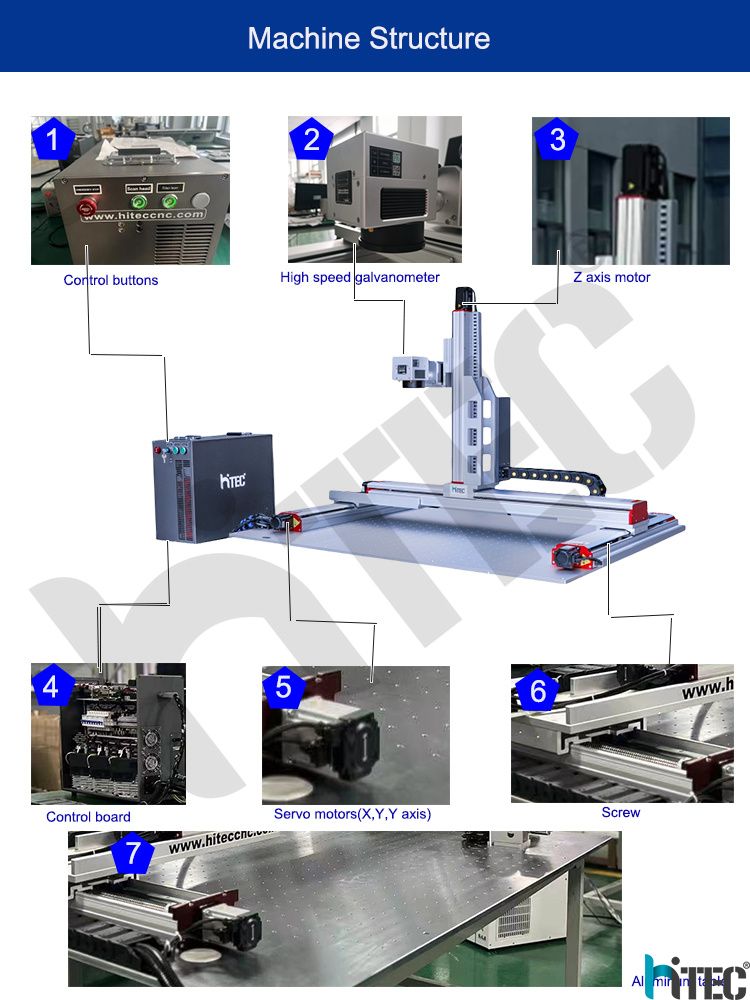

Whats the gantry moving fiber laser?

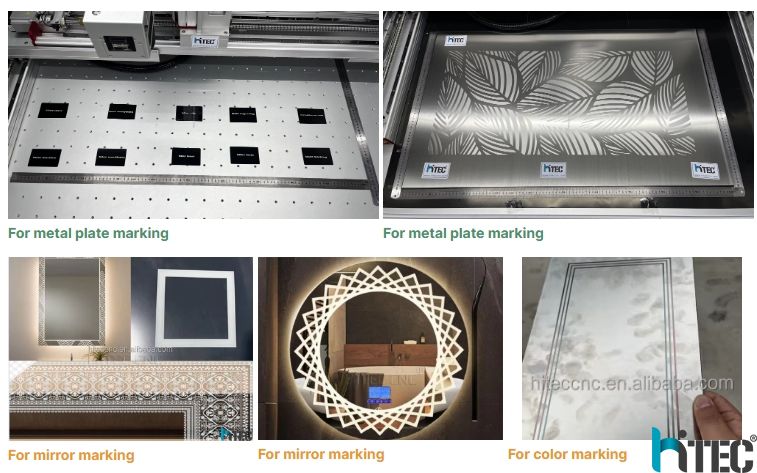

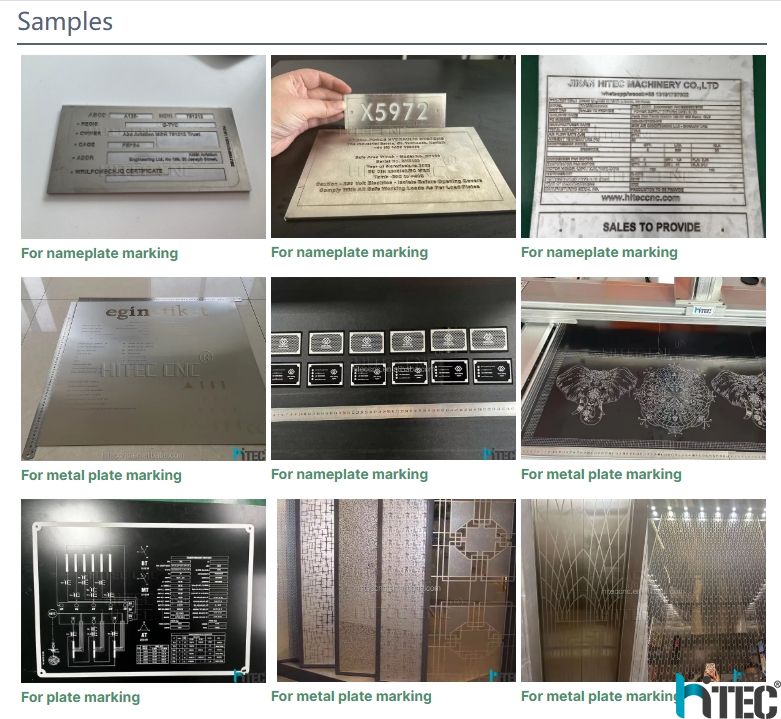

A large-size gantry moving fiber laser marking machine uses a fiber laser (typically 30W to 500W) and a gantry-style motion system (like a CNC) to move the laser head across a wide working area. This setup allows the laser to mark or engrave on large, flat materials that remain stationary while the laser moves over them.When marking size more than 300*300mm, We can custom the electric movable Gantry XYY, XY, X axis worktable for fiber laser marking machine. Popular application for engraving cutting logo or text on large format metal plate like stainless steel, carbon steel, slive, gold, titanium.

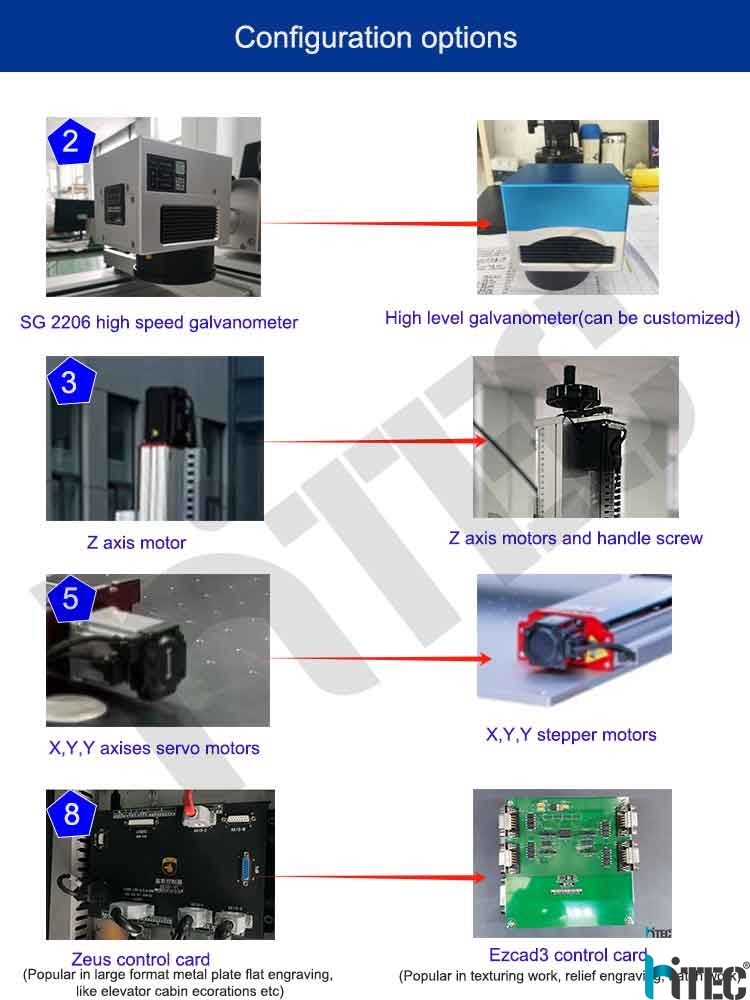

HITEC Laser Can Customize Movable Electric X Y Z -Axis
XYY Bed Size : 400&400mm, 600x600mm,600&900, 1000x600mm,1200&1200, 1500x1000mm etc.XY Worktable Size : 300x300mm, 400x400mm,500x300mm, 800x300mm, 1000x300mm etc. 1500&1500mm
X Worktable Size : 300mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm etc.
Parameters of Fiber laser marking machine
| Brand | HITECCNC |
| Model | HTJ-6090 Pro |
| Power | 50W 60W 80W 100W 200W 300W 500W |
| Laser Wavelength | 1064μm |
| Marking Area | 110mm*110mm, optional 70*70mm, 145*145mm, 175*175mm, 200*200mm, 300*300mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.015mm |
| Minimum Character | 0.2mm |
| Repeated Precision | ±0.003mm |
| Controller(Software-EzCAD) | EZCAD3 Software Or Zues software |
| Lifespan of Fiber Laser Source | 100000 hours |
| Focus Spot Diameter | <0.01mm |
| System Operating Environment | WINDOWS XP/7/8 |
| Cooling Mode | Air Cooling |
| Working Temperature | 0℃-40℃ |
| Voltage | 220V/50Hz or 60Hz |
| Power | 500W |
| Price | 5000$-10000$ |
