JPT 60W Mopa dynamic focus fiber laser marking machine for metal 3D relief engraving

JPT 60W Mopa dynamic focus fiber laser marking machine for metal 3D relief engraving, color laser marking, aluminum black marking, especially used for deep engraving to realize the 3D surface, get best affordable 3D fiber laser marking machine from china hiteccnc

MODEL: HTJ-60FM-3D
BRAND: HITEC
VIEWS:

JPT 60W Mopa dynamic focus fiber laser marking machine for metal 3D relief engraving

3D Dynamic focus laser marking machinedynamic focus laser marking machine3D fiber deep metal engraving
Advantage of dynamic focus fiber laser marking machine
  1. Fastest marking
  2. No consumables
  3. Low maintenance
  4. Low operating costs
  5. Surface treatments resistant
  6. Mark at high temperatures
  7. Laser safety guidance
Why choose our 3D fiber laser marking machine?
  1. Fiber laser markers range from 20W to 100W depending on the marking speed required for your application.
  2. A 3D  to mark any types of geometries including (but not limited to) curved surfaces.
  3. On-the-fly laser marking to mark moving parts.
  4. An autofocus system to detect variations in the part’s position and adjust the marking operation.
  5. Different lenses to adjust the marking distance, the marking field, and the laser’s focus.
  6. All lasers are configured with a laser process optimized for your application. Laser processes include laser etching, laser engraving, laser annealing, and laser ablation.

Application

3D Application,support importing of STL model, self-developed model,etc,support 3D data editing, rapid realization of 3D surface marking,relief processing.Self-developed software,support further development,support multi-languages for better user experiencing.Optimization for application, open interface, can be customized according to requirement.Provide production line marking,visual positioning marking,automation marking and other solutions to meet the diverse needs of customers.Dynamic compensation algorithm, ensure wide focus consistency, better effect.Support multi file formats and coding,support importing of drawing softwares, vector graphic, text, bar code, deep metal engraving, aluminum deep engraving, color marking on stainless steel, aluminum black engraving etc.

1. Auto machinery industry: steel sleeve, piston ring, engine, factory metal flexible paper plates, engine metal flexible paper plates, machine tools, etc.
2. Electronic communications industry: the keyboard, electronic components, household appliances panel, fiber optic cable, cable, etc.
3. Hardware equipment industry: tools, measuring tool, cutting tool, sanitary ware, tableware, lock, knife cut, medical equipment, fitness equipment, stainless steel products, etc.
4. Buckle sign industry: buttons, bags buckle, belt buckle, gold and silver jewelry, signs, badges, attendance cards, greeting cards, calendars, photo cards, leather bags, belts, pens and pen boxes,awards, trophies, all kinds of certificates, collections, arts, stamps, tablets, etc.
5. Gauge glasses industry: metal case, the bottom of the table, glass frame, instrument panel, etc.
6. Wooden craft industry: wooden crafts, calligraphy and painting to copy and process table,
furniture decoration, etc
7. Packaging bottle caps industry: tobacco, food, medicine, cosmetics and so packaging, metal bottle caps, cans,
etc
Parameters
Brand HITECCNC
Laser Generator: JPT MOPA 60W
Laser Source Life Time: 100,000 + hours
Standard Working Area: 200 mm × 200 mm  Optional F20 (24” x 24”) 600*600mm
Marking Speed: up to 7000 mm/s
Laser Wavelength: 1.06 um
Beam divergence: 0.3 mrad
Focused beam diameter: <=20 um
Min. line width: 0.02 mm
Min letter size: 0.15 mm
Marking depth: 0.03-0.08 mm
Power Supply: 110 V / 60 Hz/220v 50HZ
Cooling: Air-cooled, no extra cooling needed
Dimensions: 770*470*770mm
Net Weight:  70kg
 Price Range 6,000$-1,2000$
Details Parts

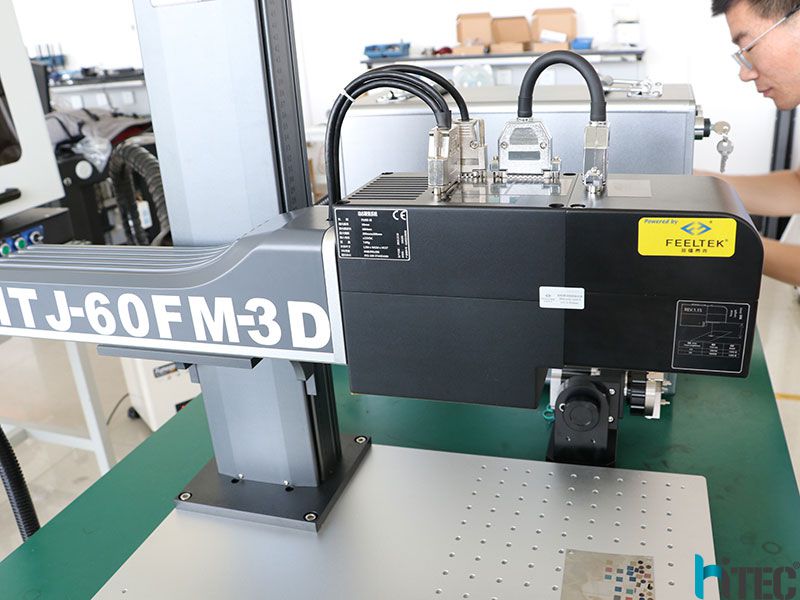

3D parts

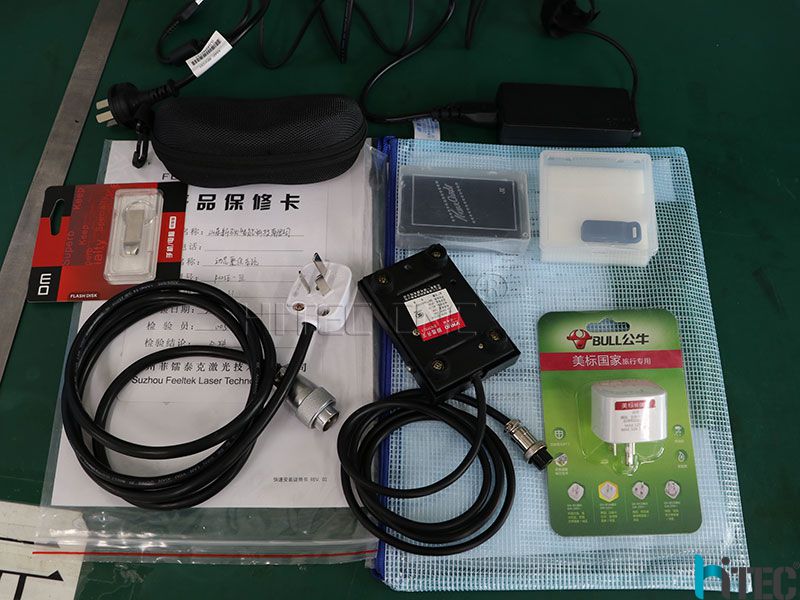

3D laser marking machine parts

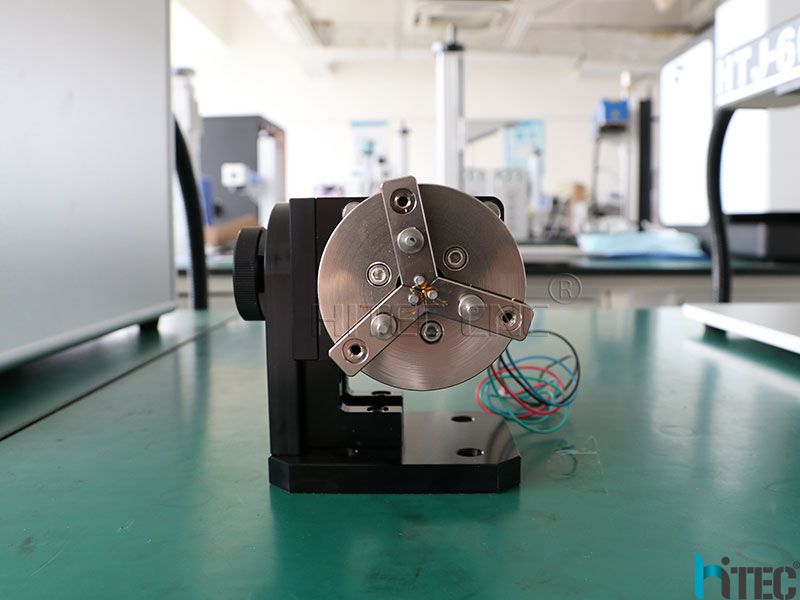

5. Optional Parts
30w jpt laser marking

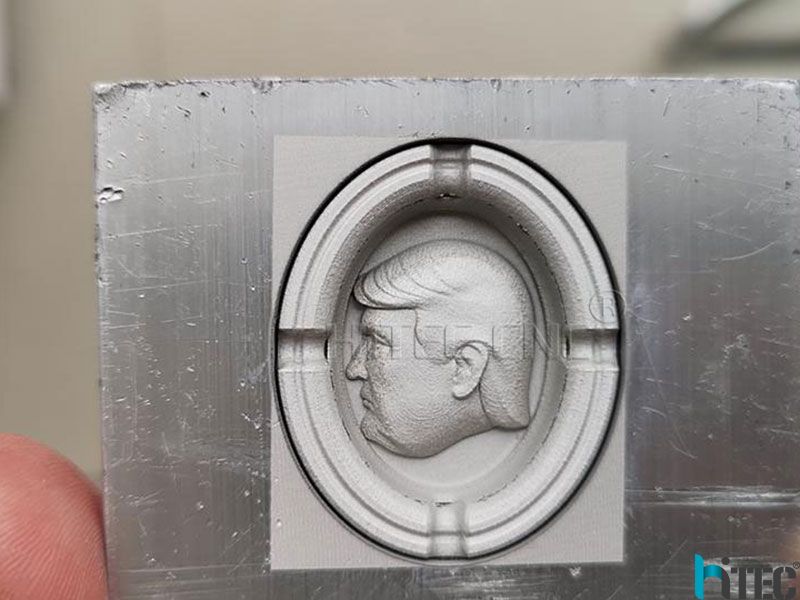

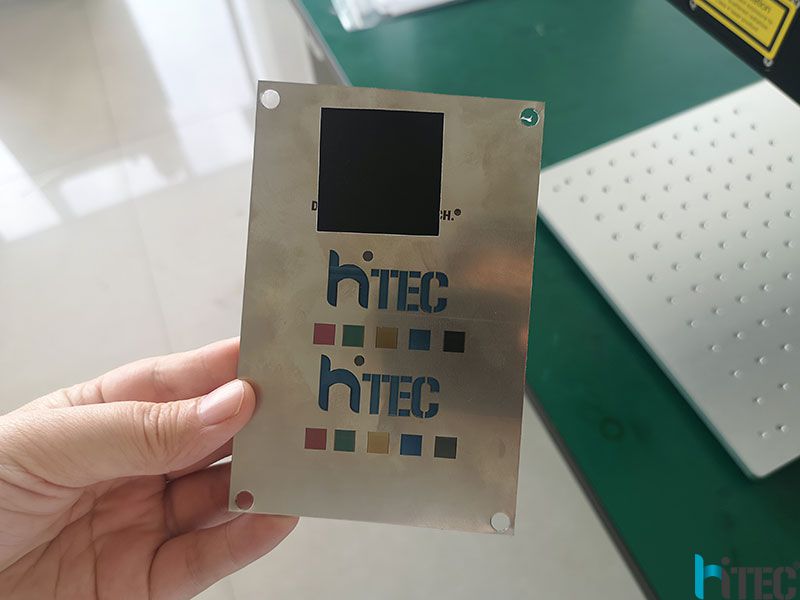

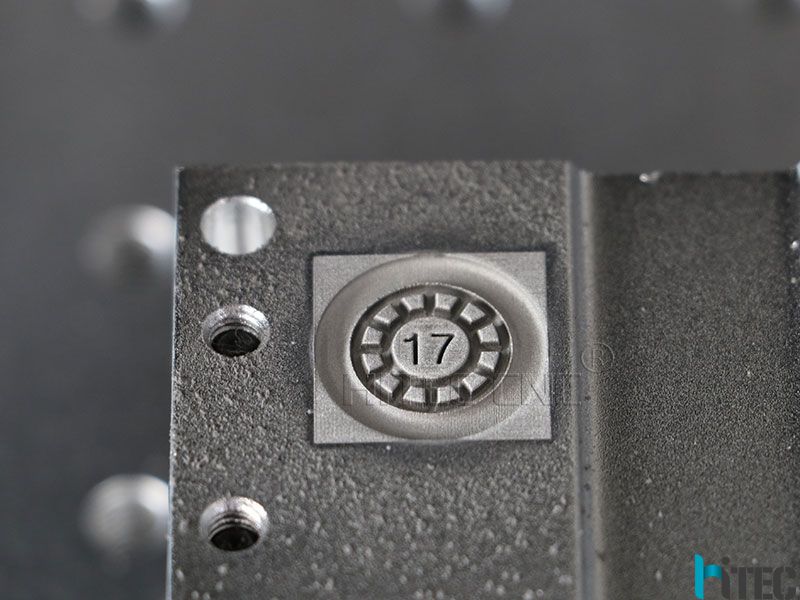

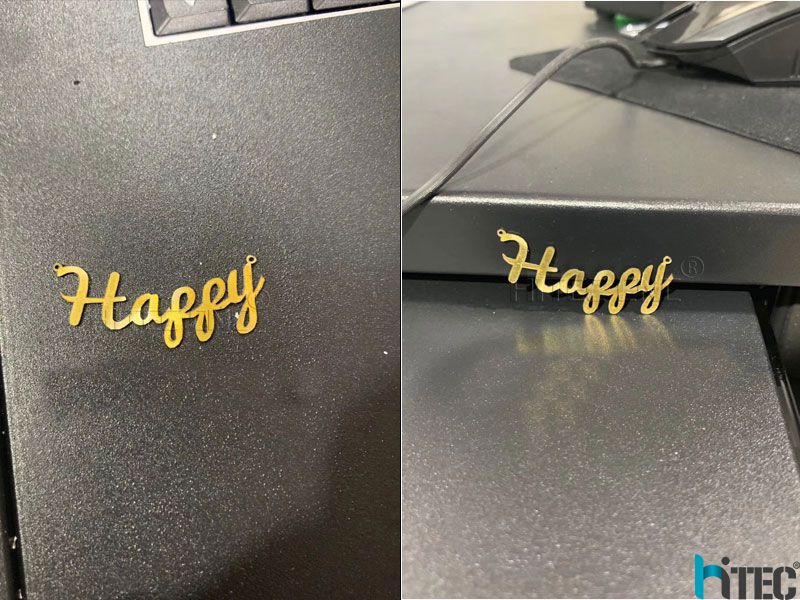

3D deep metal laser marking machine samples
3d metal deep laser engraving machinealuminum metal engravinglaser gun engravingcolor laser engraving

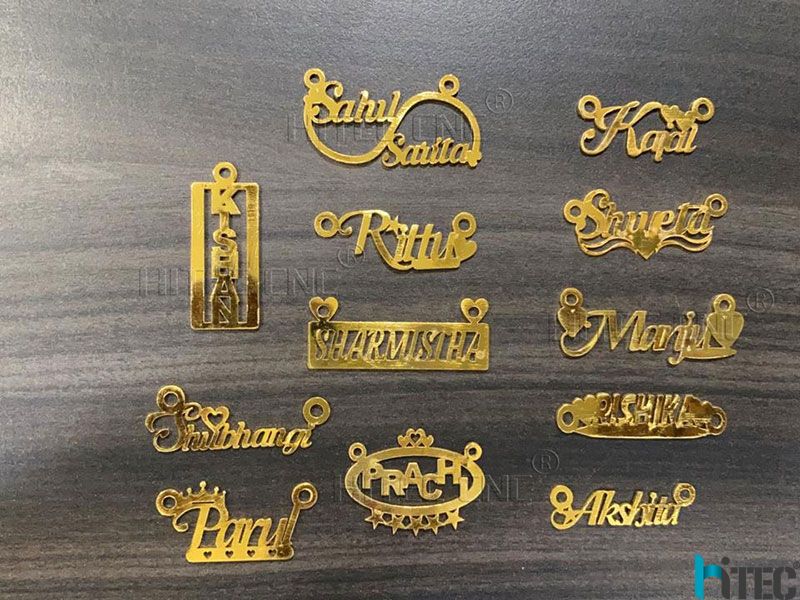

Other samples can do
3d fiber laser


Packing List
hitec laser marking machine
3D fiber laser marking machine package
  1. 1.The innermost layer is EPE pearl cotton film package.
  2. 2.The middle layer is wrapping up with environmental protection material .
  3. 3.And the outermost layer is winding up with PE stretch film.
  4. 4. Strong water resit bottom in plywood.
  5. 5. Plywood packing and steel strip outside fixed the box.
  6. 6. Finishing packing by normal container or frame container.

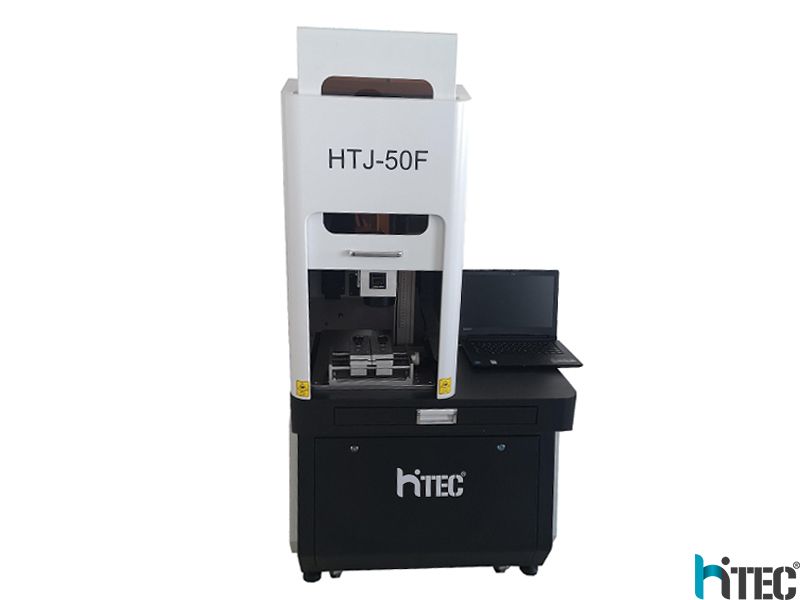

3D fiber laser marking machine

Any other kind of hot sale machine in stock?

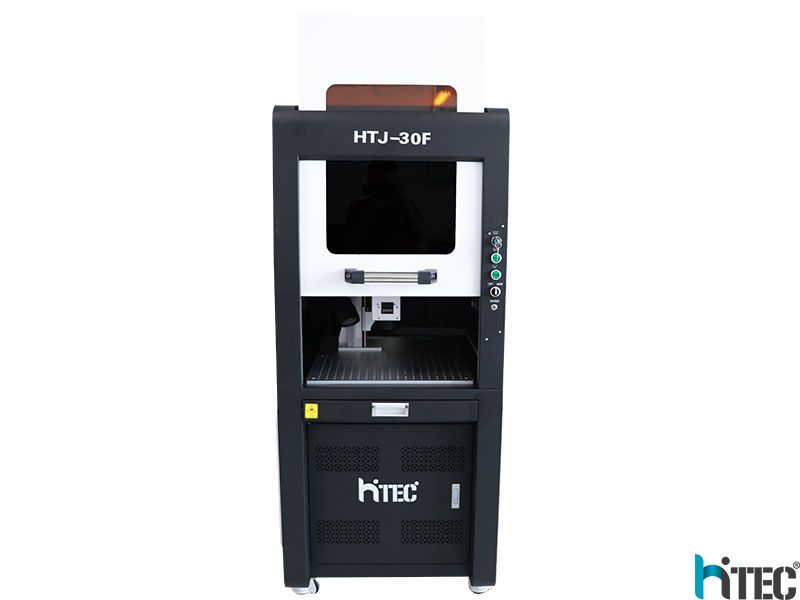

1. If you want marking large size up to 600*600mm, we have 3D laser marking machine F203.
3d deep metal engraving machine

2. If you now have enough budget for 3D fiber laser with dynamic laser head, we also have 2.5D laser marking machine with EZCAD3.
laser marking machine with ezcad3
