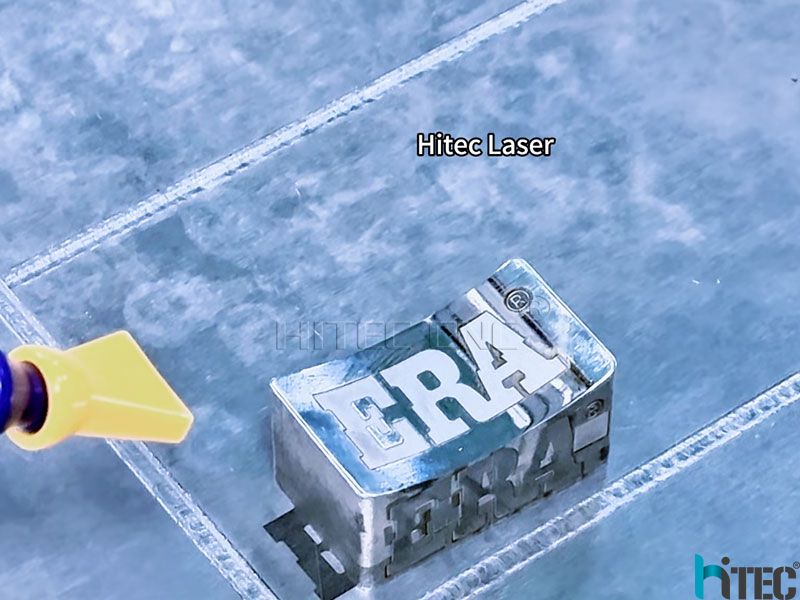

The Physics and Precision of Deep Laser Engraving on Hardened Steel Molds (2026 Edition)
2026-03-18 15:38:51
www.hiteccnc.com
In the realm of high-precision mold making, hardened steel (HRC 50–62) represents both the ultimate goal and the greatest obstacle. Its hardness ensures longevity and wear resistance in production, yet this same property makes it notoriously resistant to modification.
Traditional mechanical engraving on such surfaces invites tool deflection, catastrophic cutter failure, and micro-fractures that propagate under injection molding pressure. Conversely, naive laser application often results in a "thermal disaster": excessive heat input leads to an enlarged Heat Affected Zone (HAZ), localized annealing (softening the very hardness we seek to preserve), and tensile stresses that manifest as micro-cracks days after processing.
Deep engraving on hardened steel is not merely material removal; it is a controlled thermodynamic negotiation. In 2026, with the maturity of tunable MOPA (Master Oscillator Power Amplifier) sources and real-time plasma monitoring, we have moved from "burning marks" to "photonics-based micro-machining." This guide dissects the physics behind deep engraving, offering a roadmap to achieve sub-micron precision at significant depths while preserving the metallurgical soul of the mold.
Step 1: The Photonics Foundation – Selecting the Right Architecture
The choice of laser source dictates the physical interaction mechanism. For hardened steel, the battle is between ablation efficiency and thermal confinement.
Why MOPA is Non-Negotiable: Standard Q-switched fiber lasers offer fixed pulse widths, forcing a compromise between speed and heat. A MOPA fiber laser allows independent control of pulse width (from <2ns to >200ns) and frequency.
Short Pulses (10–30ns): Essential for the finishing layers. They confine energy to the electron lattice before thermal diffusion occurs, achieving "cold ablation" that minimizes HAZ.
Longer Pulses (50–100ns): Optimal for bulk removal in early passes, where melting and vaporization eject material more efficiently, provided the duty cycle is managed.
Power Density vs. Average Power: While 50W–100W is standard, the critical metric is Peak Power Density. High beam quality (M² < 1.2) ensures the energy is concentrated into a spot size small enough to exceed the ablation threshold of hardened steel instantly, rather than slowly heating it.
Wavelength Considerations: While 1064nm is standard, emerging hybrid systems in 2026 allow slight wavelength tuning to optimize absorption coefficients for specific alloying elements (e.g., Chromium in S136 or Vanadium in H13).
Step 2: Metallurgical Preparation – More Than Just Cleaning
Surface preparation is about managing energy coupling and stress distribution.
Controlled Reflectivity: Hardened steel, especially when polished, acts as a mirror to 1064nm light. Initial pulses may reflect up to 60% of energy, causing instability.
Strategy: Apply a transient, laser-ablatable coating (e.g., a thin layer of specialized marking spray or even a controlled oxide layer via low-power pre-scanning) to increase initial absorptivity. This stabilizes the process before transitioning to direct metal ablation.
Stress-Relief Fixturing: Deep engraving induces thermal gradients. If the mold insert is clamped too rigidly without allowance for micro-expansion, thermal stress accumulates.
Advanced Technique: Use kinematic mounting that restricts movement in the Z-axis (cutting direction) but allows minute thermal expansion in the XY plane to prevent warping-induced focus drift.
Sub-Surface Integrity Check: Before engraving, use non-destructive testing (NDT) like dye penetrant inspection to ensure no pre-existing micro-cracks exist. Laser energy can act as a catalyst, propagating dormant defects into catastrophic failures.
Step 3: Parameter Optimization – The Dance of Thermodynamics
Setting parameters is not about finding a "preset"; it is about sculpting the thermal profile.
Pulse Width Modulation (PWM) Strategy:
Bulk Removal (Layers 1–70%): Utilize longer pulses (80–120ns) at moderate frequencies (40–60kHz). This maximizes the melt-ejection volume per pulse.
Microscopic HAZ Analysis: Use a metallurgical microscope (200x–500x) to inspect the cross-section (via a witness sample). Look for:
White Layer: A sign of rapid re-solidification. It must be <2µm.
Tempering Colors: Any blue or straw discoloration indicates the hardness has been compromised.
Micro-Cracks: Specifically at the sharp corners of the engraving, where stress concentration is highest.
Hardness Mapping: Perform micro-hardness testing (Vickers) across the engraved floor and sidewalls. The hardness should remain within 2–3 HRC points of the base material. A significant drop indicates successful engraving but failed thermal management.
Surface Roughness (Ra): For molding applications, Ra < 0.4µm is often required to prevent part sticking. If the laser leaves a rougher texture, plan for a subsequent chemical polishing or electro-polishing step, not mechanical grinding which risks dimensional error.
Step 6: The Future of Productivity – From Art to Science
To scale this process from a prototype skill to a production asset:
Closed-Loop Plasma Monitoring: Advanced 2026 systems utilize spectrometers to analyze the plasma plume in real-time. If the spectral signature indicates excessive oxidation or incomplete ablation, the system automatically adjusts power and speed on the fly.
Digital Twins: Simulate the thermal accumulation of your specific engraving pattern on a digital twin of the mold before running the job. This predicts hot spots and allows for preemptive path optimization.
Knowledge Graphs: Move beyond simple "recipe files." Build a database linking material batch numbers, exact hardness values, ambient humidity, and resulting optimal parameters. AI algorithms can then predict the perfect starting point for new jobs based on historical data.
