The HITEC Large Format Fiber Laser Marking Machine is designed for industrial applications where a conventional galvo laser marking system cannot efficiently cover the required working area.
By combining a fiber laser source with a mechanically moving laser system, the machine can process substantially larger metal surfaces while maintaining accurate positioning across the working area.
It is suitable for large metal nameplates, elevator panels, stainless steel sheets, aluminum plates, industrial logos, identification plates, and deep engraving applications.
Available working areas include 600 × 600 mm, 600 × 900 mm, 1300 × 900 mm, 1200 × 1200 mm and 1300 × 2500 mm.
By combining a fiber laser source with a mechanically moving laser system, the machine can process substantially larger metal surfaces while maintaining accurate positioning across the working area.
It is suitable for large metal nameplates, elevator panels, stainless steel sheets, aluminum plates, industrial logos, identification plates, and deep engraving applications.
Available working areas include 600 × 600 mm, 600 × 900 mm, 1300 × 900 mm, 1200 × 1200 mm and 1300 × 2500 mm.
Why Use a Large Format Laser Marking Machine?
When the Workpiece Is Larger Than the Galvo Field
A conventional galvo fiber laser scanner is limited by its optical field. When the required marking area becomes significantly larger than the available lens field, the design may require repositioning, sectional processing, or stitching.
A large-format system solves this problem by moving the laser head across the workpiece.
This makes it particularly suitable for applications where the workpiece itself is large, the marking layout is oversized, or multiple components need to be processed in one setup.
A large-format system solves this problem by moving the laser head across the workpiece.
This makes it particularly suitable for applications where the workpiece itself is large, the marking layout is oversized, or multiple components need to be processed in one setup.
Designed for Large Metal Surfaces
♦ Typical applications include:
♦ Large stainless steel nameplates
♦ Elevator panels
♦ Industrial identification plates
♦ Metal logos
♦ Aluminum panels
♦ Automotive components
♦ Machine plates
♦ Electrical and control panels
♦ Large-format deep engraving
♦ Multiple metal plates processed in one setup
♦ Large stainless steel nameplates
♦ Elevator panels
♦ Industrial identification plates
♦ Metal logos
♦ Aluminum panels
♦ Automotive components
♦ Machine plates
♦ Electrical and control panels
♦ Large-format deep engraving
♦ Multiple metal plates processed in one setup
Applications
Large Metal Nameplates
Permanent identification, serial numbers, logos, specifications and industrial information.
Elevator Panels
Large stainless steel elevator panels can be processed with customized layouts for decorative patterns, logos and identification.
Industrial Metal Plates
Suitable for machine plates, equipment identification plates and industrial signage.
Stainless Steel & Aluminum
Designed for permanent marking and engraving on common industrial metals.
Large Industrial Logos
Process oversized logos and graphic patterns on metal panels and components.
Deep Metal Engraving
Higher-power configurations are available for applications requiring significant material removal.
Large Format Laser Marking vs. Conventional Galvo
| Feature | Conventional Galvo Laser | Large Format Laser System |
| Optical marking field | Limited by the focusing lens | Extended through controlled mechanical movement |
| Large metal plates | Limited by the optical field | Designed for large workpieces |
| Oversized layouts | May require repositioning or sectional processing | More suitable for large-area applications |
| Multiple plates | Limited by the available marking field | Multiple parts can be arranged in one setup |
| Large nameplates | Requires careful positioning and repositioning | Designed for large-format processing |
| Deep engraving | Available | Available with higher-power configurations |
| Production flexibility | Best suited for small and medium-sized parts | Better suited for large and oversized components |
| Large-area applications | Limited by lens field | Designed for extended working areas |
| System configuration | Mainly optical scanning | Galvo scanning + controlled mechanical movement |
| Typical applications | Small parts, serial numbers, logos, fine marking | Large nameplates, elevator panels, metal sheets, industrial panels |
An Important Technical Point
Large-format laser marking does not mean that a galvo lens can suddenly mark an unlimited area without any limitations.
The optical field of the scanning head remains finite.
HITEC's large-format solution instead combines the advantages of high-speed galvo scanning with controlled mechanical movement, allowing the laser system to process areas substantially larger than a conventional single-field galvo setup.
For applications extending beyond one optical field, the actual processing method depends on the workpiece, marking layout, lens configuration and required accuracy.
The optical field of the scanning head remains finite.
HITEC's large-format solution instead combines the advantages of high-speed galvo scanning with controlled mechanical movement, allowing the laser system to process areas substantially larger than a conventional single-field galvo setup.
For applications extending beyond one optical field, the actual processing method depends on the workpiece, marking layout, lens configuration and required accuracy.
HITEC Laser Can Customize Movable Electric X Y Z -Axis
XYY Bed Size : 400&400mm, 600x600mm,600&900, 1000x600mm,1200&1200, 1500x1000mm etc.
XY Worktable Size : 300x300mm, 400x400mm,500x300mm, 800x300mm, 1000x300mm etc. 1500&1500mm
X Worktable Size : 300mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm etc.
XY Worktable Size : 300x300mm, 400x400mm,500x300mm, 800x300mm, 1000x300mm etc. 1500&1500mm
X Worktable Size : 300mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm etc.
Typical Materials
The HITEC large-format fiber laser system can be configured for a wide range of industrial metals, including:
• Stainless steel
• Carbon steel
• Aluminum
• Anodized aluminum
• Brass
• Copper
• Titanium
• Galvanized metal
• Coated metals
• Other commonly processed industrial metals
Material response varies according to alloy, surface condition, coating and required marking result.
• Stainless steel
• Carbon steel
• Aluminum
• Anodized aluminum
• Brass
• Copper
• Titanium
• Galvanized metal
• Coated metals
• Other commonly processed industrial metals
Material response varies according to alloy, surface condition, coating and required marking result.
Customer Cases
A Spanish customer uses this 600x900mm gantry laser for large format metal nameplate
Compared with traditional galvo systems, the marking consistency improved by 35%.

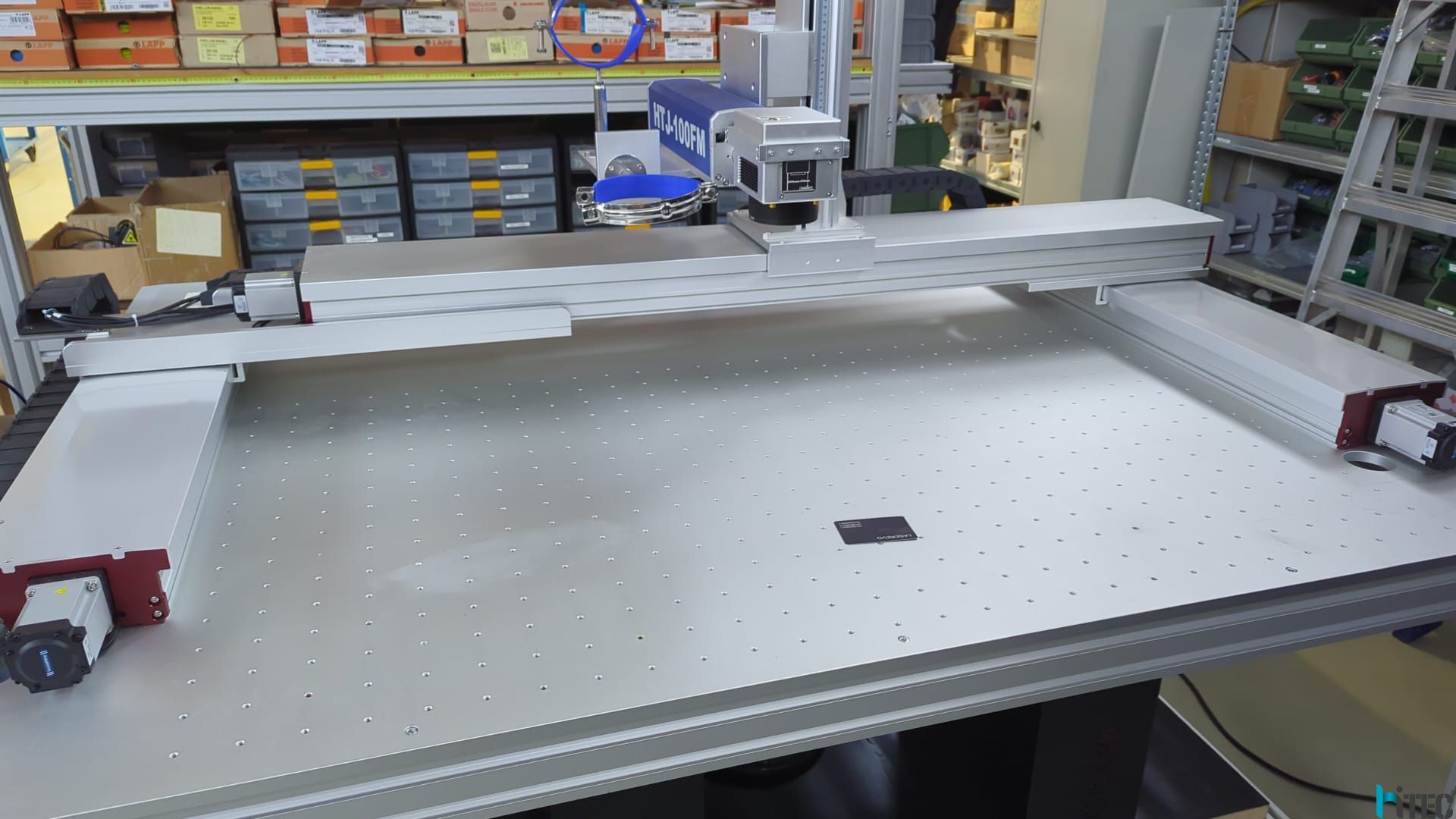

Italy customer use HITEC HTJ-6090D engraving on aluminum plate
Parameters of Fiber laser marking machine
| Brand | HITEC Laser |
| Model | HTJ-6090D |
| Power | 50W 60W 80W 100W 200W 300W 500W |
| Laser Wavelength | 1064μm |
| Marking Area | 110mm*110mm, optional 70*70mm, 145*145mm, 175*175mm, 200*200mm, 300*300mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.015mm |
| Minimum Character | 0.2mm |
| Repeated Precision | ±0.003mm |
| Controller(Software-EzCAD) | EZCAD3 Software Or Zues software |
| Lifespan of Fiber Laser Source | 100000 hours |
| Focus Spot Diameter | <0.01mm |
| System Operating Environment | WINDOWS XP/7/8 |
| Cooling Mode | Air Cooling |
| Working Temperature | 0℃-40℃ |
| Voltage | 220V/50Hz or 60Hz |
| Power | 500W |
| Price | 5000$-10000$ |
