100W 3D Dynamic Mopa Fiber Laser marking and Cutting Machine for Jewelry Gold Silver

JPT 100W 3D Dynamic Mopa Fiber Laser marking and Cutting Machine for Jewelry Gold Silver, fiber laser marking machine 60W 70W 80W 100w M7JPT for metal 3D relief deep engraving Metal iron, gold, silver (jewelry industry), titanium and other metals Laser cutting

MODEL: HTJ-100F-3D
BRAND: HITEC
VIEWS:

100W 3D Dynamic Mopa Fiber Laser marking and Cutting Machine for Jewelry Gold Silver
100w color laser marking machine
jpt 100w gold laser cutting machine

100w mopa fiber laser marking machine application

Application Materials:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.

Marking depth
3D relief deep engraving on stainless steel, Iron, aluminum, copper, up to 3mm

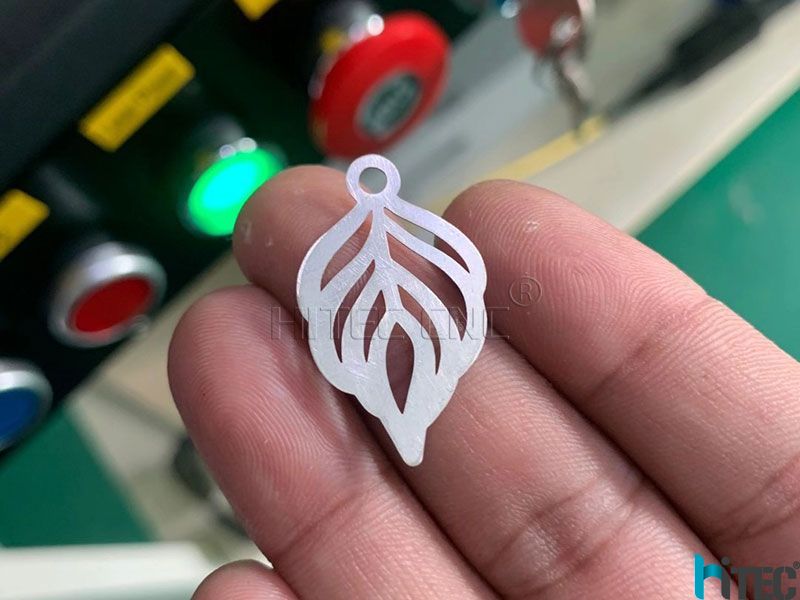

Cutting Cutting jewelry name, necklace,pendant
Sliver, gold, stainless steel, copper, aluminum up to 2mm


Features of 100w fiber laser marking machine
Laser Power: 100W. Marking Area: 110×110mm (4.3×4.3in) Maximum Material Thickness:300mm(11.8in)
Laser Source: MOPA JPT M7+; Repetition Rate Frequency : 1-4000kHZ; Pulse Duration: 2-500ns Program : EZCAD Stable performance and high reliability. Compatible with Windows XP/Vista/7/8/10.
Features:1.Small size. one unit structure and user-friendly operation.2.Double red dots more easy to get focus 3.Maintenance-free and 100 000 hours long life time.
Marking Content:barcodes,serial numbers,text,vector,and logos. Application:Semiconductor and electronics industries

HITEC Laser Marking cutting machine advantage

♦ Application Advantages:
♦ Metal surface processing, peeling coating;
♦ Aluminum black marking;
♦ Semi-conductor&electronics industry applications;
♦ Large area engraving;
♦ Excellent marking effect on plastic or other sensitive material;
♦ Black marking and color marking on stainless steel.

Technical Parameters
Laser Power: 100W
Marking Area: 300*300mm
Laster Source: JPT MOPA M7
Repetition Rate Frequency : 1-4000kHZ@JPT
Pulse Duration: 2-500ns
Output power adjustment range 10%-100%
Marking Speed: 7m/s
Engraving Depth:≤2.0mm
Min. Line Width: ≤0.01mm(Depends on the material)
Min. Character: 0.2mm(Depends on the material)
Input Voltage: 110V-240V/50-60Hz
Complete Power Consumption: 1500W

Parameters

Brand Name HITECCNC
Laser Generator: JPT MOPA 100W
Laser Source Life Time: 100,000 + hours
Standard Working Area: (300 mm × 300 mm)
Marking Speed: up to 7000 mm/s
Laser Wavelength: 1.06 um
Beam divergence: 0.3 mrad
Focused beam diameter: <=20 um
Min. line width: 0.02 mm
Min letter size: 0.15 mm
Marking depth: 0.03-0.08 mm
Power Supply: 110 V / 60 Hz
Cooling: Air-cooled, no extra cooling needed
Dimensions: 72 x 48 x 40
Net Weight:  800 lb
Price Range $3000-$16000

Samples making by 3D laser marking machine

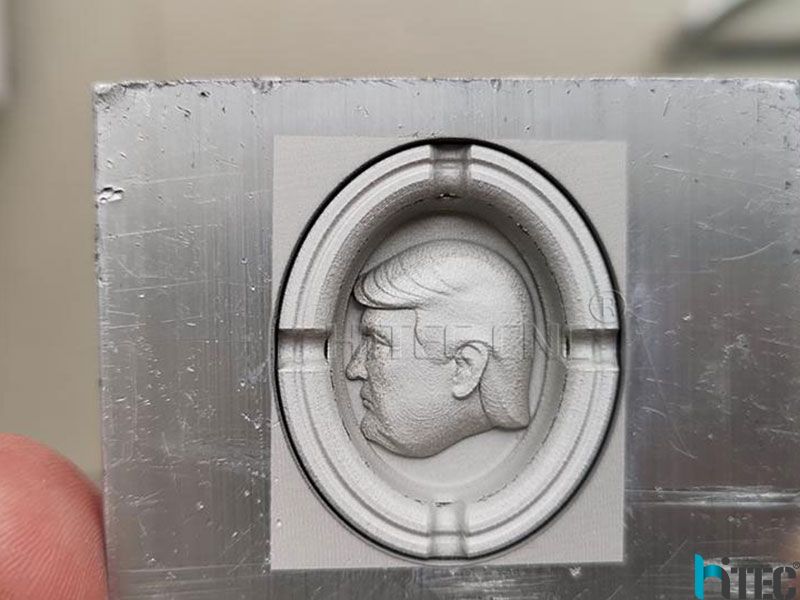

deep metal engraving

100w deep metal markingdeep metal engraving

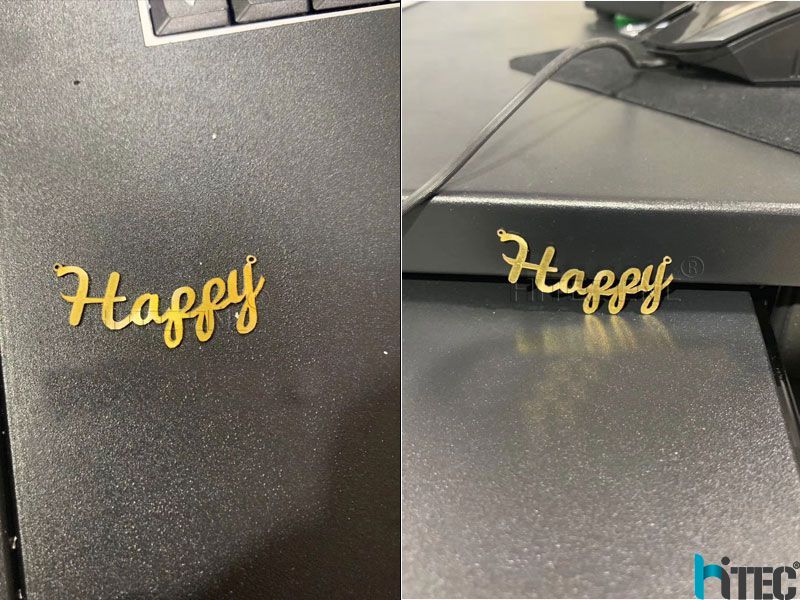

laser marking machine jewelry cuttingsliver laser cutting machine

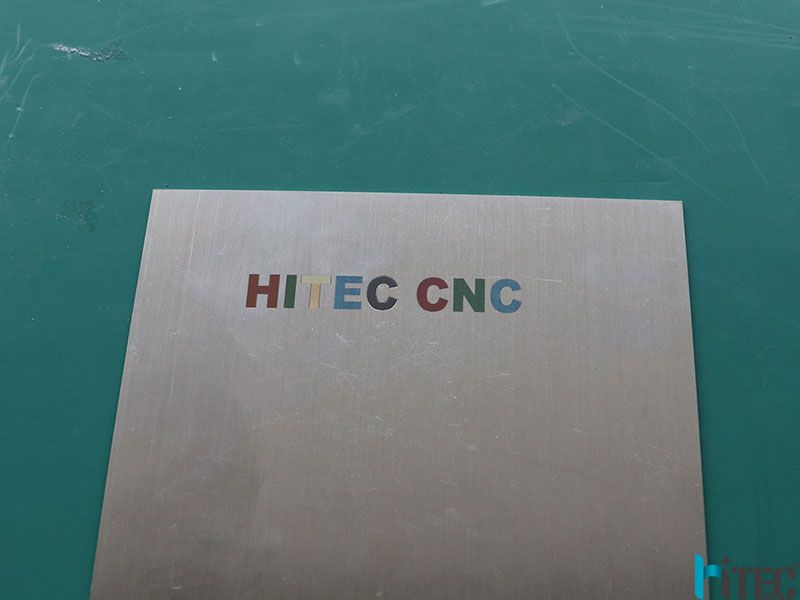

color laser marking machine
Slovenia Customer Feedback
laser marking machine


Warranty
3 year warranty.Remote assistance,Customer and Technical Support.English User Manual and Demo Video offered by USB flash disk along with the machine.Returnable for Non-human-induced Malfunction Machine.
Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm;
