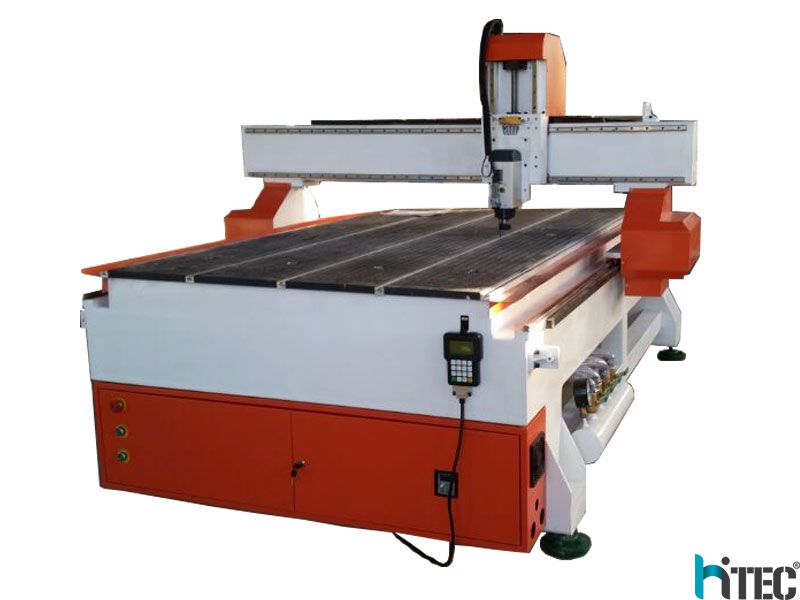

HTM1325 affordable Heavy duty CNC wood router machine for sale
Application of the cnc router machine
- Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Parameters of the cnc router machine
- ►X,Y,Z Working Area:1300x2500x200mm
- ►X,Y,Z Traveling Positioning Accuracy:±0.03/300mm
- ►Table Surface:Vacuum & T-slot Table
- ►Frame:Welded Structure,heavy duty T-structure
- ►X, Y Structure:Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
- ►Z Structure:Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
- ►Max. Power Consumption:2.0KW
- ►Max. Rapid Travel Rate:45000mm/min
- ►Max. Working Speed:30000mm/min
- ►Spindle Power:3KW HSD air cooling spindle(optional)
- ►Spindle Speed:0-24000RPM
- ►Drive Motors:Delta servo motor (optional)
- ►Working Voltage:AC380V/50/60Hz,3PH (Option: 220V)
- ►Operating System:DSP (Options: Ncstudio /Mach3 Software)
| Brand | HITEC CNC® | |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1530×3040mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | T-slot and Vacuum combined table (Option: T-slot combined) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.5Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3.0/4.5/6/7KW |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Stepper system |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSPNK105 (options: Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/Artcam Software |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3700X2250X1970mm |
| 26 | N.W. | 1560KG |
| 27 | Price Range | 3600$-6000$ |
| 28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| 850W Yaskawa/800W Panasonic Servo motors |

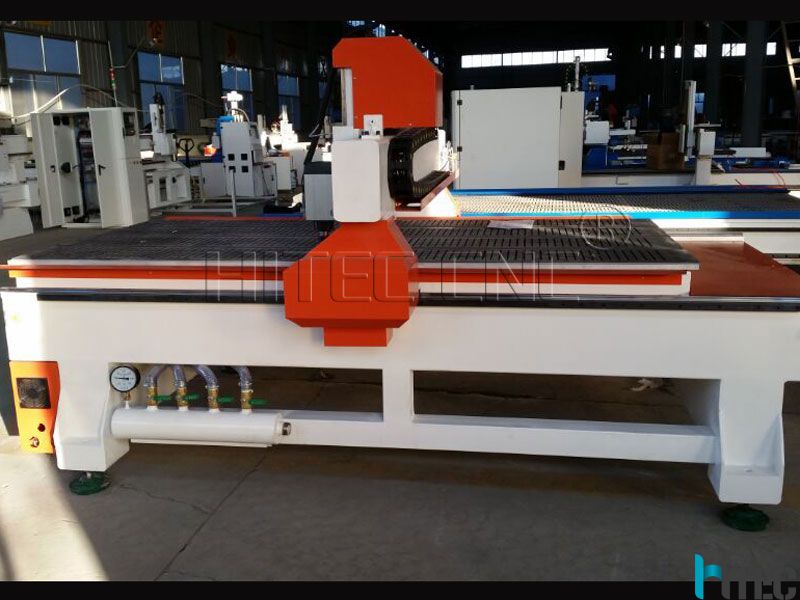

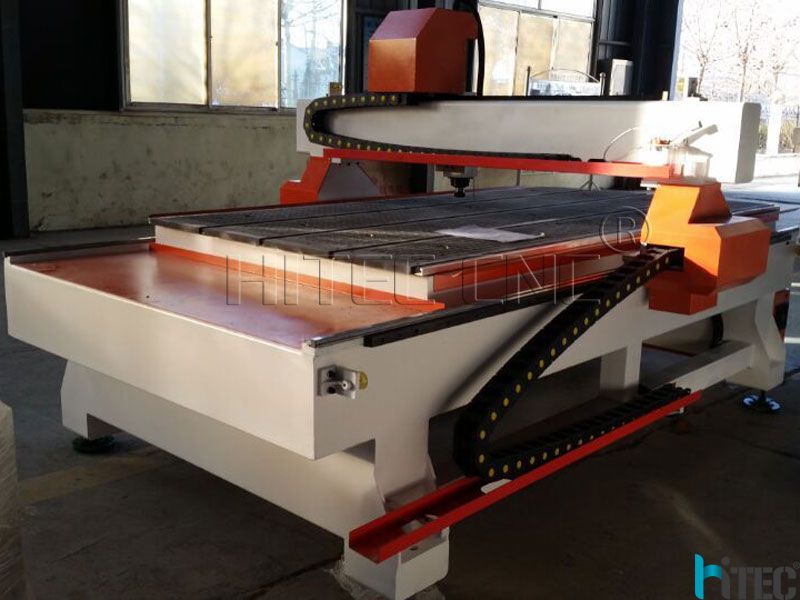

CNC router machine details parts
Cnc Machine Application Samples
1. Delivery and Package:
Generally we will take care of your 3d cnc router machine for woodworking packages well like picture show.
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.
2. Guarantee:
18 months for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
3. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
4. After sales services
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
CNC Machine Customer Feedback

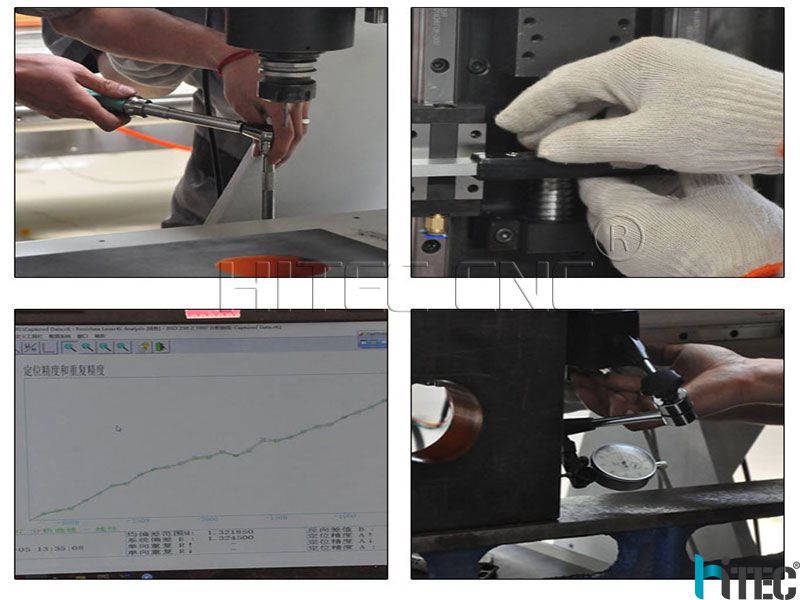

How we guarantee our cnc router quality and precision
Best 2020 cnc router HTM1325E on promotion price, any one interested in this cnc machine, feel free check the below picture
HITEC Hot sale cnc router with rotary table 4th axis
