Enclosed Fiber Laser marking machine for metal and nometal

Enclosed Fiber Laser marking machine for metal and nometal such as Stainless, Silver, Gold , Bamboo, Paper, Plastic, Mood, Glass, PVC, and so on

MODEL: HTJ-30F-Enclosed
BRAND: HITEC
VIEWS:

Enclosed Fiber Laser marking machine for metal and nometal
fiber laser marking machine for metal
Advantage of fiber laser marking machine for metal and nometal

1. Enclosed machine structure, safe doors in internal design, to protect safety of works at maximum extent. Highly sealed cabinet but with with good cooling effect, can be used in every environment.
2. Integration design causes small volume. Can be easily installed. Air cooling.
3. Environmental friendly: No poison and no consumables.
4. Can mark all the graphics created by computer.
5. Permanent marks and strong anti-fake function.
6. Fast marking speed and high efficiency of process.
7. Software operation is easy to learn.


Application Projects

No. Laser Marking Samples of Product Name List I

•  QR Code
•  Aluminum die casting
•  Computer keyboard
•  Bearing
•  Knife – Stainless steel
•  Motorcycle spare parts, metal parts
•  Scale
•  Aluminum plastic panel
•  Stainless steel plate, metal plate

No. Laser Marking Samples of Product Name List II

•  Automobile parts, stainless steel parts, machine parts
•  Steel plate
•  Car light control pole
•  Light switch
•  Electric switch
•  Electric appliance
•  Can date
•  Phone number
•  Metal

Parameters of fiber laser marking machine for metal

Brand HITEC CNC®
Type Enclosed Type
Computer includes PC
IPG Series Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation Pulsed
Polarization random
Nominal average output power 10W - 50W For PEDB-400B
Central emission wavelength 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth
(FWHM)
<10 nm
Long-term average power instability <5%
Pulse width(FWHM) 100 ns
Laser switching ON time 180 μsec
Laser switching OFF time 180 μsec
Pulse Repetition Rate* kHz 20-80 kHz
Energy per pulse (PRR = 20 kHz) 0.95 mJ
Typical beam quality, M2 <1.8
Output fiber delivery length 3m
Operating voltage 220V/110v
Max. Power consumption 600W
Net Dimensions 80*38*72cm
Net Weight 60kgs
Gross Weight 75kgs
Scanning Speed 0-7000mm/s
Marking Speed 0-5000mm/s
Marking size 110mm×110mm (F-theta 160)
Spot size ≤ 40 micron (F-theta 160)
Cooling unit Air cooled
Pilot laser 650nm diode laser, visible red light for marking guide
Continuous working time ≥16h
Humidity 45~85% (no condensation)
Operating temperature 0~40℃
Price Range $4,000-$6,000

Details Parts

1. Automatic Focus for up-down best brand Omron from Japan
laser marking parts

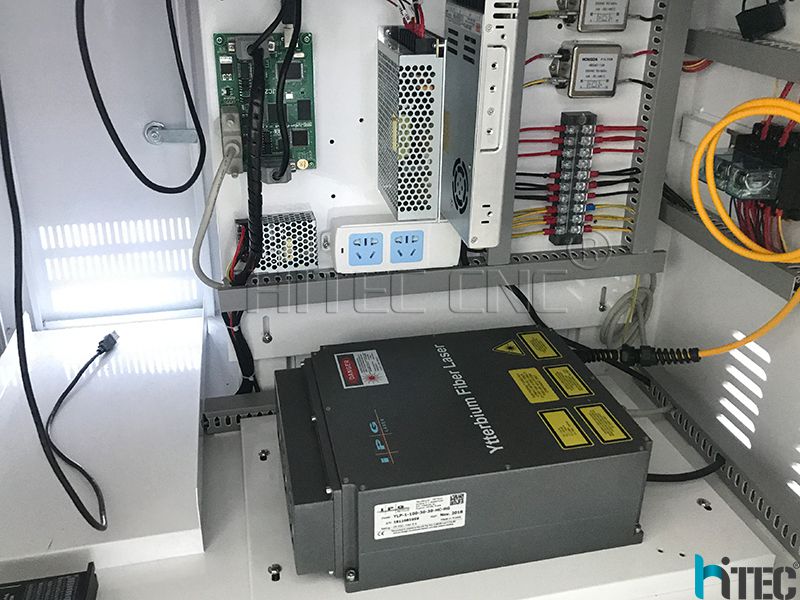

2. IPG laser generator from Germany
IPG laser generator

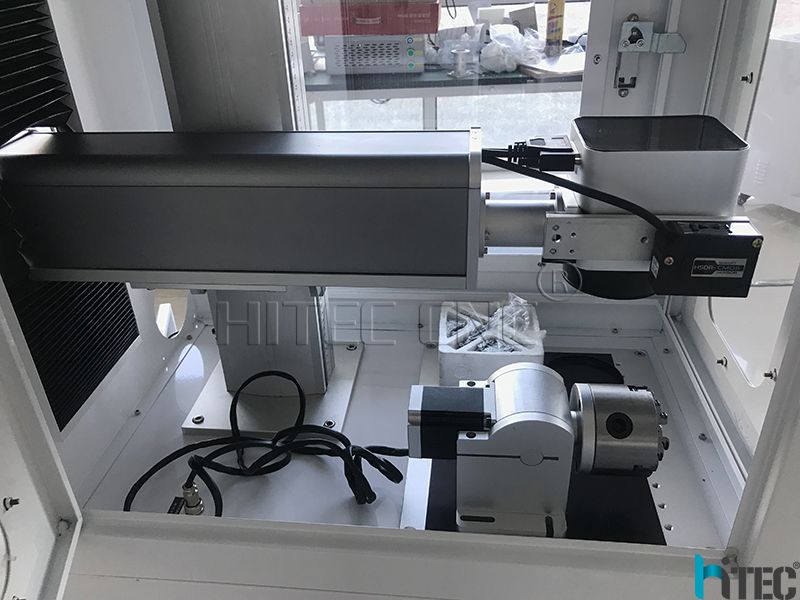

3. Laser Head and Rotary
laser head


4. Enclosed Design

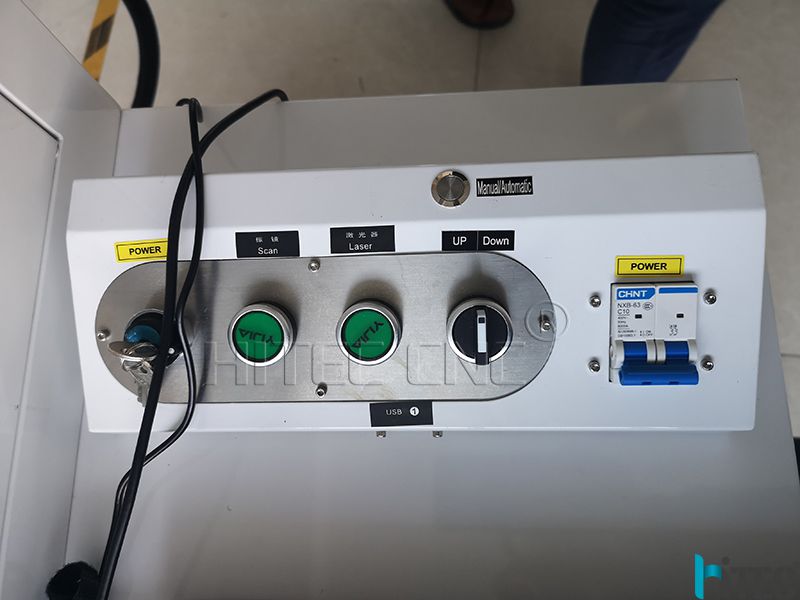

5. Power Switch

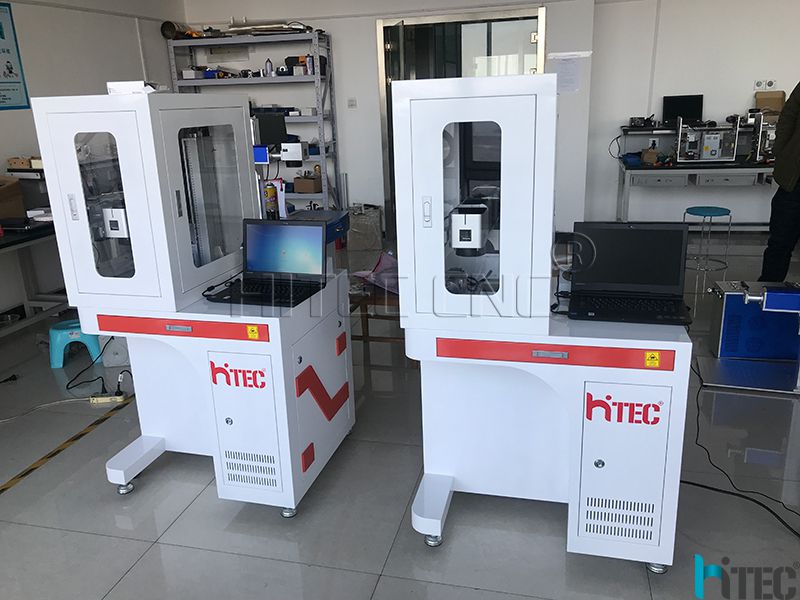

Machine in factory
laser marking machine for metallaser marking machine price

Wooden Package


After-sales Services

1. 3 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
