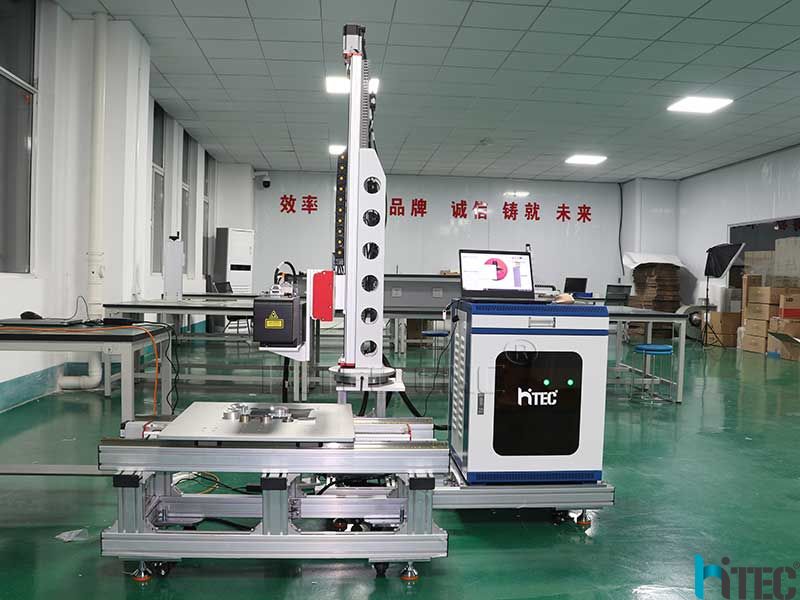

JPT 100W 3D Dynamic laser marking machine with XY slide table for moulding deep engraving

Which kind of job can do by this 3D dynamic fiber laser with XY moving table?
| Process | Function | Example |
| Deep engraving | Mark cavity IDs, part numbers, logos | Mold core, insert, die |
| Texture patterning | Apply micro patterns (sandblast, matte, leather-like) | Plastic injection mold surface |
| Curved surface engraving | Maintain uniform depth on 3D shapes | Die or curved insert |
| Large-area marking | Combine galvo + XY table for full mold plate | 400×400 mm or larger steel plates |
| Brand: | HITEC LASER | |
Recommended machine configuration (for mould engraving)
| Component | Recommended Spec | Notes |
| Laser Source | 50W – 200W fiber (MOPA or Q-switched) | MOPA preferred for texture + grayscale control |
| 3D Galvo Head | 3-axis dynamic focus, | Keep for fine detail; don’t change |
| XY Moving Table | Servo-driven, 400×400 mm stroke, 0.01 mm repeatability | For moving large moulds under galvo |
| Controller | Feeltek brand/ BJJCZ DLC2-M4-3D (EZCAD3) | Supports 3D focus, XY, rotary |
| Z-axis (if manual) | Motorized lift table or autofocus | Heavy moulds need power lift for focusing |
| Rotary (optional) | 100 mm or 125 mm chuck rotary | For engraving round mould inserts |
| Worktable | Heavy-duty cast iron or granite base | Must resist vibration during deep engraving |
| Cooling | Air-cooled OK up to 100W | Water cooling for higher power (≥200W) |
Key benefits for mould industry users
✅ Deep engraving with uniform depth on curved surfaces.✅ Marking large moulds without manual repositioning.
✅ Stable, vibration-free engraving even on heavy metal.
✅ Better texture, pattern, and serial number accuracy.
✅ Suitable for steel, copper, aluminum, and hardened tool steel.

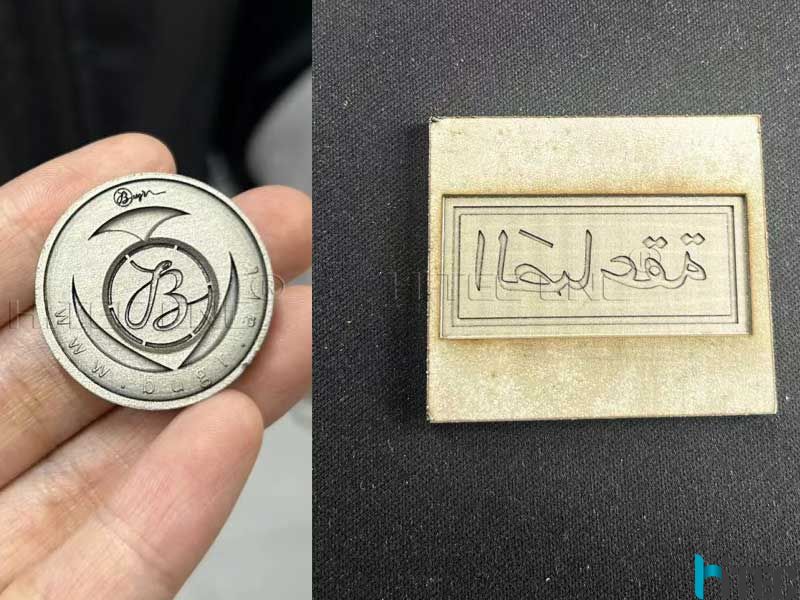

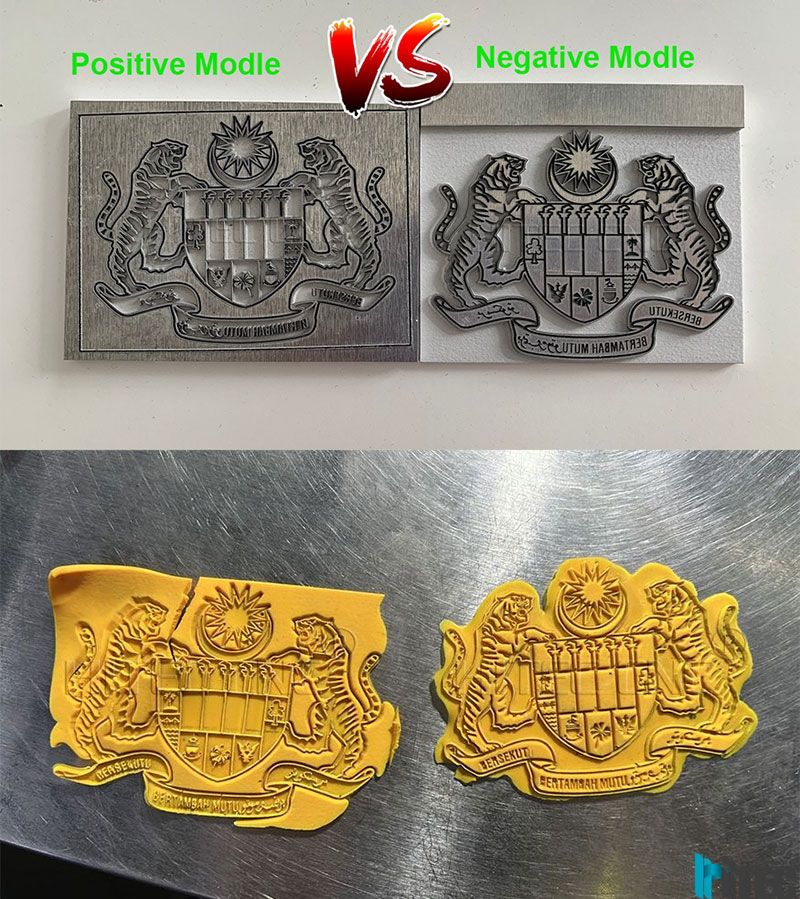

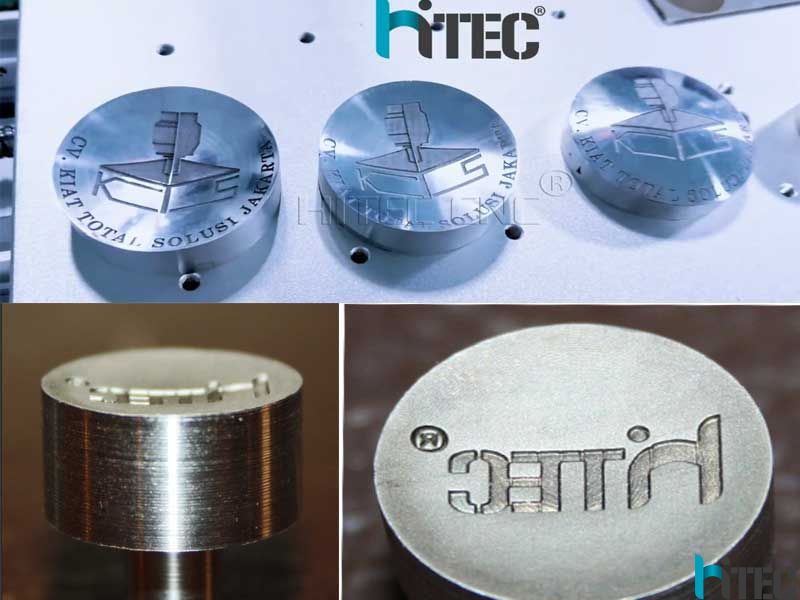

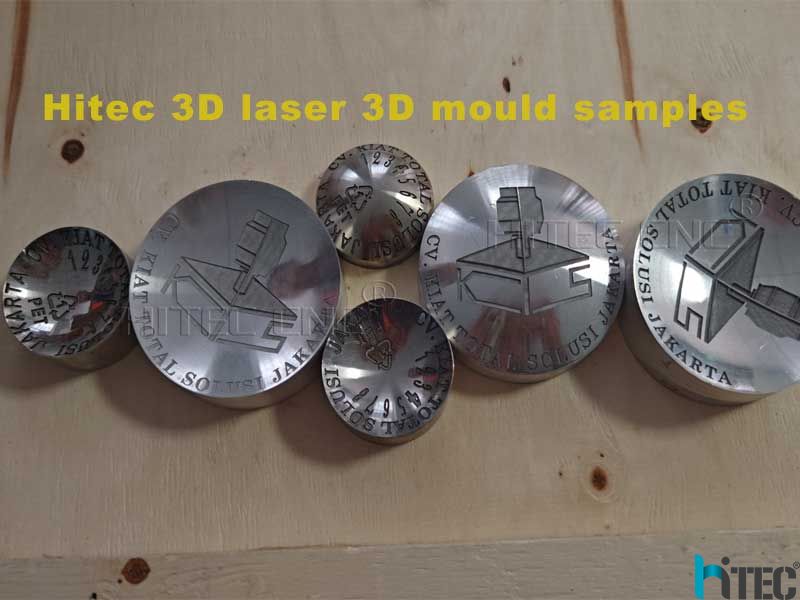

Laser mould deep engraving show
