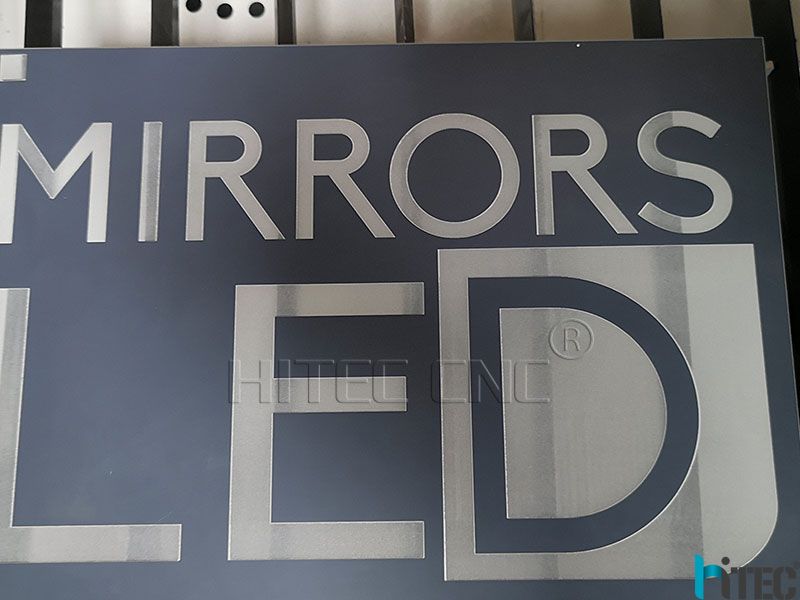

Large size laser engraving glass mirror wall LED Light art
Laser etching and engraving glass produces a permanent mark with a frosted look. Custom Engraved LED Mirrors, Wall Decor, Personalized Gift, Wall Art
What Kind of Items Can You Etch or Engrave With a Laser Machine?
Mirror products (mirrors, glass windows, glass panels, glass doors, glass shower screens)
Wine glasses
Glass beer mugs
Champagne flutes
Wine bottles
Glass plates
Drinking glasses
Decorative pieces made from glass, crystal and hand-blow
HITEC CNC bring a good ideas for large size mirror wall decoration
You can customize your mirror using your laser to engrave or even cut, a design of your choice. The effect of a laser used in creating these types of designs makes them perfect for displays because it produces very smooth and beautiful designs.
The mirror itself is essential to know what type you are working with to get the best results.
There are also different types of mirrors available with various thinness and thickness and you will have to engrave through the material before getting to the actual mirror. You can find a variety of different material types on the back of mirrors. They can be painted, they can be made up of plastic, or even have a special coating. This will affect your Engraving

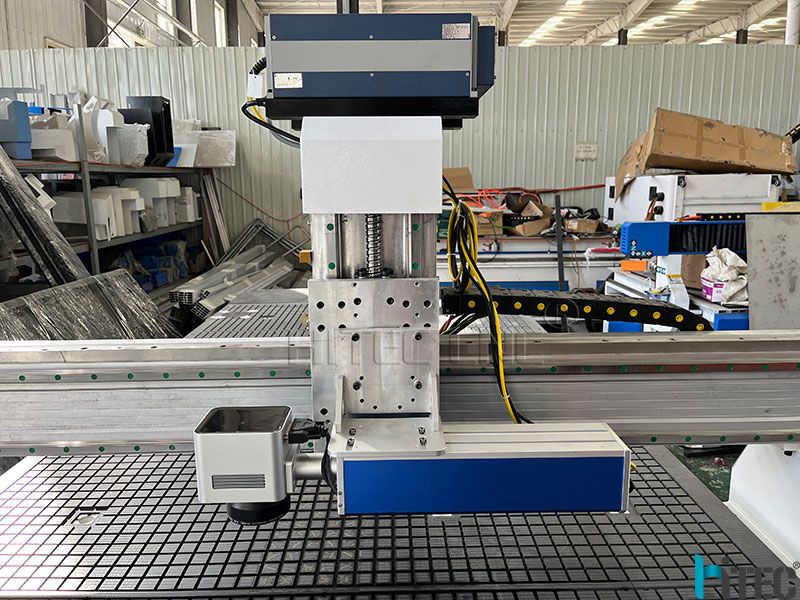

Parameters of laser engraving mirror machine
| sic | Software | EZCAD3.0 | |
| Software Kernel | 64 bits | ||
| Operation System | Windows XP/7/10, 64 bits | ||
| Controller Structure | FPGA for laser and galvo control, DSP for data processing. | ||
| Control | Compatible Controller | DLC2-M4-2D | DLC2-M4-3D |
| Compatible Laser | Standard: fiber Interface board for other types of laser DLC-SPI: SPI laser DLC-STD: CO2, UV, green laser... DLC-QCW5V: CW or QCW laser requires 5V control signals. DLC-QCW24V: CW or QCW laser requires 24V control signals. |
||
| Note: Lasers with some brands or models may need special control signals. A manual is needed to confirm the compatibility. |
|||
| Compatible Galvo | 2 axis galvo | 2 axis and 3 axis Galvo | |
| Standard: XY2-100 protocol Optional: SL2-100 protocol,16 bit,18 bits, and 20 bits galvo both digital and analogical. |
|||
| Extending Axis | Standard: 4 axis Control (PUL/DIR Signals) | ||
| I/O | 10 TTL Inputs, 8 TTL/OC Outputs | ||
| CAD | Filling | Background filling, annular filling, random angle filling, and cross filling. maximum 8 mixed fillings with individual parameters. |
|
| Font Type | Ture-Type font,Single-Line font,DotMatrix font,SHX font... | ||
| 1D Barcode | Code11, Code 39, EAN, UPC, PDF417... New types of 1D Barcode can be added. |
||
| 2D Barcode | Datamatix, QR Code, Micro QR Code, AZTEC CODE, GM CODE... New types of 2D Barcode can be added. |
||
| Vector File | PLT,DXF,AI,DST,SVG,GBR,NC,DST,JPC,BOT... | ||
| Bitmap File | BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF... | ||
| 3D File | STL, DXF... | ||
| Dynamic Content | Fixed text, date, time, keyboard Input, jump text, listed text, dynamic file data can be sent via Excel, Text file, serial port, and Ethernet port. |
||
| Other Functions | Galvo Calibration | Internal calibration, 3X3 point Calibration and Z-axis calibration. |
|
| Red Light Preview | √ | ||
| Password Control | √ | ||
| Multi-File Processing | √ | ||
| Multi-Layer Processing | √ | ||
| STL Slicing | √ | ||
| Camera Viewing | Optional | ||
| Remote Control Via TCP IP | √ | ||
| Parameter Assistant | √ | ||
| Stand Alone Function | √ | ||
| Gradual Power UP/Down | Optional | ||
| Gradual Speed UP/Down | Optional | ||
| Industrial 4.0 Laser Cloud | Optional | ||
| Software Library SDK | Optional | ||
| PSO Function | Optional | ||
| Typical Applications |
2D Laser Marking | √ | |
| Marking on The Fly | √ | ||
| 2.5D Deep Engraving | √ | ||
| 3D Laser Marking | √ | √ | |
| Rotary Laser Marking | √ | ||
| Split Laser Marking | √ | ||
| Laser Welding with Galvo | √ | ||
| Laser Cutting with Galvo | √ | ||
| Laser Cleaning with Galvo | √ | ||
| other laser applications with Galvo. | Please consult our sales engineers. | ||
More details of hitec laser marking machine
