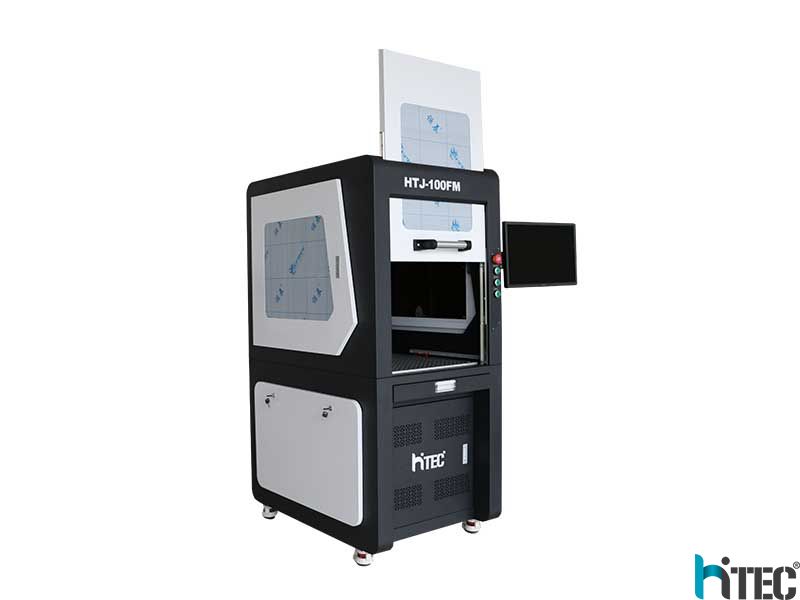

100w fiber laser marking machine with fully enclosed design for jewelry

JPT IPG 100w fiber laser marking machine with fully enclosed design for gold silver copper cutting Fiber laser marking machine can normal surface marking, deep engraving and sheet metal cutting

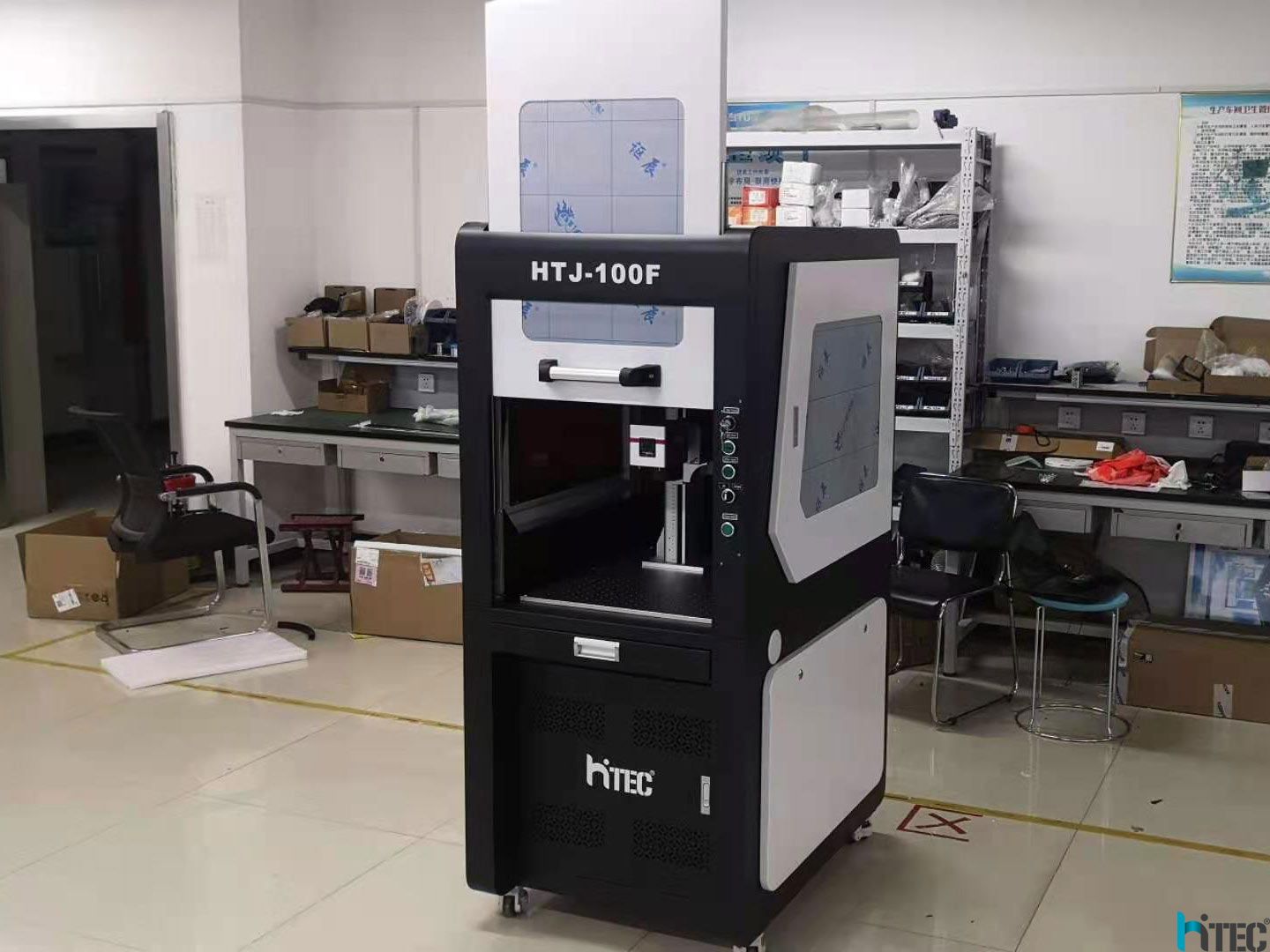

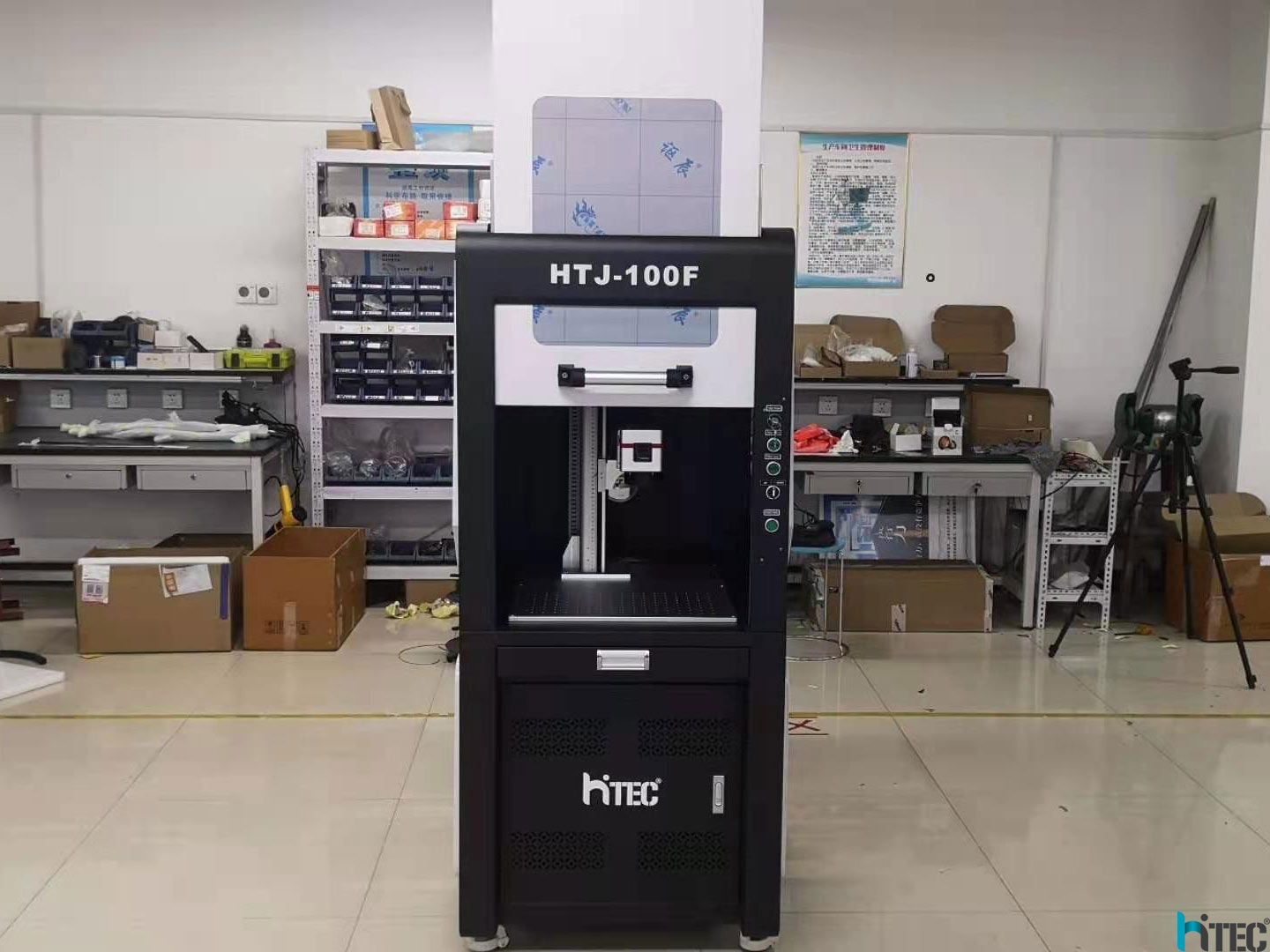

MODEL: HTJ-100F
BRAND: HITEC
VIEWS:

100w fiber laser marking machine with fully enclosed design for jewelry



Some of the important key factors of laser engraving technology are precision, speed, quality, cost reduction, etc.

Applied Materials

1. Metal: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.

2. Non-metal: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.

Technical Parameters of 100w fiber laser marking machine:

                                   100w Fiber laser marking machine
Item
Core parameters
Configurable parameters
Engraving area
Applicable materials
Power
1
110x110mm
Metal
Plastic
Crystal

20w
30w
50w
70w
100w
2
200x200mm
3
300x300mm
Related name
laser marking machine, fiber laser marking machine, metal fiber laser marking machine, enclosed fiber laser marking machine, laser marking machine 50w
4
Marking Depth
≤1mm
5
Marking Speed
7000mm/s
6
Minimum Line Width
0.015mm
7
Repeated Precision
±0.003mm
8
Controller (Software--EzCad)
JCZ from China
9
Beam Quality
M2 <1.6
10
Focus Spot Diameter
<0.01mm
11
System Operation Environment
Windows XP / Windows 7 / Windows 8
12
Cooling Mode
Air cooling--Built-in
13
Temperature of Operation Environment
15℃~35℃
14
Voltage
220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
15
Power Requirement
<500W
16
Package Size
770mm*470mm*770mm
17
Net Weight/ Gross Weight
60KG/ 65KG
18
Optional (Not free of charge)
Rotary Device, Moving Table, other customized Automatic Matching System
19
Machine price

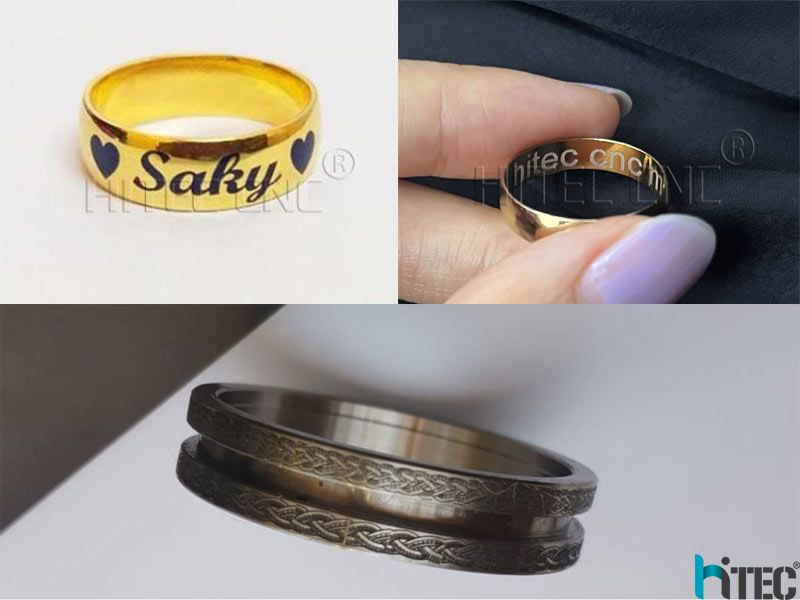

Samples Making by Our Fiber Laser Marking Machine
jewelry cuttingjewelry cutting



Tag:  100w fiber laser marking machine  fully enclosed design machine  jewelry cutting  gold silver copper cutting
