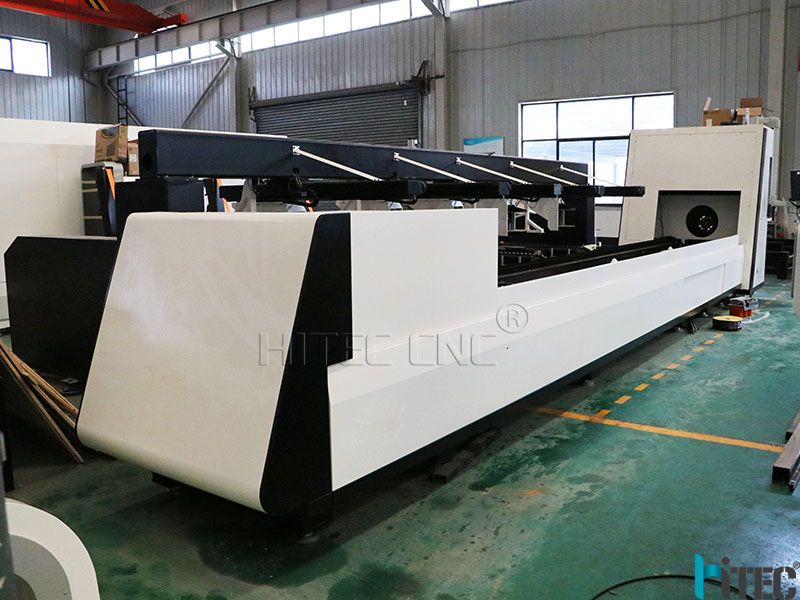

Pipe Fiber laser cutting machine
With laser Tube, the software with an integrated esign module for excellent production reliability and accuracy, you can process even complex tube designs with great efficiency and speed.
Application Industries
Laser pipe cutter is applied in rail transit, automobile, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, Kitchenware and bathroom, decorative advertising, laser processing services and other machinery manufacturing and processing industries.
Various Pipe Cutting
Support round pipe, square pipe, U - shaped pipe, rectangular pipe and other different shapes of pipe. Adopt the special
pipe cutting system, realized the layout of parts, common side, build-up welding cutting and other special processing.
Most Advantage of hitec pipe fiber laser cutting machine
Pneumatic Chuck Clamping
1.Flexible and adjustable, improve efficiency.
2.Suitable for various shapes of tube.
3.More safe,easy to install, saving manpower, less Consumption,less costs.
4.Optional 3m or 6m tube cutting.
Auto Focus Laser Cutting Head
Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

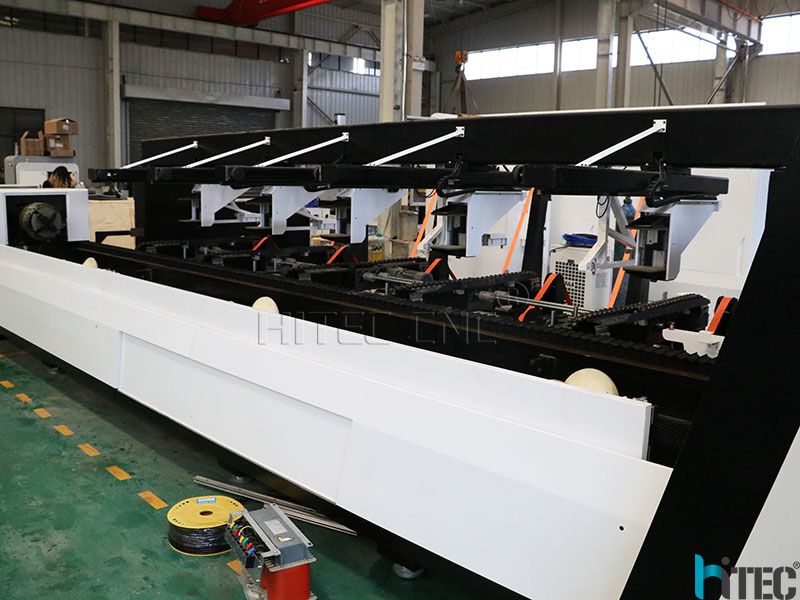

Full-automatic feeding and unloading material device
Automatic Feeding
Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
Automatic Unloading
The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.
Technical sheet
| Machine model | HT-60M |
| Laser power | 1000W 2000W 3000W 4000W 6000W (Optional) |
| Dimensions | 12694*5345*2638mm |
| Working area | Hold diameter: Φ20mm-Φ300mm |
| Repeat positioning accuracy | ±0.02mm |
| Maximum speed | 1.5G |
| Max. acceleration | ±0.02mm/m |
| Voltage and frequency | 380V 50Hz/60HZ |
Application Samples
