High speed gantry moving 1500&900mm RF Metal Tube Co2 Galvo laser engraving and cutting wood mdf

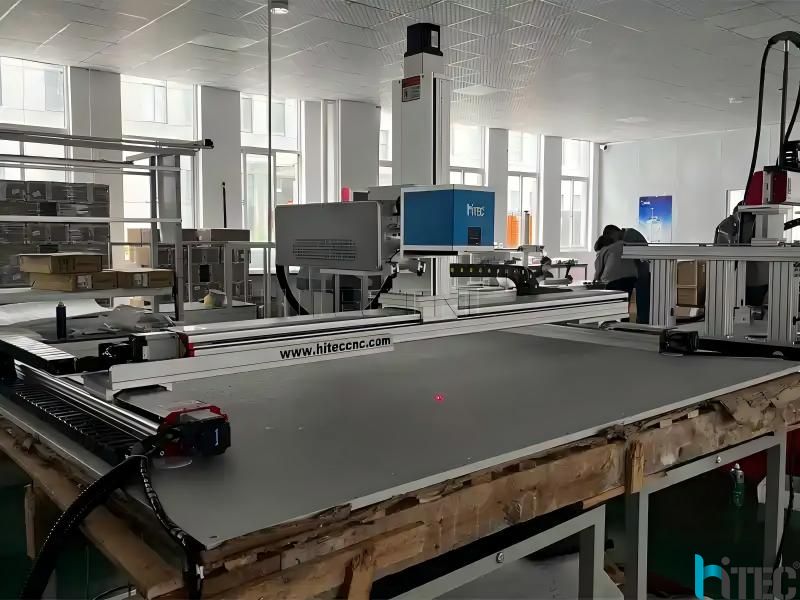

Whats the gantry moving co2 laser?
A large-size gantry moving CO₂ laser marking machine uses a CO₂ laser (typically 30W to 60W) and a gantry-style motion system (like a CNC) to move the laser head across a wide working area. This setup allows the laser to mark or engrave on large, flat materials that remain stationary while the laser moves over them.
When marking size more than 300*300mm, We can custom the electric movable Gantry XYY, XY, X axis worktable for fiber laser marking machine. Popular application for engraving cutting logo or text on large format wood, mdf, leather, foam, pvc, plastic, paper ect nonmetal
HITEC Laser Can Customize Movable Electric X Y Z -Axis
XYY Bed Size : 400&400mm, 600x600mm,600&900, 1000x600mm,1200&1200, 1500x1000mm etc.XY Worktable Size : 300x300mm, 400x400mm,500x300mm, 800x300mm, 1000x300mm etc. 1500&1500mm
X Worktable Size : 300mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm etc.
Parameters of Gantry moving RF metal tube co2 laser marking machine
| Product Name | HTJ-1590Pro |
| Marking Area | 1500&900mm |
| Minimum Character | 0.15mm |
| Maximum Marking Depth | 1mm |
| Minimum Linear Width | 0.01mm |
| Work Table | Fixed aluminum |
| Condition | New |
| Place of Origin | China |
| Laser Type | CO2 Laser |
| Laser Source | DAVI 60w |
| Laser Frequency | 0-25 KHz |
| Computer System | WINDOWS XP/Win7/8/10/11 32/64bits(MAC CAN NOT) |
| Control System | BJJCZ Controller |
| Control Software | EZCAD3 oe ZUES |
| Total Power | 500W ( AC220V 50Hz /AC110V 50Hz) |
| Marking Speed | 800mm/s |
| Wave Length | 10.55 um -10.63 um |
| Cooling Mode | Air Cooling |
| Weight | 150 kg |
| Lifetime | 20,0000 working hours |
| Warranty | 2 years |
| After Sale Service | Online support, Video technical support |
| After Warranty Service | Video technical support, Online support, Spare parts |
| Warranty of core components | 2 years |
| Applicable Materials | Bamboo products, wood, paper ABS PVC epoxy resin, acrylic, leather, glass, architectural ceramics, rubber, etc. |

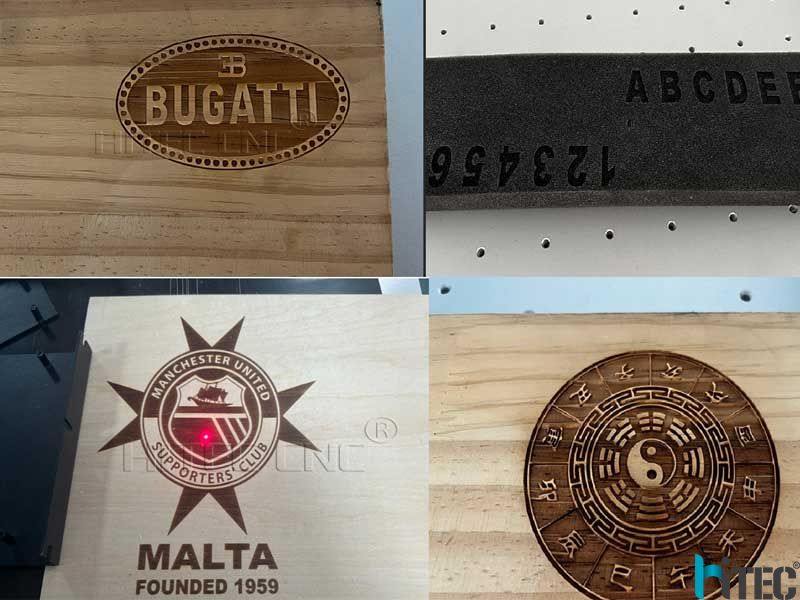

Samples of Co2 laser marking machine
