cnc router machine for wood

cnc router machine for wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal material

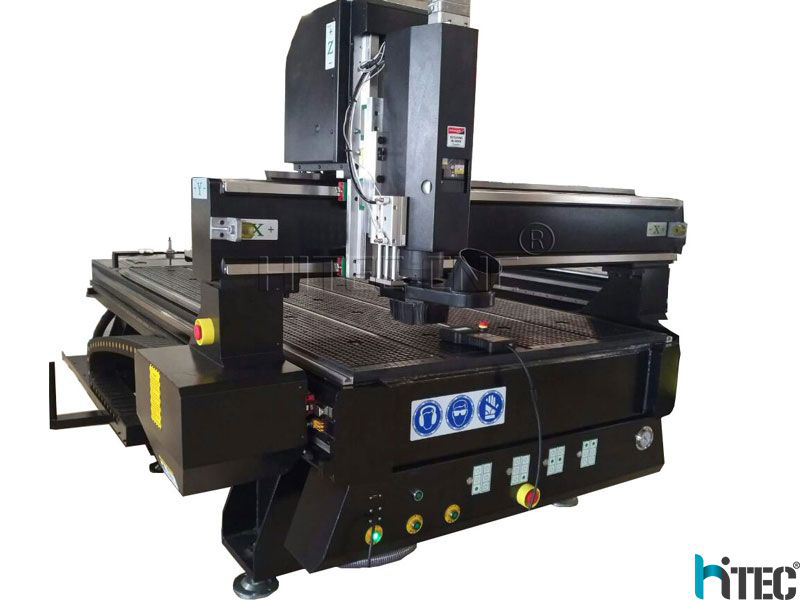

cnc router machine for wood
cnc router machine for wood application

1)Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2)Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3)Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
4)Relief sculpture and 3D engraving.
5)Cylindrical object

Features of the cnc router machine for wood
♦ Original Italy HSD spindle 4.5Kw ,very powerful and top quality
♦ Japan YASKAWA servo system 1Kw, powerful,precision and durable
♦ Heavy duty frame and gantry, 8-12 mm
♦ rapid running speed: two axes are rack gear, fast speed and high efficience, The highest speed is 45rpm.
♦ Intelligent control: adopting DSP control system.It is very easy to master.

Parameters of our cnc router machine for wood

Model HTM1530C
Working size 1300*2500*200mm
Color Customized
Working Voltage 380V, 3 Phases, 50Hz
Control system Syntec Control System
Spindle 9kw HSD ATC air cooling spindle
Inverter 11kw Delta Inverter
Motor & Driver SIEMENS Servo Motor & Driver
Traveling speed 45m/min
Working speed 25m/min
Auto tool changer magazine Linear
Tool slots 8
Table surface T-slot and vacuum working table with 4 zone
Lubrication system Automatic lubrication system
Gantry structure Gantry moving
Structure Industrial class Square tube Strong structure, not easy to be broken
Transmission X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail Taiwan HIWIN Linear square guide #25
Vacuum pump 5.5kw air type vacuum pump (380V, 3 Phases, 50Hz or optional)
Dust collector 1.5kw new type double packet dust collector (380V, 3 Phases, 50Hz)
Tool sensor Automatic tool sensor calibration

PS:All the working area and specifications can be customized according to your requests.

Samples of the cnc router machine for wood

cnc router machine more details parts

Generally we will take care of your machine packages well like picture show.
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.
24 months for the whole machine. Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
