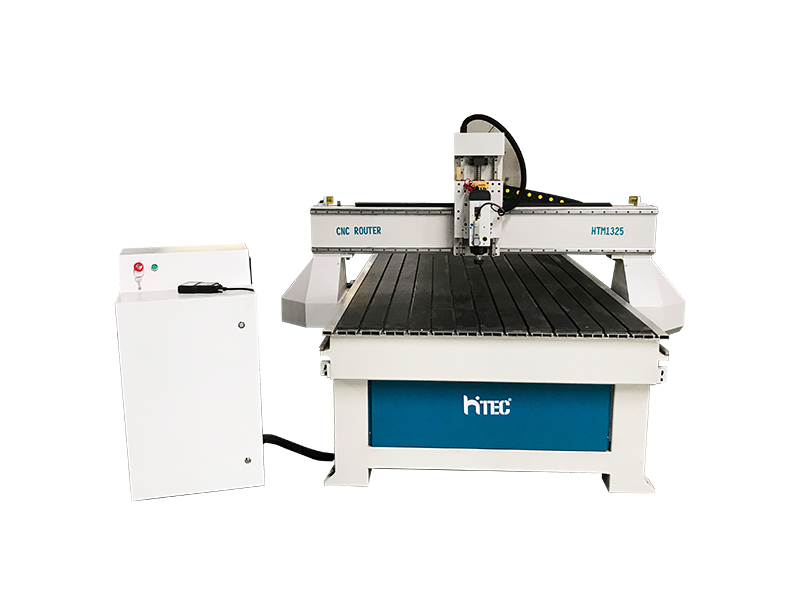

China economic cnc router for sale
High quality china economic cnc router for sale components
1.With 8mm thick steel tube, the machine’s body is strong, high-precision, reliable and durable
2. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3. High-performance drive motor to ensure the machine’s high speed and accuracy.
4. Perfect design, top quality accessories, to minimize the machine’s failure rate.
5. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
6..Well-known HSD spindle 6kw, strong cutting ability, low noise, to ensure the machine working for long time.
Application of the china economic cnc router
1) Wooden door and furniture decoration industry.
2) Wooden crafts processing,Electronic product industry,Instrument industry and EVA processing industry.
3) Acrylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.
Performance Parameter
| No. CHINA HITEC CNC ROUTER FOR SALE |
| Brand | HITEC CNC® | |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1530×3040mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | T-slot and Vacuum combined table (Option: T-slot combined) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.5Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3.0/4.5/6/7KW |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Stepper system |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSPNK105 (options: Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/Artcam Software |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3700X2250X1970mm |
| 26 | N.W. | 1560KG |
| 27 | Price Range | 3600$-6000$ |
| 28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| 850W Yaskawa/800W Panasonic Servo motors |

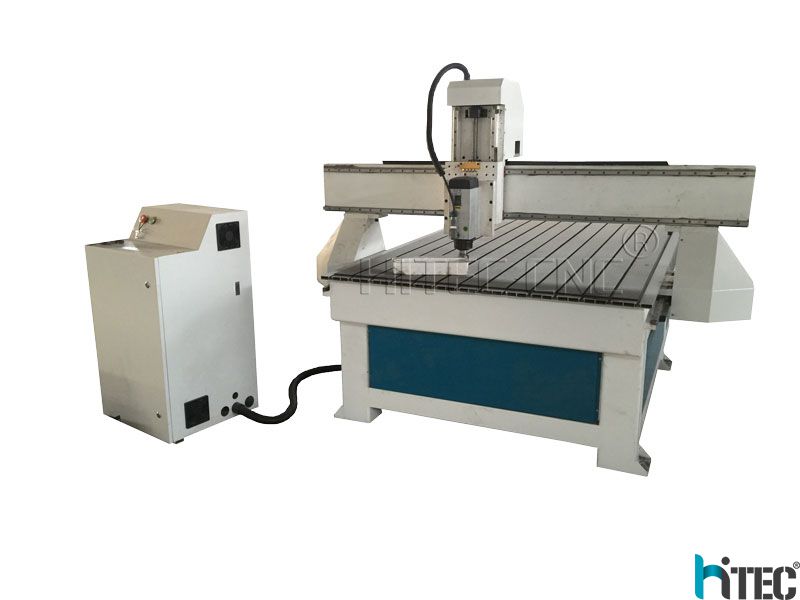

China economic cnc router for sale samples
Hitec cnc after sales service and guarantee
| Guarantee: 18 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period. Service: ( Provide whole life technical support, 24h online ) |
| Before sale: We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free; |
| During sale: We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here; |
| After sale: 1) We would provide English Version working manual. 2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls. 3) Machine warranty is one year. So if your machine has any unintentional damages, we would provide parts for free. 4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix. |
| Maintenance and Technological Support: Whole life |
