High quality ATC 4 axis cnc router machine with HSD swing spindle

4 axis cnc router machine is professional for wood, mould, foam, doors, windows, kitchen decoration etc

MODEL: HTM1325-C Axis
CATEGORY: 4 Axis Cnc Router

High quality ATC 4 axis cnc router machine with HSD swing spindle
best price 4axis cnc router for sale

4 axis cnc router machine standard configuration:

1) working size: 1500*3000*450mm

2) Italy 9.0KW HSD air cooling spindle

3) Taiwan Syntec control system 11Mb

4) Japan YASKAWA 850W servo motors and drivers(X1,Y2,Z1)

5) Z axis motor with brake system

6) Japan SHIMPO big torque planetary reducer (X1,Y2)

7) Germany Rittal control box

8) Taiwan Hiwin 30mm squar guide rails

9) Taiwan Delta 11KW inverter

10) 8pcs circular type tool changer

11) X,Y axis helical gear transmission,Y axis Taiwan TBI ball screw transmisson

12) 8mm thickness heavy duty body

13) Vacuum and T-slot table

14) Yongdun7.5KW oil-less vacuum table

15) Auto tool setting guage

16) Oil lubrication system

17) Filter

Main features:
1) 180 degree (+90 degree) swing spindle can engraving surface very well.

2) We use high quality and import machine parts, like Italy HSD air cooling spindle, Taiwan Syntec control system, Japan Yaskawa servo motor and drivers,HIwin liner bearings etc.

3) Cast iron 8mm machine structure can keep machine high accuracy working after many years, will not deformation.


Working  Area (X*Y*Z) 1300mm*2500mm*900mm
Table type Vacuum + T-slot working table (8 vacuum zones)
Spindle 9kw italy HSD air-cooling spindle
Spindle cooling system Selfcooling for aircooling ATC spindle
Spindle rotating speed 1-24000rpm
Inverter Taiwan 11kw Delta frequency Inverter
Vacuum pump 11kw air vacuum pump for table
Too changer system 10 pcs tools , ISO 30, ER32
Control System Taiwan Syntec Control system,6MB with USB and ethernet LAN+MPG remote handle wheel
Motor and driver X axis Japan Yaskawa 850w servo motor and driver
Y axis Two Japan Yaskawa 850w servo motor and driver
  A axis With 4th axis
Transmission system X axis Taiwan HIWIN 30mm linear guide rail and Helical gear rack and pinion drive
Y axis Taiwan HIWIN 30mm linear guide rail and Helical gear rack and pinion drive,double guide rails for Y aixs on each side
Z axis Taiwan HIWIN 30mm linear guide rail and TBI ballscrew
XYZ axis traveling position accuracy ±0.01mm
XYZ axis traveling reposition accuracy ±0.01mm
Max traveling speed 60000mm/min
Max working speed 32000mm/min
Collets 3.175mm/6mm/12.7mm
Software Artcam,Ucancam, type3,coreldraw autoCAD
Frame Heavy duty machine frame, adopt 12mm square steel
Commend languages G code, bmp,ai,plt,gxf,dst,cdr
Working environment 0-45 degree, 5-95% humidity
Dust collector 5.5kw dust collector
Limit switch Omron electric limit switch and Machinery switch
lubrication system Automatic lubrication system
Control box Professional big control box, with the air condition
Packing size 4100*2280*2200mm
Power source AC380v/220v ±10%,50/60Hz
Warranty 18 month with 24 hours on-line technical support
Net weight 3000kgs
Price Range 5000$-30000$

4axis cnc router machine is papplied in wood, or other material, such as:mould, foam, doors, windows, kitchen decoration etc.

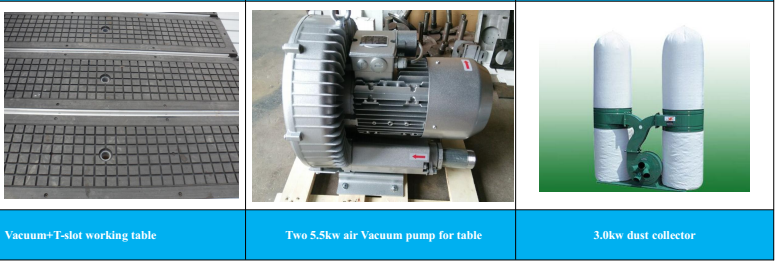

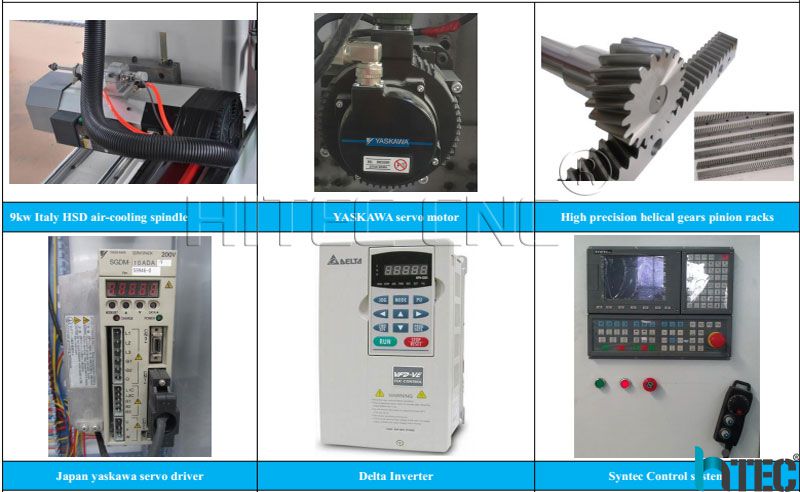

Details parts of the 4axis cnc router machine

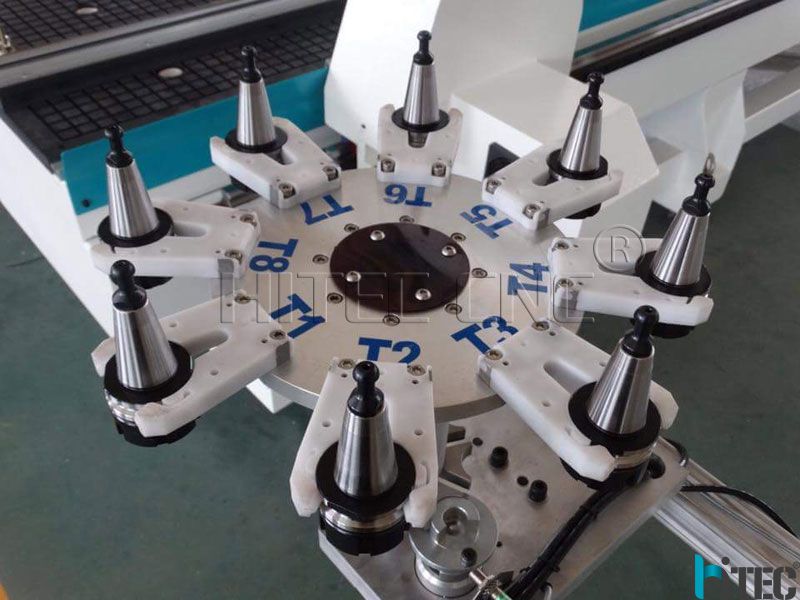

automatic tools changer cnc router
4axis cnc router parts

ATC 4xis cnc router machine samples
4axis cnc router for woodworkingfoam cutting cnc router3d cnc router woodworking
mdf cutting 4axis cnc router samples

What's the 4axis cnc router machine can do?

1. Mould: wood, wax, wood, gypsum, foams, wax.
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
