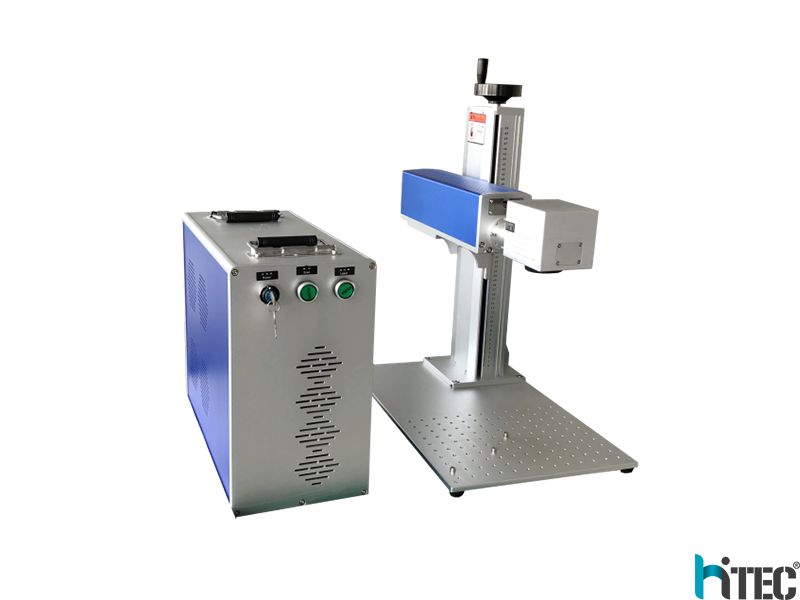

20w fiber laser engraving machine for color marking

20w fiber laser engraving machine for color marking on stainless steel and titanium, Laser marking logo, text, figure, photo, QR code, bar code, serial number, on metal and plastic parts and tools Laser marking stainless steel, brass, aluminum ( iPhone, iPad,Imei ), anodized aluminum, iron, gold, silver, titanium and other metals Laser marking plastic, ABS, acrylic, Nylon, pvc, marble, ceramic etc

MODEL: HTJ-20FM
BRAND: HITEC
VIEWS:

20w fiber laser engraving machine for color marking
laser marking machine color
Advantages of fiber laser engraving machine
1) High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect.
2) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4) High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.
5) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path.
7) Low consumption: < 500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
8) Original JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.
9) High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.
10) Long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs)
11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..
12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
13) Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect.


Features

※ Color marking on stainless steel
※ Metal surface processing, peeling coating
※ Alumina Black marking
※ Semi-conductor & Electronics industry applications
※ Excellent marking effect on plastic or other sensitive material.


Application of 20w fiber laser engraving machine for color marking
Electronic Components:                        Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
Mechanical Parts:                      Bearings, Gears, Standard Parts, Motor, etc.
Instrument:                                  Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools:                      Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts:                     Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
Daily Necessities:                     Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Parameters

Type Portable Desktop Colorful Standby
Computer Includes PC/Laptop Includes PC
Brand                                                                                                                   HITEC CNC
IPG Series Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation Pulsed
Polarization random
Nominal average output power 10W - 30W For PEDB-400A /400B /400C
10W - 50W For PEDB-400D
Central emission wavelength 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth
(FWHM)
<10 nm
Long-term average power instability <5%
Pulse width(FWHM) 100 ns
Laser switching ON time 180 μsec
Laser switching OFF time 180 μsec
Pulse Repetition Rate* kHz 20-80 kHz
Energy per pulse (PRR = 20 kHz) 0.95 mJ
Typical beam quality, M2 <1.8
Output fiber delivery length 3m
Operating voltage 220V
Max. Power consumption 600W
Net Dimensions 70*20*50cm 80*38*72cm 70*20*50cm 143*62*101cm
Net Weight 44 kgs 53 kgs 44 kgs 130 kgs
Gross Weight 60 kgs 70 kgs 60 kgs 200 kgs
Laser system
Scanning Speed 0-7000mm/s
Marking Speed 0-5000mm/s
Marking size 110mm×110mm (F-theta 160)
Spot size ≤ 40 micron (F-theta 160)
Cooling unit Air cooled
Pilot laser 650nm diode laser, visible red light for marking guide
Continuous working time ≥16h
Humidity 45~85% (no condensation)
Control units Laser Mark (English Version)
Price Range 2800$-6000$


Detials Parts
manufacturers of laser marking machines

20w fiber laser marking machine samples

laser marking machine china pricelaser marking machine engraving
fiber laser marking machine
laser marking machine for wood

Wooden Package

Guarantee and After sales service
1) 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) 18 hours on line service and email each day, free technical support.
5) Machine has been adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.
6) If you have any problem during your use.you need our technician to judge where theproblem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.

Gifts for customer
laser marking machine for jewellery

what you might be worried about?
1) Payment
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance

2) Warranty and Service
1.We will provide the consumable parts at an agency price.
2.24 hours multi-language service, free technical support.
3.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.

4.For standard machines, it would be 3-5days; For non-standard machines and customized machines according to client's specific requirements, it would be 7-15 days.
