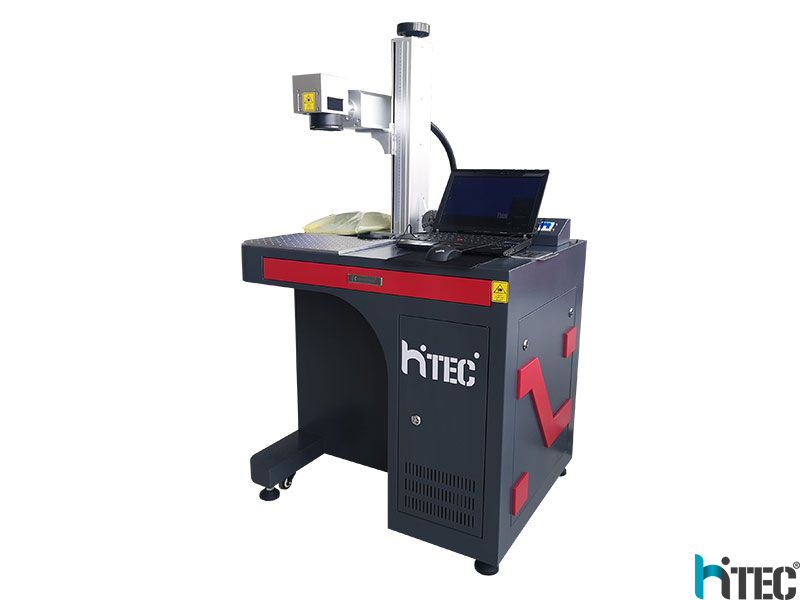

100w fiber laser metal engraver cutter
Advantage of the 100w fiber laser engraver cutter
1. 100 Watt pulse fiber laser marking, cutting machine HTJ-100F designed to be a distributed industry laser solution, the laser machine configured with 100W MAX pulse fiber laser source and original EZcad software, the laser give a fast marking, cutting speed, with high pulse power and power density, the laser opens a new door to metal and plastic laser processing, the expected laser source life time is 100,000 hours, no maintenance required at all.
2. This laser offers a high Z axis in a small footprint, the Z axis height extended to 73cm,good for most of work pieces laser marking. The laser machine could be housed as a desktop computer, extremly convenient.
3. The laser is configured with 300*300mm working area f-theta lens.
4. The EZcad original software CD would be shipped together with the laser, for easier further maintenace purpose, a pen drive with tested software pattern and laser manuals soft copy will also be send, the software in the pen drive copy and use, customers don't have to configure anything for hardware at all.
5. IPG, JPT, Raycus laser source support
Whats the 100w fiber laser metal engraver cutter application?
Deep engraving on steel, brass, aluminum, copper, carbon steel, stainless steel.
♦ Solar & Semiconductor
♦ Bio Sensor Production
♦ Thin Film Polymers
♦ General Marking & Engraving Automotive (Parts and Displays)
♦ ID Cards & Mobile Phones
♦ Jewelry Laser Engraving & Cutting
♦ Medical Devices & Implants
♦ Electronics & Sensors/Instruments Industrial Components
♦ Manufacture of Processed Parts
Parameters of 100w fiber laser metal Engraver
| Brand Name | HITEC CNC |
| Laser Type | Pulse Fiber Laser |
| Wavelength | 1064 nm (Nominal) |
| Beam Diameter (focus) | < 30 µm |
| Pulse Frequency | 1 - 500 kHz |
| Output Power | 20 - 120 Watts |
| Cooling System | Air Cooled |
| Marking Field Size | Variable |
| Focusing Optics | 100, 163, 2541 |
| Profile Laser | Visible, red-beam pilot laser for easy positioning of the work piece |
| Overall Dimensions | 33”L x 37”W x 34”H 838mm x 940mm x 864mm |
| Approx. Weight | 300 lbs / 136 Kg |
| Electric/Manual Door | 29"W x 21"H 737mm x 533mm |
| Electrical Connection | 110 - 230 V (± 10%) 16 A, 50/60Hz |
| Warranty Coverage (Parts & Labor) |
As Quoted |
| Laser Safety Compliance | FDA(CDRH), ISO, CE |
| Country of Origin | Designed & Built in China |
| Price Range | 11000$-22000$ |

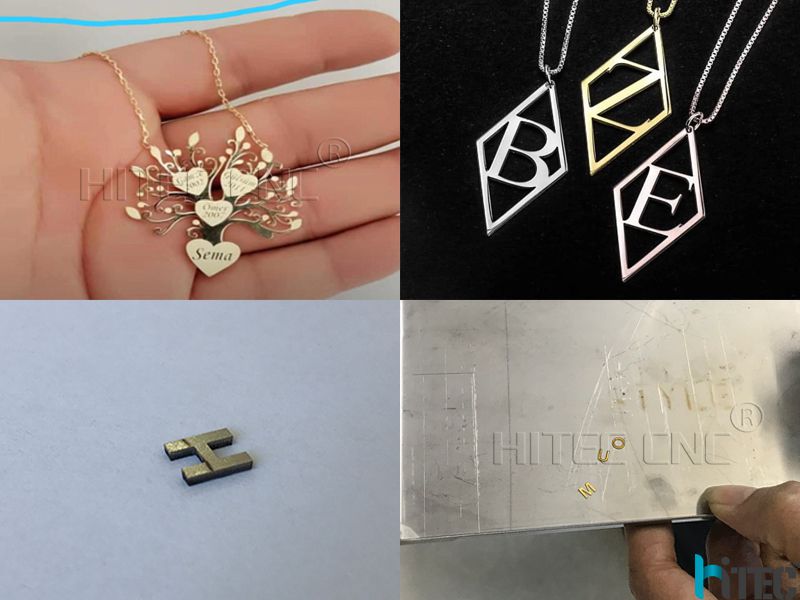

Application of 100w fiber laser

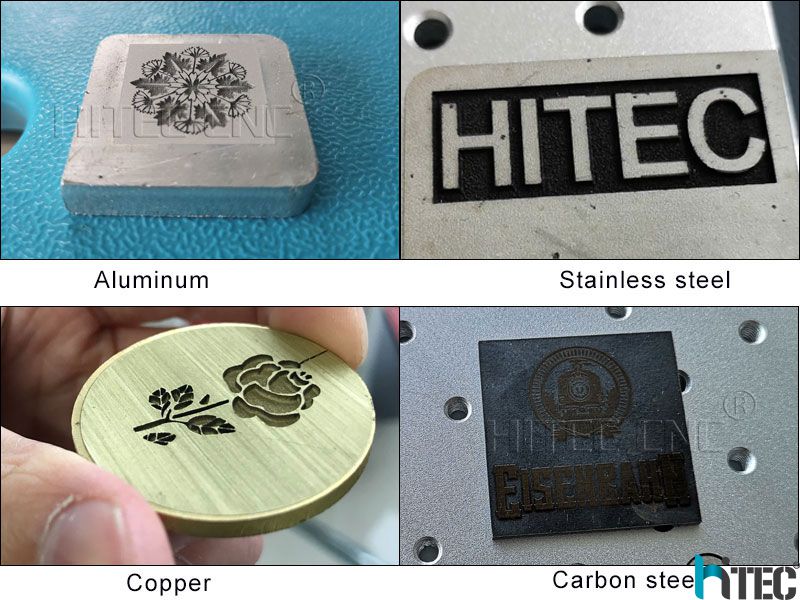

Deep Marking On Metal
100w laser cutter metal
Details Parts of 100w fiber laser engraver
Origional import RONAR-SMITH Field lens
600w high power MW power supply
100w Raycus laser generator
Auto focus
2d cutting table
Dust Fliter
Small rotary for jewelry
Packing List
If you are interested in this machine for your business, Do not hesitate to contact HITEC CNC.
Our Service
Payment terms
► T/T is recomended
► Mastercard ,VISA ,WESTERN UNION ,e-Checking also good.
► Also can via Alibaba trade assurence.
You can choose what you want!!!
Our Services
We have CE and FDA certificate. Our factory locates in shan dong jinan city of China. Welcome to visit us.
1.In the processing of production, our professional technical engineers inspect the processing to esure the quality of products.
2.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
3.3 years guarantee of the whole machine.
4.Main parts shall be changed free of charge if there is any problem during the warranty period.
5.Lifetime maintenance free of charge.
6.We will provide the consumable parts at an agency price when you need replacement.
7.Machine has been adjusted before delivery.
