4axis wood carving cnc router

4axis wood carving cnc router with 2 2kw water cooling spindle,4axis Can working on 2D 3D round materials engraving and cutting

MODEL: HTG6090
BRAND: HITEC
VIEWS:

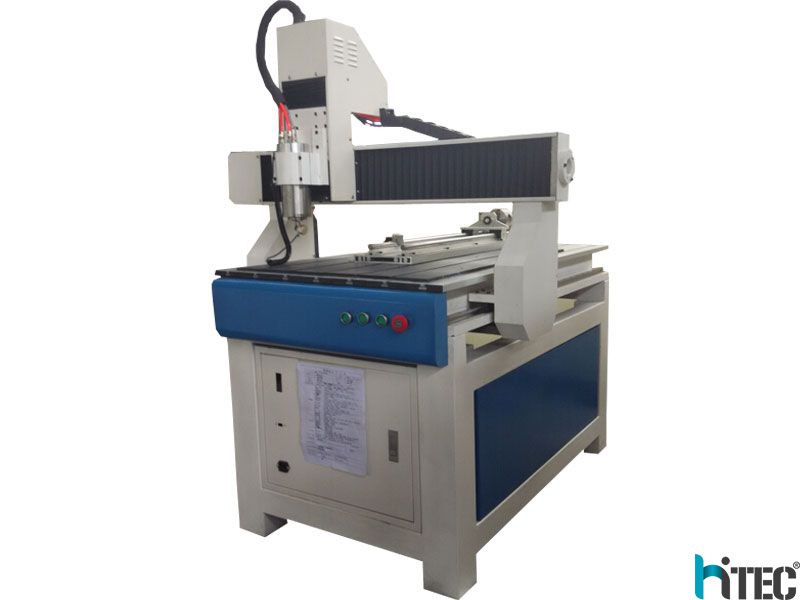

4axis wood carving cnc router
cnc router machine 6090
Description of 4axis wood carving cnc router

1.With Taiwan hiwin or other brand high precision liner square rails.
2.XYZ axis steel frame with T-solt table with wear plate.
3.USB remove control and software-CAM CAD
4.1.5KW 2.2KW water cooling spindle
5.Optical glass for steeper motor 4.2AMPS
6.Technical resolution 0.0025mm
7.Repeatability:0.01mm


Parameters
Brand HITEC CNC®
Machine body Cast iron or cast aluminum
Work dimensions 600×900mm
Body dimensions 800×1200×1200mm
X,Y, Z Structure Linear guide, Ball screw (Y axis double nuts)
Z-zxis working area 100mm
Cut thickness of material 30mm
Max.Speed 6000mm/min
Working speed 0-4000mm/min
Mechanical precision 0.01mm
Software Artcut,TYPE3,ARTCAM
Max.Powwer consumption 1800W
Power source AC 220V/50Hz
Driver type stepper motor
Spindle 2.2KW water cooling spindle
Spindle speed 0-24,000rpm
Blade diameter 1-6mm
Control system Ncstudio(computer control) or
(Optional: DSP black handle control system with USB interface)
Price Rang $1,980-$4000

What are the advantages for the New DSP Control System ?
Independent DSP system, work without a computer.
Insert TF memory card, automatic reading and processing files.
By operate the control box, you can program and carving directly
G-code files can be directly edited, delete, insert, and so on.


Application

4axis wood carving cnc router is with 1605 Ball Screw and 2.2KW VFD, more precise and more steady. It is designed for large area engraving work .The computerized CNC Engraving and Cutting machine is suitable for various materials, such as PMMA, woodor other plastic, MDF board, native wood, PVC, acrylic, wood, composite board plywood. It can be used widely to process or make advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminium alloy, acryplates, ABS resin double color plate, PVC foaming board, indentation plates, signs, etc.


Parameters
Product Name:4axis wood carving machine
Max.thickness of the meterials:≤200mm(the distance between Z axis and the bottom of the working station)
Max.workpiece dimension: 750mm x 950mm
Work table dimension: 750mm x 950mm x 20mm
Stepping motor type: 57 two-phase 3A,super-low noise
Spindle motor: brand new 2200W water cooling spindle, 24000RPM
Principal axis collet: ER11/3.175 collet
Spindle speed: 24000rpm/min (PWM stepless speed regulation)
Empty line speed: 0-4000mm/min
Resetting accuracy: 0.05mm
Engraving accuracy: better than 0.04mm
Spindle precision: radial run out≤0.03mm
Control unit: triaxial one-piece drive + ring variable power + PWM speed
Software environment: Windows 2000/xp
Carving speed: 0-3000mm/min

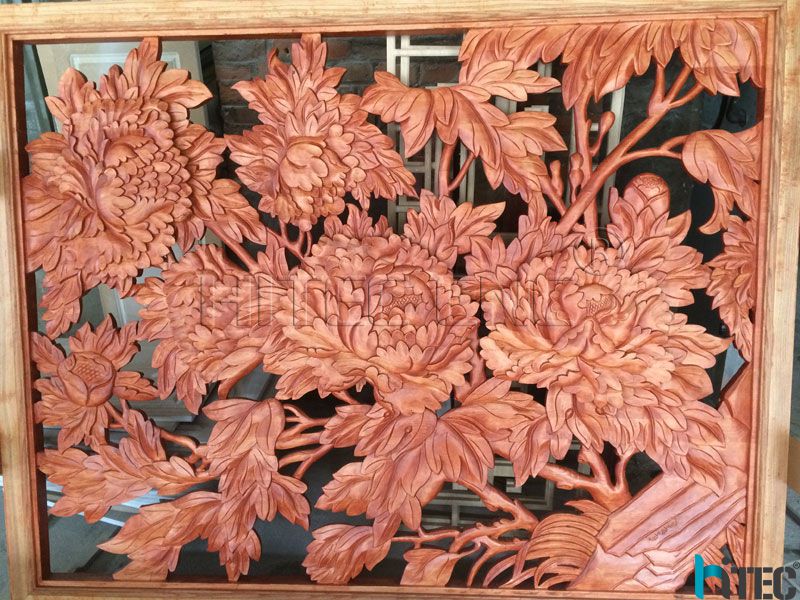

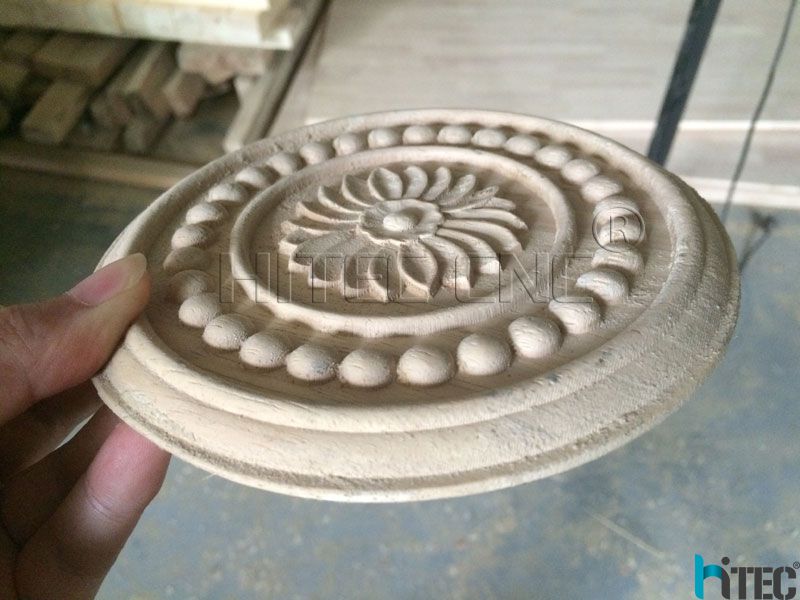

Samples of 4axis wood carving cnc router
4axis cnc wood carving cnc router4axis cnc router with rotary

4axis cnc router machinesamples of 4axis cnc router machine

4axis wood carving cnc router package
woodden package for cnc router

Notice


If you want more powerful spindle,larger working area cnc router,pls find other link in my stock.

Guarantee and After-sale service:
1. 24 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
