| X,Y,Z Working Area |
1300x2500x200mm (Any other working size can be customized) |
| X,Y,Z Traveling Positioning Accuracy |
±0.03/200mm |
| X,Y,Z Repositioning Accuracy |
±0.03mm |
| Table Surface |
Vaccum & T-slot working table |

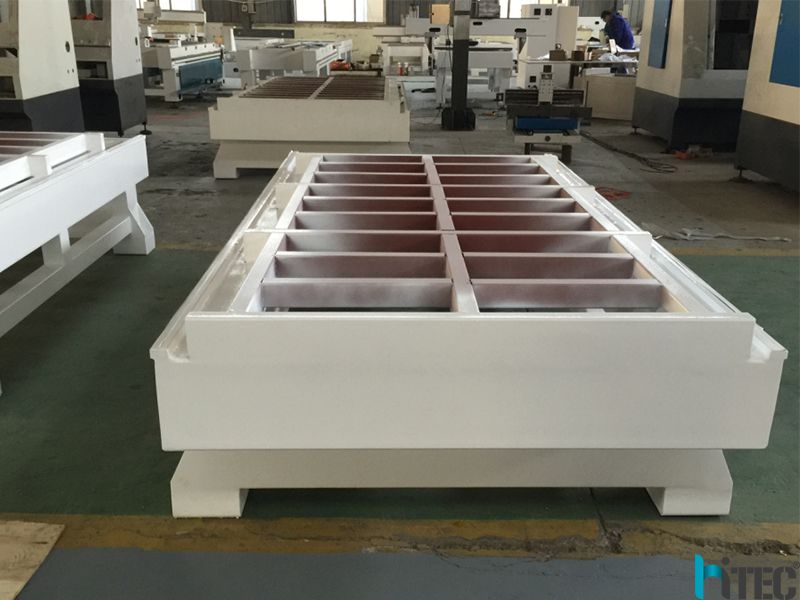

| Frame |
Welded Structure |

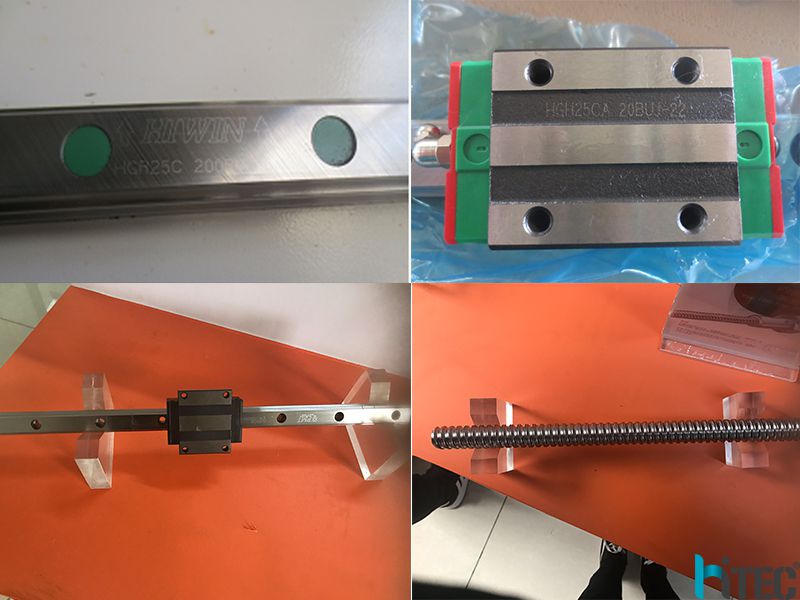

| X, Y Structure |
helical/Oblick rack gear, Taiwan Hiwin linear guide block |
| Machine body |
Heavy duty body 10mm |
| Z Structure |
Taiwan Hiwin Rail Linear Bearings and Taiwan TBI Ball Screw |
| Max. Power Consumption |
(Without Spindle) 5kw~9Kw |
| Max. Rapid Travel Rate |
33000mm/min |
| Max. Working Speed |
25000mm/min |

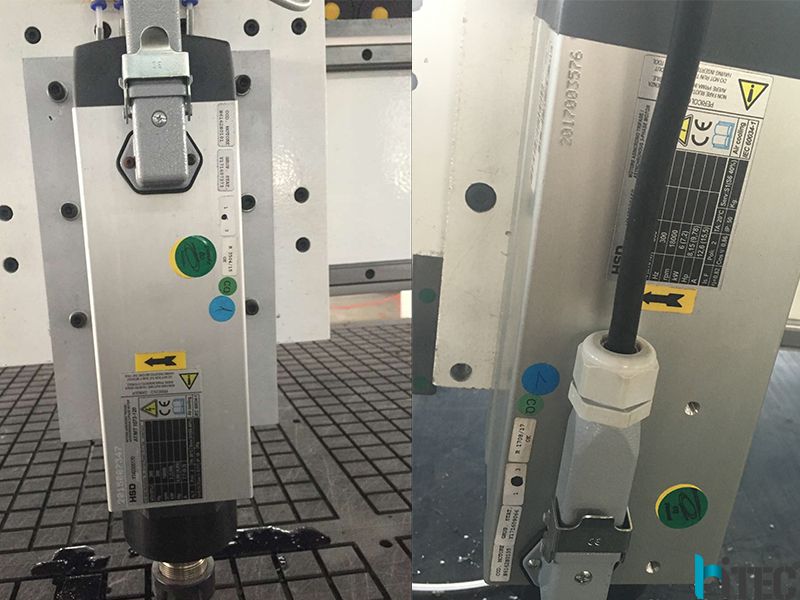

| Spindle Power |
3KW Italy HSD air cooling spindle |
| Spindle Speed |
0-18000RPM |

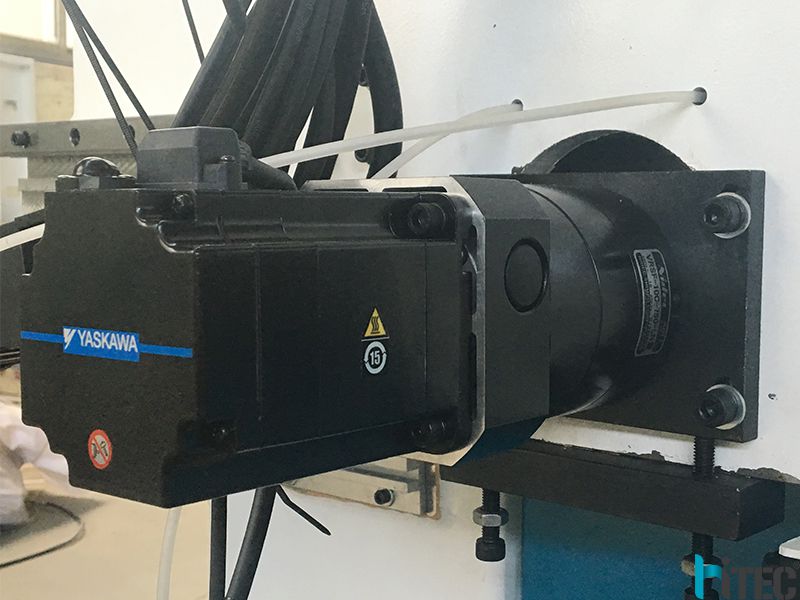

| Drive Motors |
Yaskawa servo motor |
| Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language |
G Code |
| Operating System |
DSP control System (Options: Mach 3/Ncstudio/Taiwan SYNTEC) |
| Computer Interface |
USB |
| Flash Memory |
512M(U Disk) |
| Collet |
ER32 |
| X,Y Resolution |
<0.01mm |
| Software Compatibility |
Type3/Artcam Software(option: Ucancam) |
| Running Environment Temperature |
0 - 45 Centigrade |
| Relative Humidity |
30% - 75% |
