Why Does the Laser Marking Machine Use a Telecentric Lens?
2025-07-19 10:48:54
www.hiteccnc.com

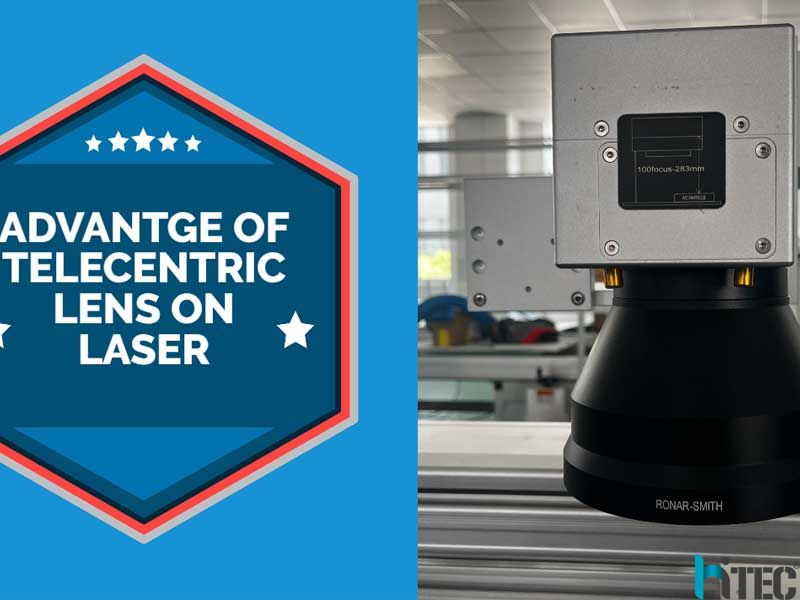

What Is a Telecentric Lens?
A telecentric lens is an optical component designed to maintain consistent magnification regardless of the object’s distance from the lens. In simpler terms, it ensures that rays entering the lens are parallel to the optical axis, resulting in minimal distortion and a uniform image or beam profile across the entire field of view.
Why Use a Telecentric Lens in Laser Marking?
1. Uniform Marking Quality Across the Working Area
Standard lenses can cause distortion, especially at the edges of the marking field. This results in inconsistent line thickness or intensity. A telecentric lens projects the laser beam perpendicularly to the marking surface at all points, which:
Keeps line widths constant
Ensures sharp edges
Produces clean, high-resolution marks
2. Improved Precision and Accuracy
For applications that require micro-text, QR codes, or delicate patterns (like in medical or aerospace industries), even minor deviations can be unacceptable. Telecentric lenses minimize parallax and angular errors, making them ideal for high-precision marking.
3. Minimized Distortion
In a traditional lens, the beam may strike the edges of the work surface at an angle, leading to elliptical distortion. A telecentric lens maintains the same angle of incidence across the entire field, significantly reducing geometric distortion.
4. Better Depth of Field Control
Telecentric systems offer greater depth tolerance, which means even slightly uneven surfaces can be marked more uniformly. This is especially useful for:
Curved surfaces
Slightly warped metal plates
Thick materials with surface irregularities
5. Consistency in Automated Production Lines
In automated or high-speed production lines, components may not always sit perfectly level. A telecentric lens helps maintain consistent marking results regardless of slight variations in positioning—boosting throughput and reducing scrap rates.
Typical Applications
Semiconductor and microelectronics: Extremely fine, distortion-free text and codes
Medical devices: Sterile, high-precision marking for instruments and implants
Automotive parts: Clear, consistent DataMatrix or VIN codes
Tool and die making: Precise logos, numbers, or traceability marks on metal
Is It Always Necessary?
While telecentric lenses improve quality, they do come at a higher cost than standard F-Theta lenses. They are not always necessary for basic or low-resolution marking tasks. Choosing between a standard lens and a telecentric lens depends on:
Required resolution
Material surface flatness
Tolerance for distortion
Application criticality
Conclusion
The telecentric lens is a powerful tool in laser marking systems when quality, precision, and consistency are paramount. By maintaining a perpendicular and distortion-free laser beam, it ensures your marking is as sharp at the edges as it is in the center.
Whether you're marking tiny circuit boards or critical medical components, upgrading to a telecentric lens might be the key to achieving superior results.
