Automatic Pvc film vacuum membrane press machine for wood door

HITEC Automatic Pvc film vacuum membrane press machine mainly used for furniture,cabinets,speakers,relief doors,decoration panels for walls and other abnoormal decoration shapes With a special silicon sheet, it can also work with hot transfer and veneer

MODEL: HTV1225
BRAND: HITEC
VIEWS:

Automatic pvc film vacuum membrane press machine for wood door

vacuum membrane press machine
Feature:
1. the workbench surface is made of high strength steel plate which is secondary hardening treatment and non-deformation until 200℃ in an hour。

2. There are 1 vacuum pumps and  2  gas holders can vacuumize quickly,the maximum ultimate vacuum is -0.1 mpa.

3. The heating pipes are metal in good quality,reheating by aluminum plate,surrounded by auxiliary heating,evenly, there is not orange peel lines, bubble, etc.in the surface, and heating box uses the sole insulation technology, thermal insulation and prevent accidental burns.

4.This machine is widely used in cabinet doors, wardrobe,wood composite door  etc, can also be used to lamiante sliding door with soft package or wooden veneer (with silicon sheet), especially for hot stamping and heat transfer processing.

Application

The automatic pvc film vacuum press machine intended for laminate doors ,kitchen and furnituremachine intended for laminate doors, different furniture units with PVC films and veneer, with the help of heat and vacuum technique system.
 As result you will receive product with long life use and the same time
 with elegant and inclusive surface.
It is applicable to cover furniture, sound box, cabinets, relief door, decorative panels and all kinds of baroque decorative surfaces with PVC films and natural veneer and hot stamping foils.
Vacuum membrane press machine


Parameters of the automatic pvc film vacuum membrane press machine

Item
HT 2500YM-A2
Dimension(L*W*H)
9900*1950*1700mm
Work table size
2560*1250*60mm *2pcs
vacuum pump
63m³/h *1pcs
Gas holder
2pcs
MAX.vacuum pressure
-0.1mpa(63m³/h)
Total cpower
30KW
Vacuum motor power
3.0KW
Operating power
7.8kw
Weight
1500kg
Minimum Order Quantity
1 set
Heating way
Metal tube heating,reheating by aluminum plate
delivery time
within 25 working days upon recreipt of 50% deposit
or relevant L/C.
terms of payment
30% AS DEPOSIT IN ADVANCE , PAY THE BALANCE BEFORE SHIPPING
 Normal Packing
Free PE film packaging and plywood cases which need additional charge

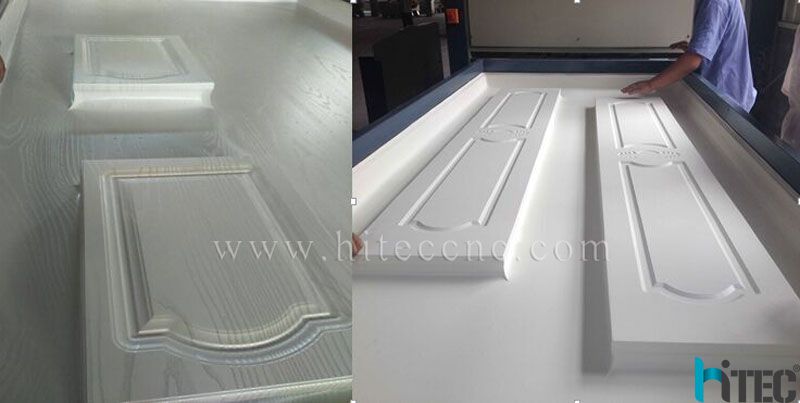

Vacuum membrane press machine samples

cnc machine

pvc film vacuum machineautomatic pvc film vacuum table

Technology and after sales service of the automatic pvc film vacuum press machine
1)24 months quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2 )Lifetime maintenance free of charge.
3 )Free training course at our plant.
4 )We will provide the consumable parts at an agency price when you need replacement.
5 )24 hours on line service each day, free technical support.
6 )Machine has been adjusted before delivery.
7 )Our staff can be sent to your company to install or adjust if necessary.
