co2 laser engraving cutting machine

Laser Engraving Materials: Wood, acrylic, plastic, glass, leather, corian, fabric, coated metals, anodized aluminum, ceramics, mylar, pressboard and more Laser Cutting Materials: Wood, acrylic, plastic, delrin, cloth, leather, melamine, paper, rubber, veneer, cork and more

MODEL: HTJ1390
BRAND: HITEC
VIEWS:

co2 laser engraving cutting machine

laser cutting engraving machine

Application for Laser Cutting Engraving Machine
Laser Engraving Materials: Wood, acrylic, plastic, glass, leather, corian, fabric, coated metals, anodized aluminum, ceramics, mylar, pressboard and more.

Laser Cutting Materials: Wood, acrylic, plastic, delrin, cloth, leather, melamine, paper, rubber, veneer, cork and more.

Advantage of our Laser Cutting Engraving machine
1. Higher-resolution standard optics for accurate operation; the red dot pointer provides a visible laser beam to determine exactly where the laser will fire.
Compared with other plastic bearings, our Steel Bearings are designed to last for many years to go; precision drive belts are made from the sturdiest, belt (x-axis) and steel cord (y-axis).

2. The adjustable table can easily be moved up and down to fit a wide variety of engraving materials and products; Emergency Stop Button for operators’ safety

3. Engraving Materials: Wood, cork, veneer, rubber, jade, acrylic, plastic, glass, fiberglass, marble, corian, leather, fabric, cloth, coated metals, aluminum oxide, ceramics, tile, mylar, delrin, melamine, paper, pressboard, matte board and more.

4. Cutting Materials: Wood, acrylic, plastic, corian, delrin, cloth, leather, melamine, paper, pressboard, matte board, mylar, rubber, veneer, cork and more.

5. Vector color mapping easily maps different speed and power settings to create different colors in your file; air compressor blows a constant stream of air on the cutting area.

6. Its DSP control system works with most graphics design programs, such as CorelDraw, AutoCAD, etc., allowing you to create same shape patterns with different colors.


Parameters

                           Laser Engraving Machine Technology Parameters
No Model HTJ1390
1 Effective working size 1300*900mm
2 Laser type CO2 laser tube
3 Cutting speed 0-200mm/s
4 Working accuracy 0.005mm
5 Control system Ruida control system--model 6332
6 Guide rail Taiwan HIWIN square rail
7 Motor Step motor and drivers
8 Cutting thickness 0-3mm metal   0-25mm nometal
9 Table structure Mesa of the blade
10 Dust collector 550W x air exhaust fan with tube ducts
11 Transmission way Shanghai Fulong Belt drive
12 Graphic format supported PLT,DXF,BMP,AI,DSP
13 Software supported CorelDraw,Photoshop,AutoCAD
14 Driving system Step motor
15 Cooling system Water pump/Water chiller
16 Water chiller CW5000/CW5200
17 Laser tube lifetime RECI laser tube:10000h
18 Power supply 220V 50HZ or 110V 60HZ
19 Operation temperature 0-45C
20 Operation humidity 5-95%
21 Recommended spare part Laser tube and lens
22 Main configuration 1X Laser tube
    1set X Mirror and lens
    1XWater chiller 1XEXHAUST FAN1x
exhaust fansmoke pipe, 1X water pipe
23 Price Range $2,500-$4,000

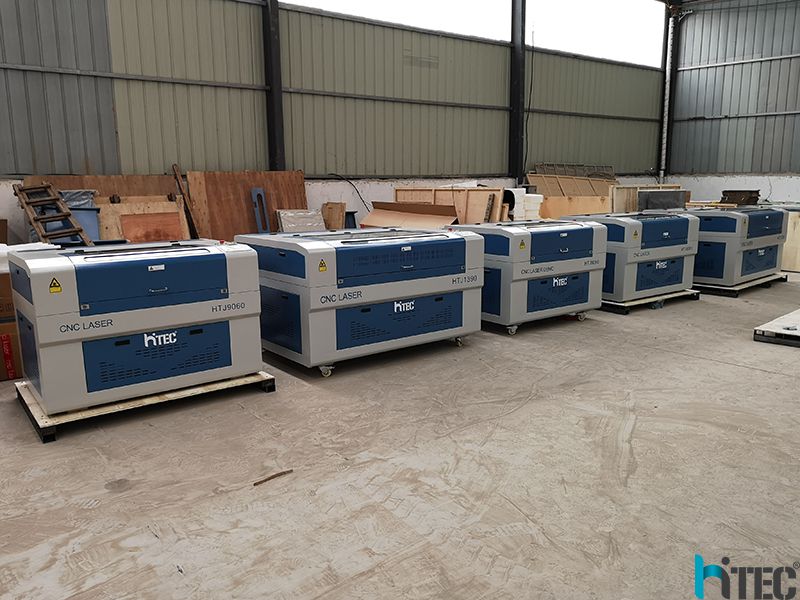

5 sets shipping to our laser cutting engraving machine agent
co2 laser engraving machine

laser cutting machine

Samples
co2 laser cutting machine application

laser engraver machine

Notes:
1.Please make sure the JPG pictures are of high resolution if you are to use JPG pictures, otherwise, the patterns to be engraved might be vague.
2. Please use vector grams done by AI or CorelDraw to engrave for ultimate results.
3.The quality of patterns to be engraved depends on a lot of factors: engraving speed, laser power, current amperage etc., all of which should be set correctly according to the manual provided.
4. Metals with plating can NOT be engraved or cut.
5. To engrave on circular truncated cones, you have to purchase a specific axis. (NOT INCLUDED in our product)
