100w wood laser engraver machine for glass bottle /acrylic

100w laser engraver machine for glass etched glass produces a fascinating matte effect Very fine contours and details can be etched into glass as photos, lettering or logos, e g on wine glasses, Champagne flutes, beer glasses, bottles, mirror or window glass Personalized gifts for parties or corporate events are memorable and make laser-engraved glass unique

MODEL: HTJ1390
BRAND: HITEC
VIEWS:

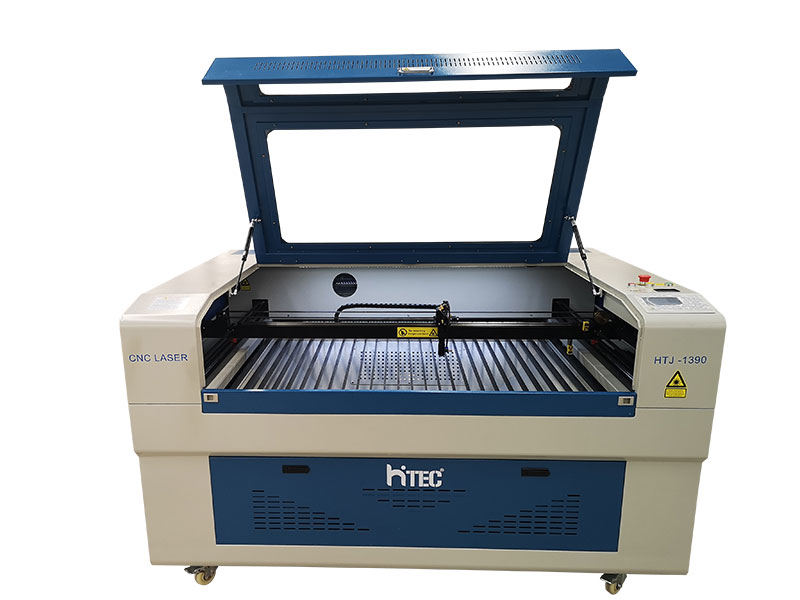

100w wood laser engraver machine for glass bottle /acrylic
100W Co2 laser engraving cutting machine

Application

Hitec wood laser engraver machine  offers a range of material and laser process capabilities, including cutting, marking, and engraving both organic and inorganic materials.

Acrylic Crystal Glass Leather MDF Metal Paper Plastic Rubber Stone Wood

Features
1.With the RD software files are sent from your graphics program directly to the laser engraver. Simply choose the material type and thickness from the provided material database and start the engraving process.
2. Professional Working Table: Honeycomb or Strip work table of the 80w laser cutter for you to choose, use imported stable aluminum material, can meet the needs of diversified laser procession.
3. Taiwan Made Ball Screw Rod: The motorized up and down table adopt Taiwan “Double-win” brand high precision ball screw rod and high accuracy linear running guide rail, can improve the precision and accuracy of the
100w laser cutter.
4. Red Light Pointer Function: As laser light is invisible, and the red light pointer of the pvc laser cutter can realize the exact position of laser beam.
5. Special Front and back running-through design 30-50mm height, Co2 laser cutters can make a unique door for the limitless engraved materials come through from front into back side, easy to put material through.
6. Ladder-Shape Drawer Design: Easily collect and getting the cutting object.
7.Laser Beam Stop when Opening Machine Cover: We design a special function to stop the laser beam come out when operator open the 130w laser cutter machine’s cover. So that ensure operator won’t be hurt by laser beam, safe for operator. Other company don’t have such design, so it will hurt operator sometime when using it.
8.We Do Strict Testing for Each Laser Tube: We will test every laser tube before using them, in order to make sure the performance of laser tube and it has nice laser facular.

Parameters

Working Area HITEC CNC LASER CUTTERS
Laser Power 60w / 80w / 100w / 130w / 150w
Laser Type Hermetic and Detached Co2 Laser Tube
Engraving Speed 0-60000mm/s
Cutting Speed 0-10000mm/s
Cutting Thickness 0-25mm acrylic (Others Determined by Materials)
Repeat Location Accuracy +/-0.0125mm
Driving Mode DC0.8A 24V Stepper Motor
Position System Red dot Laser Pointer
Interface USB port transfer
Voltage AC220v/50hz or 110v/60hz
Machine Power 900w
Controlling System CNC Professional Control System
Support Graphics Mode BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode CW-3000 Water Cooling (with Protection Function)
Auxiliary Devices Exhaust Fan and Exhaust Pipe
Cutting Platform Professional Thickening Strip or Honeycomb Work Table
Power Control Mode Laser Energy Combining Movement Control System
Software Professional Reader Laser Cutting Software
Operating Temperature 0-45C
Operating Humidity 5-95%
Packing Wooden Box
Guarantee Time 24 Months for Machine, 3-10 Months for Laser Tube
Operation VCD Training, Engineer Overseas Available
Price Range $2,500$-$6,000

Reci Laser Tubes 100w
laser engraving machine acrylic


RD Laser Control System
RD Control system for laser cutting machine


Laser Head
co2 laser head

Control Box


Belt Transmission


Samples for laser engraver machine
laser wood cutting machine
co2 laser engraving machine for glasslaser engraver for wood


Strong Wooden Package


After Sales Service
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for machine, 10 months for laser tube (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
