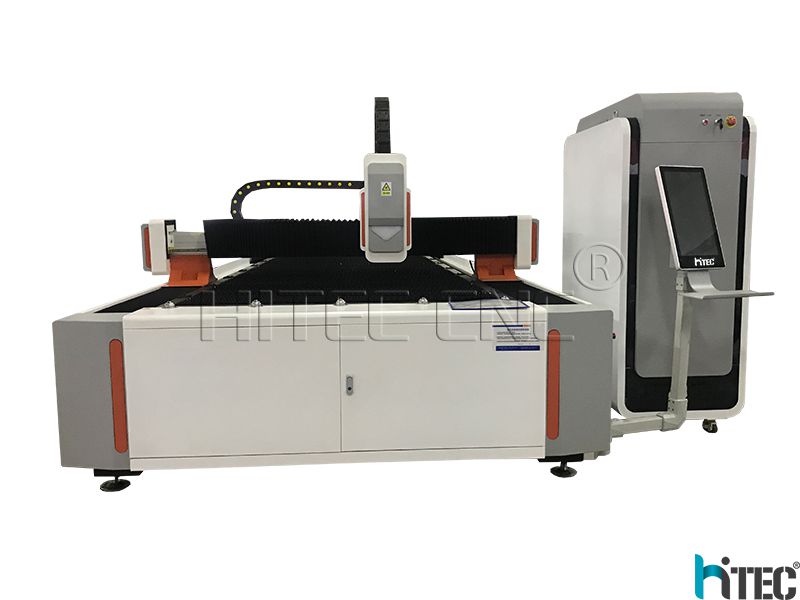

1000w/2000w/3000w fiber laser cutter for metal

1000w 2000w 3000w fiber laser cutter for metal Stainless steel、carbon steel、manganese steel、galvanized、various alloy plates

MODEL: HTF3015CN
BRAND: HITEC
VIEWS:

1000w/2000w/3000w fiber laser cutter for metal
Fiber laser cuttermetal laser cutting machine
Fiber laser cutter for metal application

High efficiency: Software with strong function, capable to design sorts of shapes, letters for cutting with easy and convenient operation. Application of 500W 1KW 2KW fiber laser metal cutting machine for metal cutting CNC metal sheet fiber laser cutting machine is widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration.

Fiber laser cutter for metal Application Materials
Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.

Features of 1000w/2000w/3000w fiber laser cutter
NOTE: Call us to schedule a LIVE demo at our
Hitec factory.


► Efficiently cuts stainless, carbon, aluminum, titanium, and other non-ferrous metal applications
IPG Photonics fiber laser power source (USA) ranges: CW 500W, 700W, or 1KW。


► Laser Head: Swiss made capacitive fiber cutting head engineered for higher power cutting
Fiber offers reduced maintenance requirements and operating costs compared to CO2


► Cutting area of 59x118" (5x10') accepting full sheets of metal (79" x 236" also available)

► Transmission: Atlanta Helical gear rack & pinion w/ HIWIN linear guide bearings & rails
Z-Drive: Ball Screw transmission w/ HIWIN bearings & rails


► Precision: <+/-.004"

Yaskawa AC servo motors & drivers Pneumatic rollers for convenient sheet metal handling

Laser Software Interface: CypCUT Plane Cutting Software

Mounted touch screen monitor and remote control for convenient interfacing
Working voltage: 22v,380v 3phase


► Includes Free on-site installation and training.

Parameter

Brand HITEC
Laser source Germany IPG/Raycus fiber laser resonator
Processing surface (L × W) 3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 14KW
Position accuracy X, Y and Z axle +0.03mm
Repeat position accuracy X, Y and Z axle +0.02mm
Maximum position speed of X and Y axle 72m/min
Acceleration 1g
Max load of working table 1000kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Price Range 20000$-50000$

Cutting Thickness Limit for 1000W Laser Cutting Machines:

Material Cutting Thickness Limit
Carbon steel 12mm
Stainless steel 6mm
Aluminum 4mm
Brass 3mm
Copper 3mm

Main Parts for 1000w Laser Cutting Machine:
Article Name Remark
Fiber laser resonator IPG (Germany)/1000W
Servo motor and driver DELTA (Taiwan)
Ball screw rod HIWIN (Taiwan)
Liner guide HIWIN (Taiwan)
Gear rack YYC (Taiwan)
Laser head RAYTOOLS (Switzerland)
Chiller TONG FEI (China)
Controller FISCUT (China)
Gas Proportional valve SMC (Japan)
Reduction gear box APEX (Taiwan)
Details Parts
1.We use 5faces cnc milling machine to milling machine parts,guarantee the machine high precision and stability.
cnc milling machine

2.Fiber laser cutting machine industry professional control panel
fiber laser cutting machine software


3.High quality Japan Yaskawa Servo Motor And Drivers
Japan Yaskawa Servo motor

4.Taiwan Apex and Hiwin square rails
Taiwan Hiwin Square rails

5.High quality and strong blade table
fiber laser cutting machine parts

6.Tongfei water chiller best brand


Fiber laser cutter samples
metal laser cutting machinestaiinless steel metal cutter machinefiber laser cutting machine for copper10mm carbon steel metal cutterfiber laser cutting machine price

Wooden Box
HITEC CNC WOODEN PACKAGE

hitec fiber laser cutter
Hitec Factory
HITEC FACTORY


Training to install (3options):

A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.

B. You can come to our factory for training.Hitec will offer professional guide. Direct and effective face-to-face training. Here we have assembled equirtments, all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.

C. Engineers service machinery overseas
1.Guarantee the Germany Quality HT3015LN 1000W Stainless steel silver metal tube pipe
CNC fiber laser cutting machine IPG for 3 years.
2.We can design the HTF3015LN 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine as your requirement.
3. HTF3015LN  1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine User-friendly English manual for using and maintaining.
4. HTF3015LN  1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine Engineers available to service pipe fiber laser cutting machine overseas.
5. HTF3015LN 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine Manual: All English operating system,English Version Manual and operation sample video CD.

FAQ
What is Hitec Fiber laser advantages?
1) Excellent beam quality
2) Simple , compact, electrically and optically efficient
3) Compatibly powerful and reliable
4) Maintenance free
