500w/750w IPG fiber laser metal cutting machine

500w 750w IPG fiber laser metal cutting machine Specially used for cutting 0 5-5mm carbon steel, 0 5-3mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel,0 5-2mm aluminum, 0 5-1mm brass and red copper and other kinds of thin metal sheets(The thickness and materials depend on different laser source

MODEL: HTF2513
BRAND: HITEC
VIEWS:

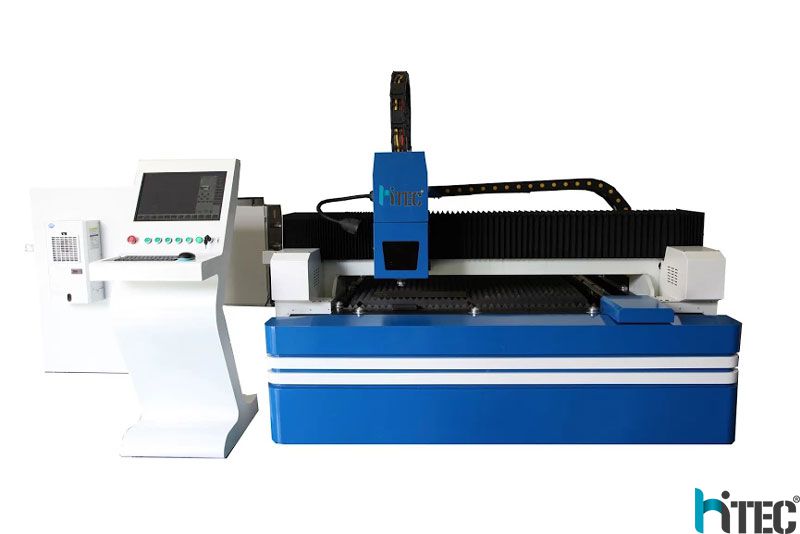

500w/750w IPG fiber laser metal cutting machine

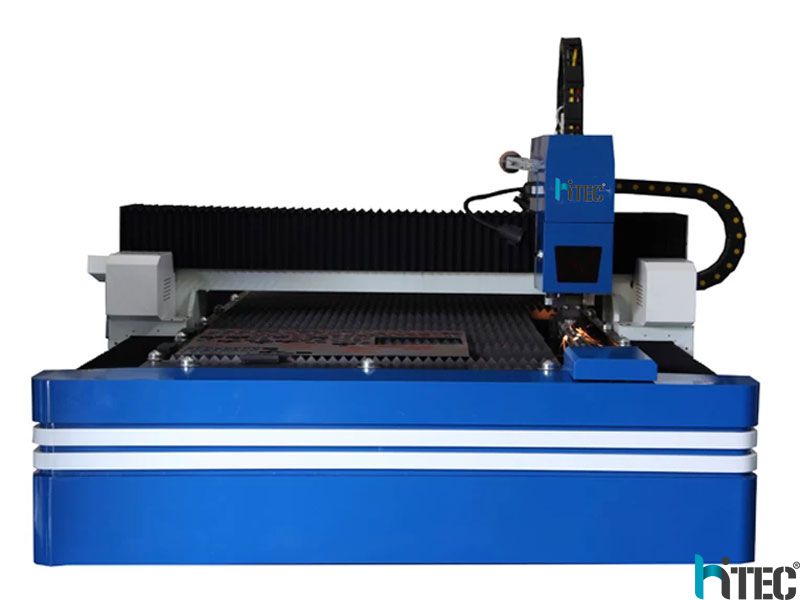

500w/750w fiber laser metal cutting machine
Features


500w IPG Fiber laser metal cutting machine cutting thickness limit

Material Cutting Thickness Limit
Carbon steel 6mm
Stainless steel 3mm
Aluminum 1mm
Brass 1mm
Copper 0.5mm









Speed Chart
Material
  Thickness
(mm)
Cutting speed
(m/min)
Gas
Mild steel 0.5 24 O2
1 10.8 O2
1.5 7.2 O2
2 4.8 O2
2.5 2.8 O2
3 2.1 O2
4 1.5 O2
5 1.2 O2
6 0.6 O2
Stainless steel 0.5 24 N2
1 9.3 N2
2 3 N2
3 0.6 N2

500w/750w IPG Fiber laser metal cutting machine technical specification

Brand HITEC CNC
Laser source America/Russia IPG fiber laser resonator
Processing surface
(L × W)
3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 10KW
Position accuracy
X, Y and Z axle
±0.03mm
Repeat position accuracy X, Y and Z axle ±0.02mm
Maximum position speed of
X and Y axle
72m/min
Acceleration 1g
Max load
of working table
600kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Price Range 30000$-9000$

IPG Laser metal cutting machine samples
fiber laser cutters

500w/750w fiber laser metal laser cutting machine advantage

(1) Fiber laser metal cutting machine is for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.

(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.

(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

(4)
Hitec Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.


Fiber laser metal cutting machine application
metal laser cutter
fiber laser cutter machine samles
