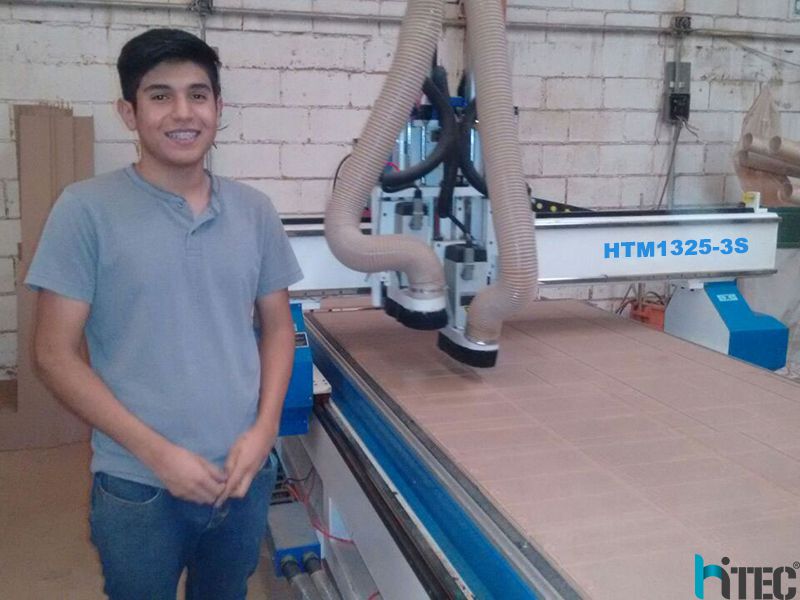

I bought the Hitec cnc three spindles HTM1325-3S cnc router machine last year.It working very good for kitchen cabinet door.I love this machine.
whats the cnc router can do?


Features of the three spindles cnc router from Mexico
♦ One time data setting, 3 spindles can finish one worktogether
♦ 3 spindles vertical
♦ YASKAWA servo motor with stable performance

Parameters

♦ X, Y working area: 1,300 x 2,500 x 200mm (51.2 x 98.4 x 7.9inches)
♦ Table size: 1,300 x 2,500mm (51.2 x 98.4 inches)
♦ X, Y, Z traveling position accuracy: ≤0.1mm
♦ X,Y,Z reposition accuracy: ≤0.1mm
♦ Table surface: vacuum table (bakelite)
♦ Lathe bed: welded with 200 x 300 x 8mm thick square steel
♦ X, Y transmission: high accuracy gear rack
♦ Z transmission: imported ball screw
♦ Max power consumption (without spindle): 12W
♦ Max travel speed: 30m/min
♦ Max working speed: 20m/min
♦ Spindle power motor: 3kW x 3
♦ Spindle speed: 2,400rpm
♦ Driver system: Japan YASKAWA servo
♦ Working voltage: 380/220V
♦ Command language: G code
♦ Operating system: DSP
♦ Interface: USB
♦ Flash memory: 128m
♦ Diameter of cutter head: 3.175-12.5
♦ X, Y resolution: ≤0.1mm
♦ Software: UCANCAM, Type3

Application of hitec cnc router machine
Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. Wood products: Voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
