cnc lathe for woodworking engraving

Fast speed and multi-fuction cnc wood turning lathe machine for woodwokring

MODEL: HTL1530C
BRAND: HITEC
VIEWS:

CNC Lathe for Woodworking Engraving
wood turning lathe engraving machine
Application
CNC Lathe for woodworking engraving designed for turning spindles, posts, columns, and even baseball bats if that is your finished product.  Profiles are designed in CAD/CAM software provided with the machine and stored on the control computer for easy recall.  This eliminates the need for changing templates between jobs which can be time consuming and expensive.  The lathe runs on single phase power so it can even run in small workshops or a garage.  Standard features include a flip up safety guard and dust extraction hood as well as center punch mounted on the machine.

Features of cnc lathe for woodworking
1. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing(banisters), etc
2. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed
3. Adopt imported high precision square guid
4. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.

Advantage of cnc lathe for woodworking
1. This machine with one spindle, one chuck and one backlash. This model support upgrade to two chucks and two backlash. You can mount on material to two chucks and compelete the work piece simultaneously. One operator could run 2-3 pcs of cnc wood lathe at the same time for saving salary cost.

2. Most Advanced Material Loading Skill: When you load workpiece to cnc wood lathe, you do not have to fix workpiece on the chuck, then get the other edge of workpiece to find the center. And we loade the workpiece to machine, machine 4 points could help to find the center. And it only takes 3 seconds for whole material loading material, with higher precision then auto loading. When you process larger diameter vase, you could use auto cutter and adjustable air-cylinder, this improve the workpiece surface finish and last the cutter life time. The center supporter fix workpiece center when it is under the condition of self weight. This workpiece center fixing way is with higher precision.

3. Easy Programming. Usually, programing is the important step before working, and this is also a time-spending work. HITEC CNC wood lathe program assit you to reduce this time and improve working efficiency for more benefit. HITEC programing could be processed with photo. When photo is taken then scan, then could get into programming automatically. And you can measure and change size in the PC directly.

Parameters
Brand HITEC CNC
Max processing length 1500mm(can custom 2000/2500/3000mm)
Max turning diameter 300mm
Air pressure 0.6-0.8Mpa
Powersupply AC 380V 3 phase 50HZ/60HZ (can custom 220V)
Max feed rate 2000mm/min
min setting unit 0.01cm
Transimission type ballscrew for X Z axis,gear for Y axis
Guider Taiwan Hiwin orbit
Main shaft rotating speed 0-3000r/min
Motor power 4kw
Cutter material Super hard alloy
Control System DSP control system
Motor Stepper motor
Driver Yako driver
Inverter Best inverter
Drawing Software AutoCAD
Interface Internet cable
Price Range $5,500--$7,500

PS: About the pindle,with air cylinder---Spindle  is not neccessary ,depend how do you prrocess cylindrical wood,If you engarve some designs on wood, then need spindle
Protection ring---when cylindrical wood is broken, this ring can prevent wood from hitting  human.

Details Parts
china cnc wood lathe price
wood turning lathe price

fast speed cnc lathe machineA11 DSP controller systemcnc lathe bits

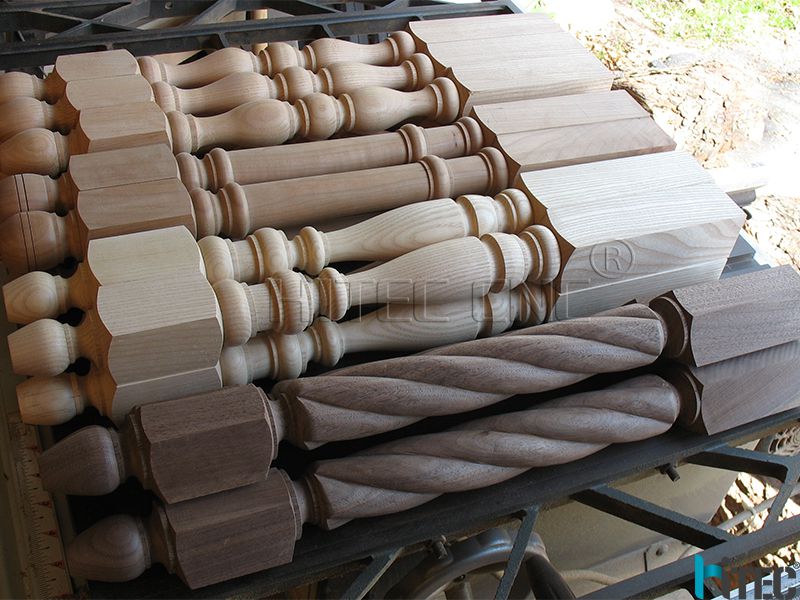

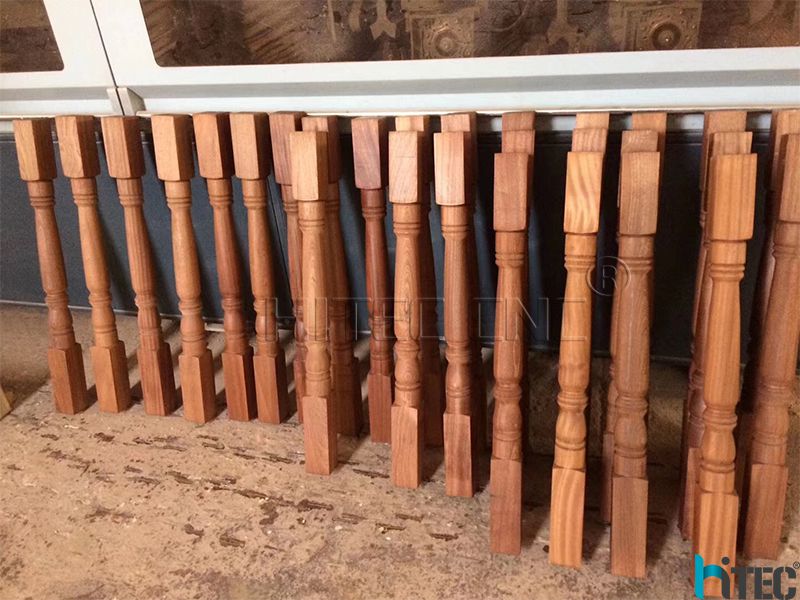

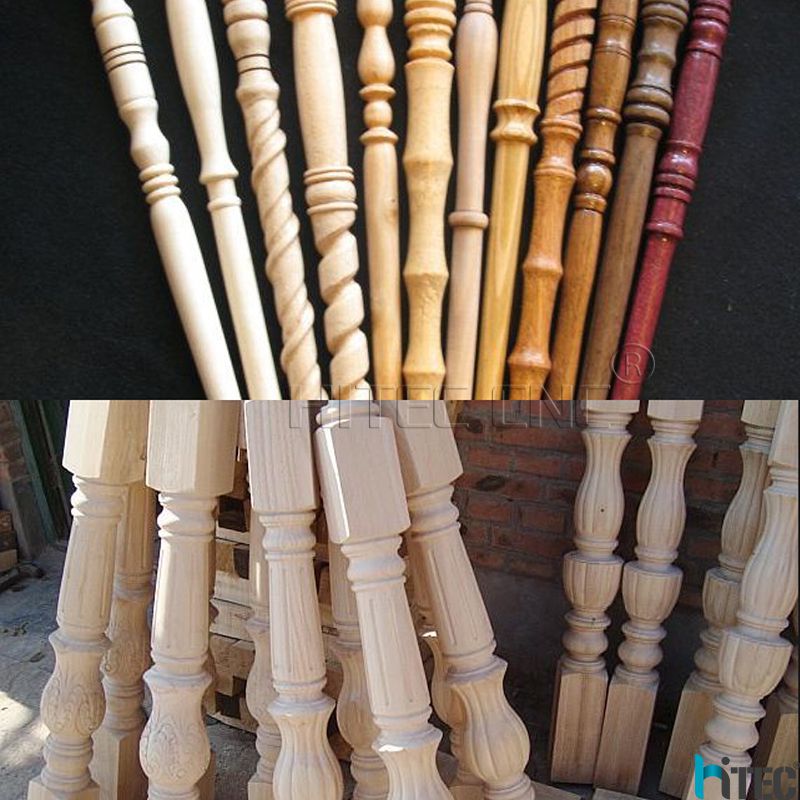

Woodworking cnc lathe samples
woodwokring cnc lathe samples
woodworking cnc lathe sampleswoodturning lathe price

Our service
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4.Machine will be adjusted before it is delivered , operation disk/CD was included.
5.Engineers available to service machinery overseas, seller and buyer discuss the charges.

Our company& factory
1. The company's main product is the engraving machine and laser machine, the use of these two kinds of machine is wide.
2. The company engaged in machinery production and sales professional for 15 years, to the needs of different customers can be satisfied.
3. The company produces the use of components is cooperation with famous companies, such as: HSD, TAIDA, FULING.
4. The company is the biggest group is a research and development department and service department, the company has a sound management system.
