4x8ft CNC wood router for sale

4x8ft CNC wood router for sale can Improve cutting and engraving quality, Increase production volume, Gain better material yields ,Decrease overhead and Increase profits

MODEL: HTM1325E
BRAND: HITEC
VIEWS:
CATEGORY: CNC Wood Router

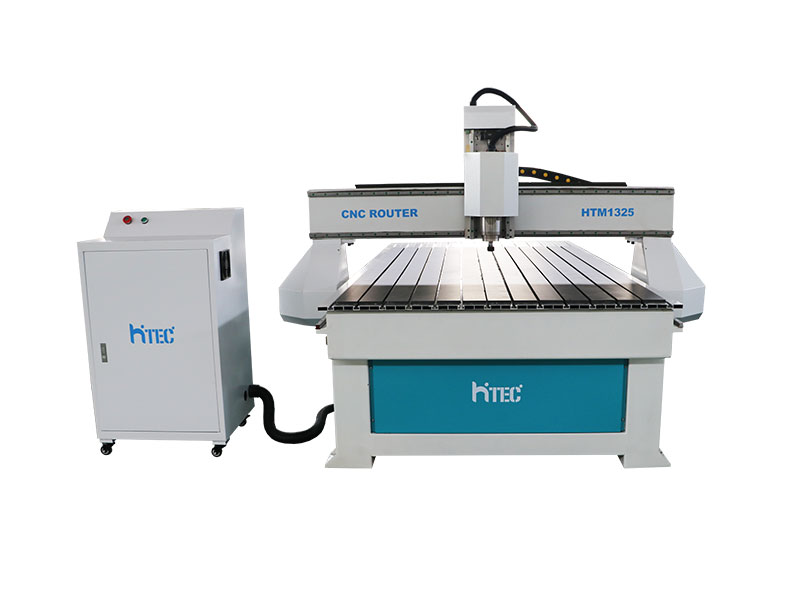

4x8ft CNC wood router for sale

wood router

Advantages of 4x8ft CNC wood router

  1. 1.The machine’s body is strong, high-precision, reliable and durable.
  2. 2. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
  3. 3. High-performance drive motor to ensure the machine’s high speed and accuracy.
  4. 4. Perfect design, top quality accessories, to minimize the machine’s failure rate.
  5. 5. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
  6. 6. 2 motors for Y-axis, high speed.

Applications of 4x8ft CNC wood router
  1. 1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
  2. 2. Wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
  3. 3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
  4. 4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Features of 4x8ft CNC wood router

1. Lathe bed adopts strong welded steel tube to avoid distortion.

2. Y axis adopts double motors to keep stable moving.

3. High accuracy Rack Rail travel method with high speed.

4. Imported Square Liner Rail,high accuracy,heavy burthen.

5. Advanced international technology vacuum with double cavity.

6. Humanization Design of lathe bed vacuum and easy working.

7. Intelligent protecting working fable.

Parameters

Brand HITEC CNC®
X,Y,Z Working Area 1300*2500*200mm
Working Voltage 380V/3PH/50Hz(Can Be Customized to Meet Different Country’s Requirement)
Control System WEIHONG DSP NK105/A11 DSP
Spindle Changsheng Water Cooling Spindle
Spindle Speed 0-18000RPM
Inverter 3.7KW Inverter
Drive Motors Stepper Motor and YAKO 2811
Frame New Type Heavy Duty Body
Lubrication Manual Lubrication System
Gantry structure Steel Gantry
Spray/ Flume Automatic Oil Mist Cooling
X, Y Structure ABBA/PMI 20# Guide Rails
Z Structure TBI Ball Screw Ball Screw Transmission
Tool Sensor Semi-Automatic Tool Sensor
Limited Switch Japan Omron Limited Switch
Wire High Soft Shjeld with Copper Wire to Protect Against Static Electricity
Price Range $3,600-$4,500

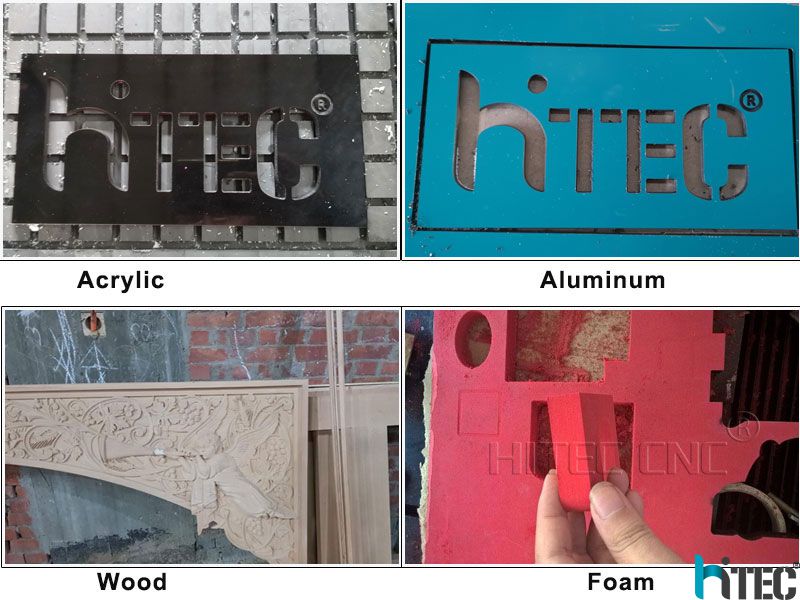

Samples

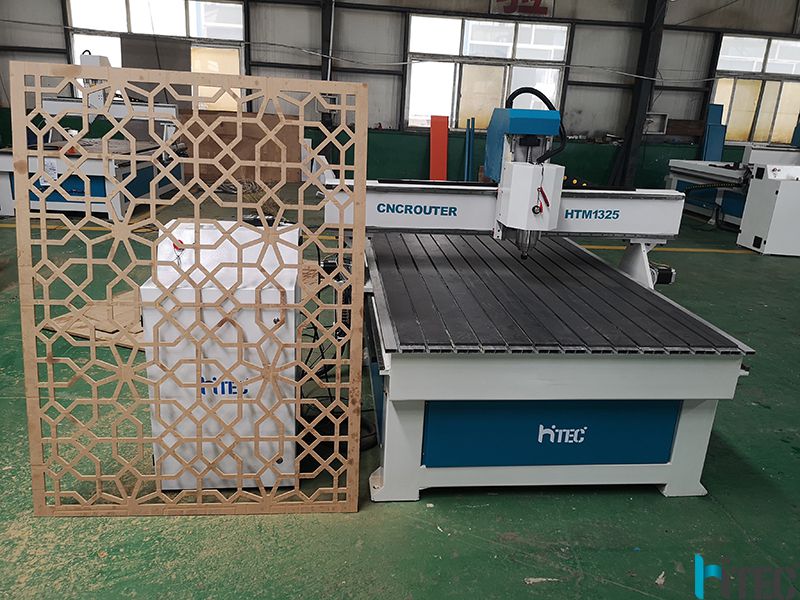

wood cnc router sampleswood carving cnc router hitec

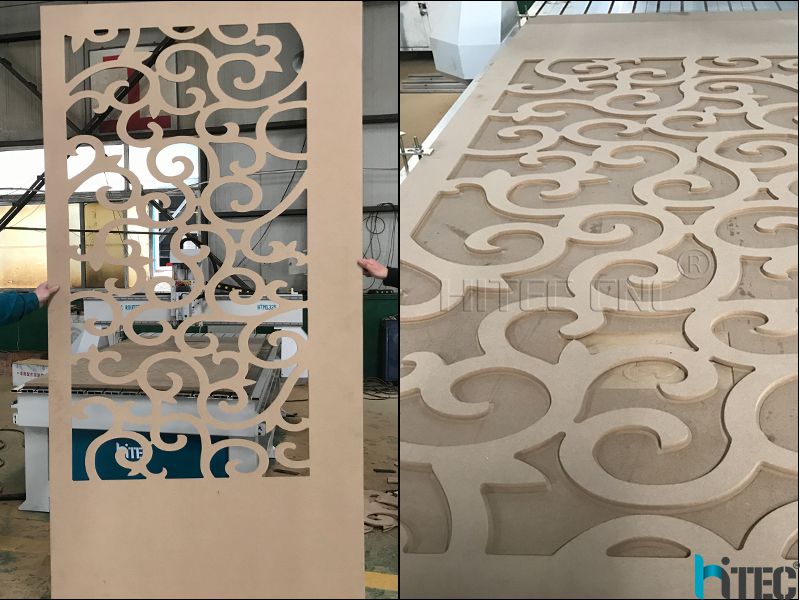

wood holllow cutting cnc

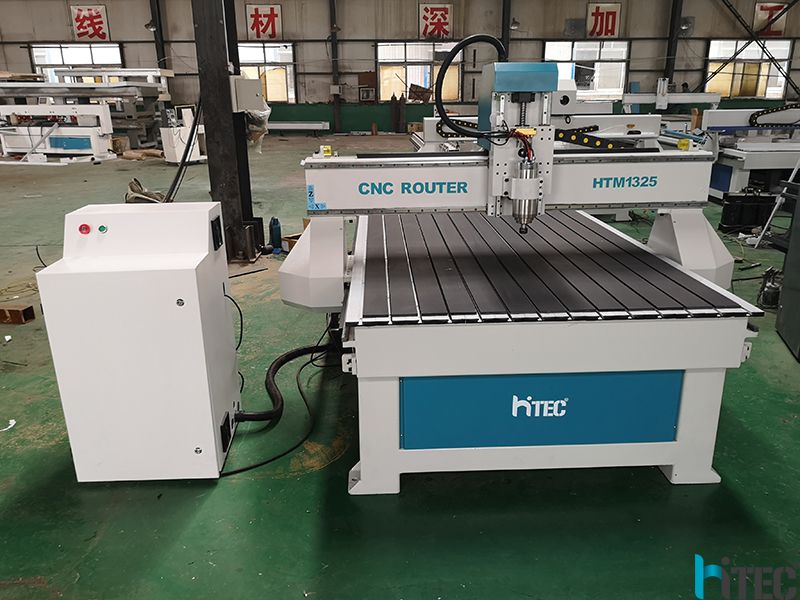

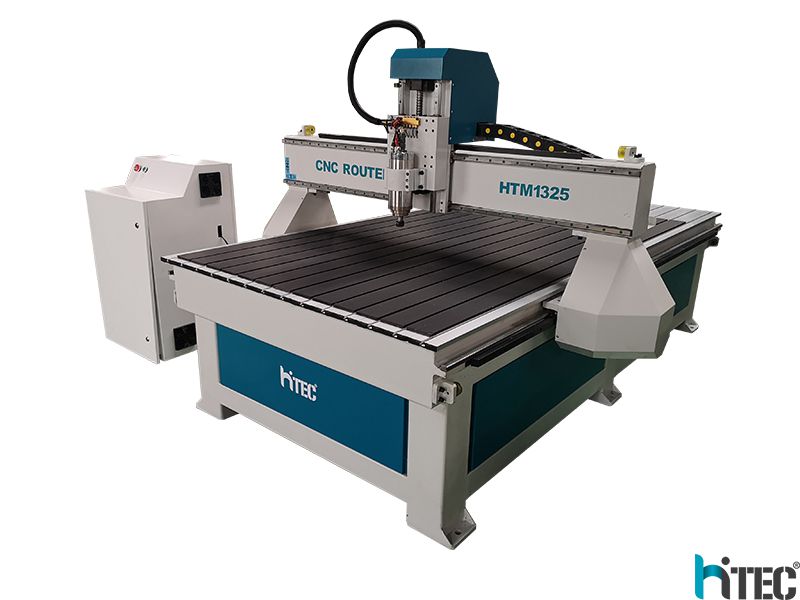

HTM1325 wood cnc router

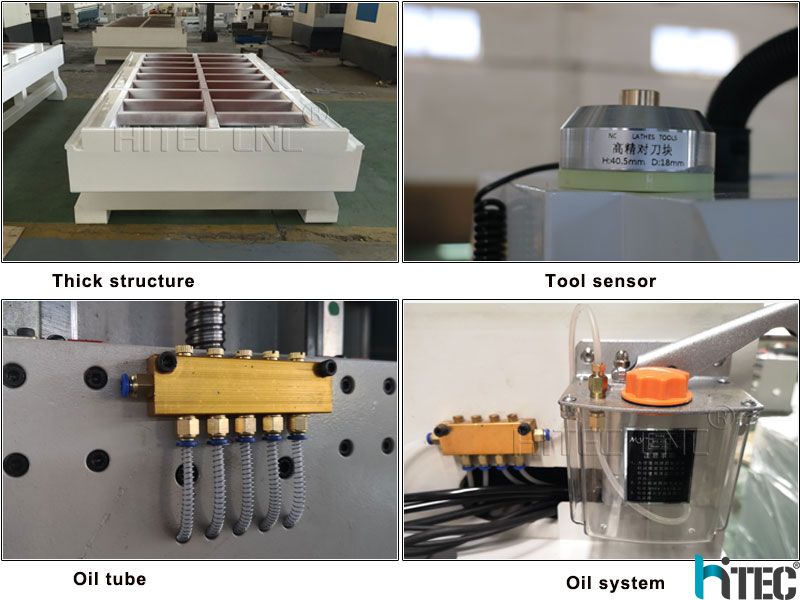

Details Parts

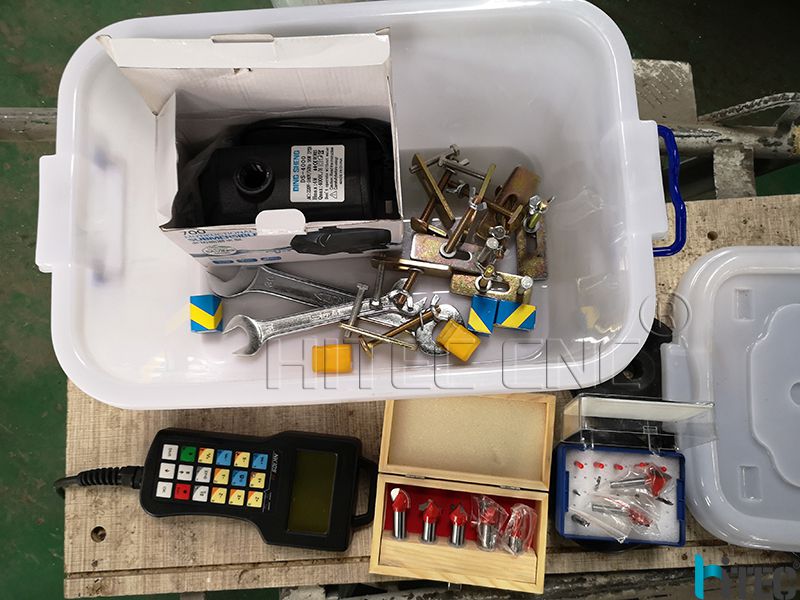

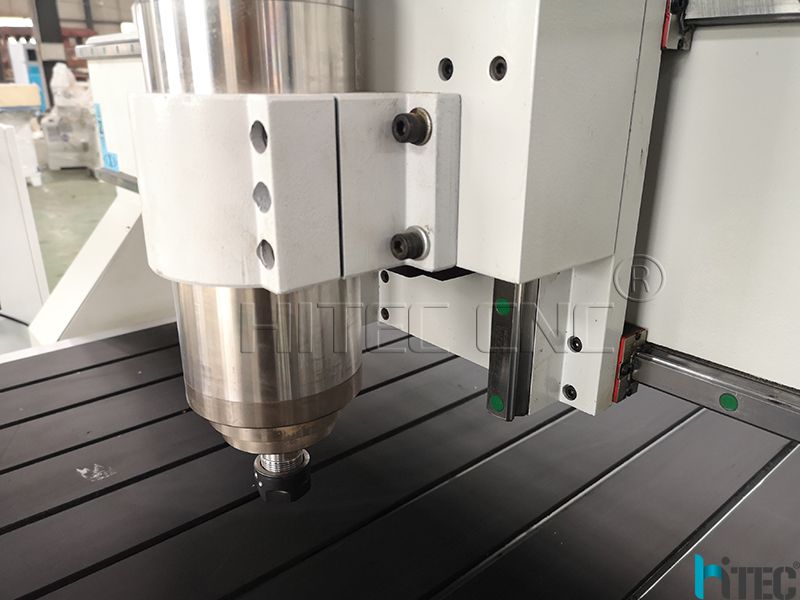

water cooling spindle 3kwrouterscnc router bitsFuling Invertertools box

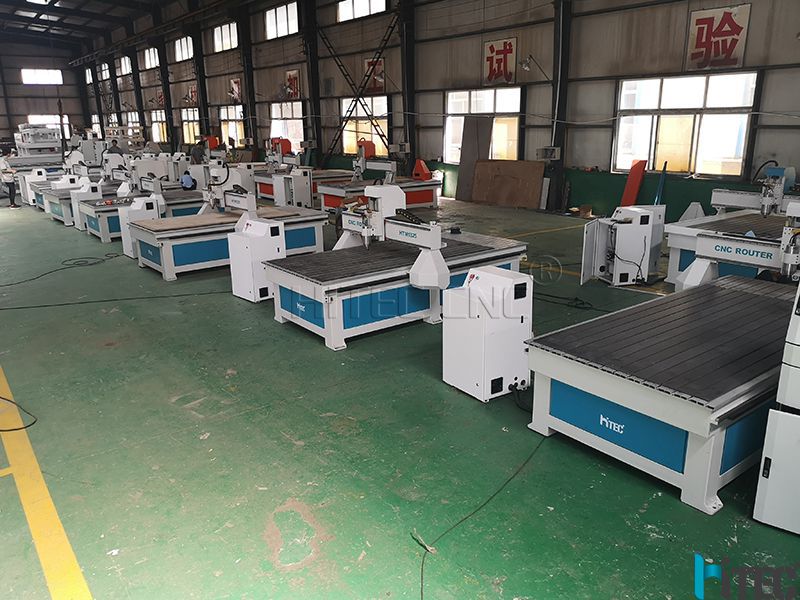

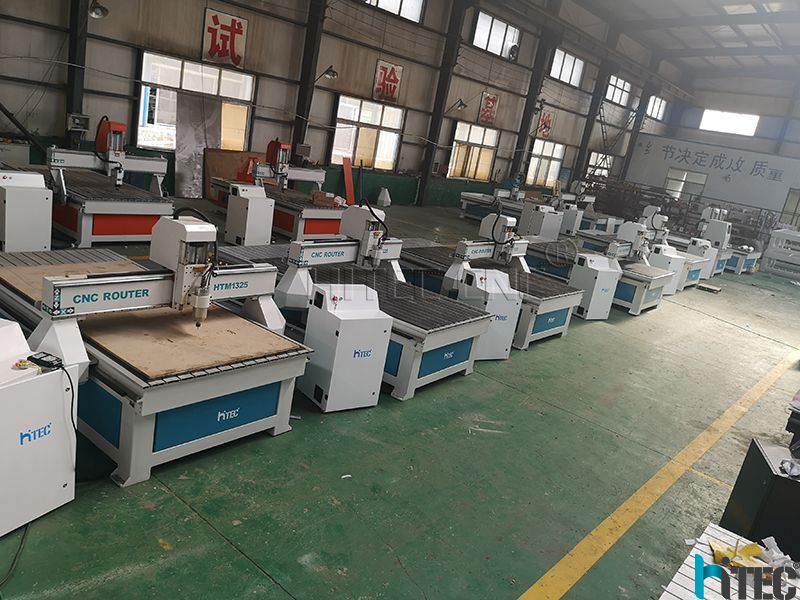

CNC Router machine in factory

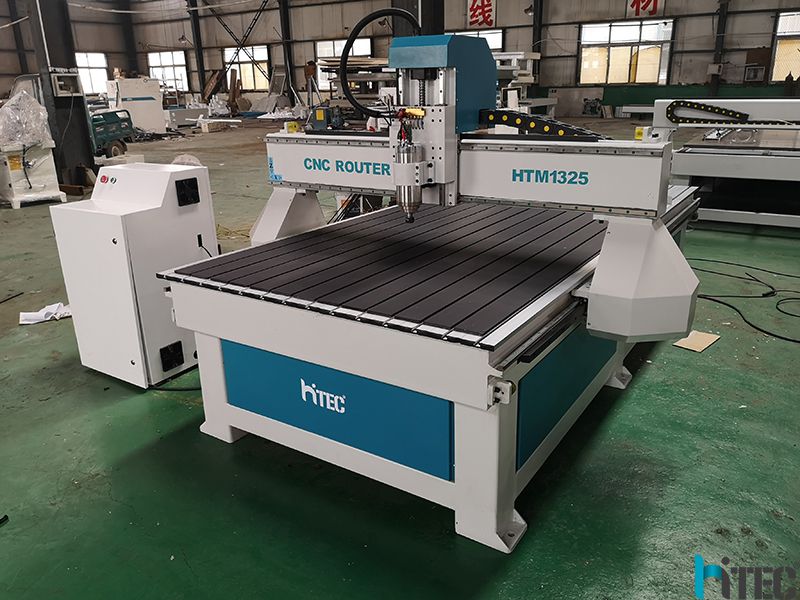

1325 cnc routercnc router 1325
cnc wood routerwoodworking cnc router machine



Optional Parts

  1. 1. Rotary device(4th axis).
  2. 2. 200mm/300mm/400mm/500mm for Z axis.
  3. 3. 3KW water-cooling spindle.
  4. 4. NCstudio/DSP control system.
  5. 5. Stepper motor(Japan Yaskawa servo, Taiwan DELTA servo for choose).
  6. 6. Automatic tool changer(ATC).
  7. 7. Dust collector.
  8. 8. Vacuum pump.
