cnc router 2030 vacuum table

Apply to process the dimensional wave plate, cabinet doors, solid wood doors, craft wood doors, paint door,screen, craft fan window, shoe polisher, game machine cabinet, mahjong table, computer table and panel furniture products

MODEL: HTM2030
BRAND: HITEC
VIEWS:
CATEGORY: CNC Wood Router

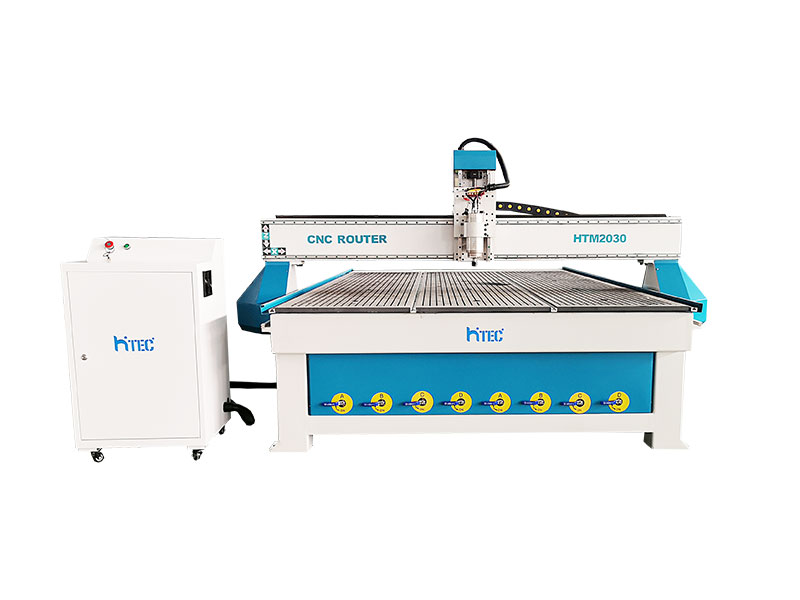

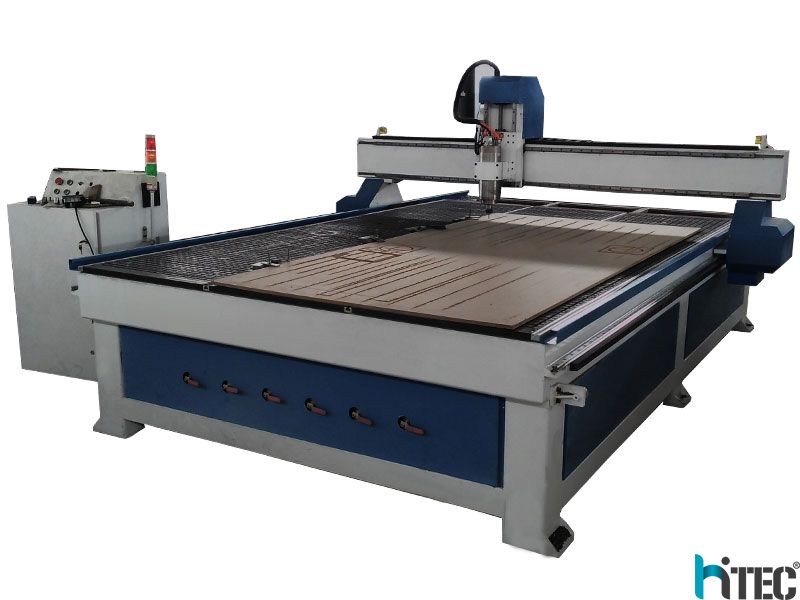

CNC Router 2030 Vacuum Table
wood router cnc

Description of cnc router 2030 with vacuum table:
Model: HTM2030
Working Area: 2000 x 3000mm
Max engraving speed: 20000mm/min
Reposition accuracy: <0.04 / 300mm
Spindle: 6KW
Spindle speed: 6000 – 24000rpm
Tool Diameter: F3.175, F6, F12.7
Dust collector power: 3.0KW
Vacuum power (Only for Vacuum Model): 5.5KW
6KW Air Cooling Spindle / Stepper
Clamp Table / Dust Collector
6KW Air Cooling Spindle / Stepper
Vacuum Table / Dust Collector
6KW Air Cooling Spindle / Servo
Vacuum Table / Dust Collector

Materials can making by cnc router 2030 vacuum table:
Wood, perspex, abs, forex, polystyrene, foam, rubber, leather,
copper, bras, aluminium and more.

Features of cnc router 2030 vacuumt table
1. The whole machine bed with steel structures welded, aging treatment of vibration to ensure that can use without deformation.
2. Y axis adopts double motors to keep stable moving.
3. High accuracy, rack rail drive method with high speed.
4. Imported square liner rail, high accuracy, heavy burthen.
5. Advanced international technology vacuum with double cavity, extremely, strong suction of the vacuum pump.
6. Intelligent protecting working table. Humanization design of lathe bed vacuum and T-slot with clamps as well and eaxy working.
7. Vacuum system and lubrication system, just push the button and easy to complete regular maintenance(For Vacuum Model Only).

Parameters of the cnc router 2030 vacuum table
Number Brand HITEC CNC®
1 X,Y,Z Working Area 2000x3000x200mm
2 Table Size 3250×2940mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface Vacuum Table (Option:Vacuum and T-slot Combined )
6 Frame Welded Structure
7 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
8 Z Structure Hiwin Rail Linear Bearings and Ball Screw
9 Max. Power Consumption (Without Spindle) 3.0Kw
10 Max. Rapid Travel Rate 33000mm/min
11 Max. Working Speed 25000mm/min
12 Spindle Power 3KW water-cooling spindle
13 Spindle Speed 0-24000RPM
14 Drive Motors Stepper System
15 Working Voltage 220V/2ph
16 Command Language G Code
17 Operating System DSP control system
18 Computer Interface USB
19 Flash Memory 128M(U Disk)
20 Collet ER20
21 X,Y Resolution <0.03mm
22 Software Compatibility Type3/UcancameV9 Software, (Option: Artcam Software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%
25 Packing Size 3270X2150X1850mm
26 N.W. 1100KG
27 G.W. 1200KG
28 Price Range 4000$-7000$


Whats our Hitec Cnc Router Advantage?
Like our other CNC in the Basic CNC series The Basic “HTM2030” starts with a very heavy duty welded steel frame. The T-Slot PVC vacuum table with a vacuum pump installed provides excellent hold down capacities for large or smaller parts. In addition the table has a series of T-Slots for mechanical holding and the use of hold down jigs. Under the frame are four heavy duty 5” diameter adjustable feet to make sure of a solid footing on the shop floor.
The spindle is an industry leading commercial quality Italian made HSD 4.5kw (6 HP) three phase electrical spindle which comes with 1/8”, ¼”, 3/8” and ½” high precision ER25 collets. The three phase motor is then converted by a Delta phase inverter to run at 0-24,000 rpm on single phase 220 volt power. HSD is the leading Italian manufacturer of CNC spindles throughout the world. Users will find the speed, power and precision of the HSD spindle second to none. The HITEC CNC Group offers 10.5” of “Z” travel while also utilizing a heavy duty 1” ball screw and stepper motor.

Samples of cnc router 2030 vacuum table
wood cnc router machinemdf cutter cnc router


HTM2030 cnc router details parts
3kw water cooling spindlehitec cnc mach3 controllergear box

After Sales Service

1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
