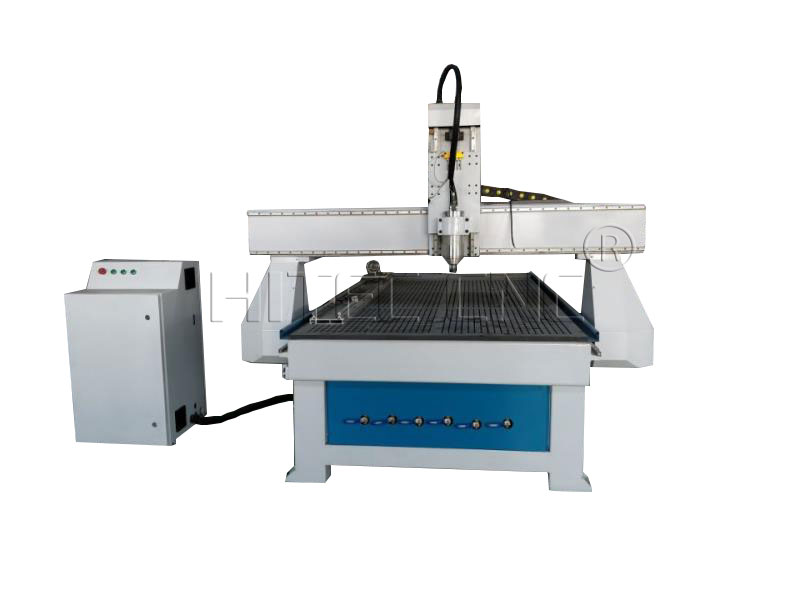

4*8 cnc router for wood cabinet
4*8 cnc router for wood cabinet
1, woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
3, die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4, other industries: A variety of large-scale relief sculpture, video carving, widely used in gift processing industry.
|X,Y,Z Working Area||1300x2500x200mm|
|Table Surface||T-slot and vacuum working table|
|Structure||Industrial class square tube strong structure|
|X, Y Structure||20#Taiwan ABBA Linear guide and helical rack|
|Z Structure||Taiwan TBI Ball screw and 20#Taiwan ABBA Linear guide and helical rack|
|Spindle Power||3KW china water cooling spindle|
|Drive Motors||FL118 stepper motor and YAKO2811 drive|
|Inverter||5.5 kw Taiwan Delta Inverter|
|Control System||DSP A11 handle controller with USB port|
|Lubrication||Manual Lubrication system|
|Tool sensor||Manual tool sensor calibration|
|Option A||dust collector with 2 pockets (according to your needs)|
|Option B||5.5kw Whirlpool vacuum pump (according to your needs)|
|Control box||Single Control box|
|Option||Oil mist cooling system|
|Limit switch||Japan OMRON limit switch for X, Y, Z axis|
|Command Language||G Code|
|Software Compatibility||ARTCAM 2012 software, (Option: Artcam Type3 Software)|
|Running Environment Temperature||0 - 45 Centigrade|
4*8 cnc router for wood cabinet door samples
1. Compater with other supplier ,our Hitec cnc router for wood cabinet advantages:
♥ 10-12mm industrial class square tube strong bed. You can use our elephant cnc router more than 10 years.
♥ T-slot working table, pvc protection. We can also provide vacuum table for your choice
♥ DSP A11 control, very easy operation and support offline which means that you can still operate even though meet power off.
♥ Italy HSD 7KW Air cooling spindle. International famous brand, good using and guaranteed after-sale service
♥ Stepper motor. Big power supply. Servo motor for your option
2. Features of our 4*8 cnc router for wood cabinet:
♦ 1300*2500*200mm effective working area
♦ Original china water cooling spindle, 24000RPM
♦ Taiwan DELTA 7.5KW inverter;
♦ FL118 bigger stepper motor and YAKO2811 drivers;
♦ RichAuto DSPA11 handle controller with USB port;
♦ Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel,
♦ All axis Sweden SKF group ABBA linear guide and rails, 20#;
♦ T-slot working table
♦ 1.5KW Double bags dust collector with CE Certificate
♦ French Schneider electric parts
♦ Independent control box;
♦ Artcam 2012 software for free
♦ Working voltage: 380V/50HZ/3PH
Hitec Factory warranty
1. 24 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
