CNC Routers for wood, plastics, mdf, plywood

CNC Routers for cutter engraver Wood, Plastics, mdf,plywood, stone, Pvc, Aluminum, Cooper, PCB

MODEL: HTM1325-H
BRAND: HITEC
VIEWS:
CATEGORY: CNC Wood Router

cnc routers for wood, plastics, mdf, plywood

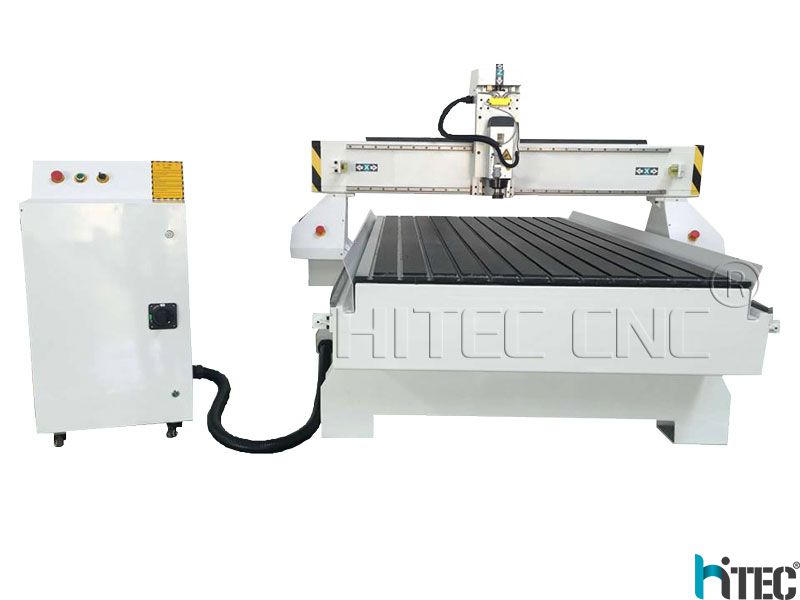

cnc wood router
cnc routers main configuration

1)CE FDA ISO certificate
2)Working area: 1300*2500*200mm (4*8)
3)Spindle:Italy HSD air cooling 4.5KW spindle
4)Control system:DSP NK105 cotrol systerm
5)Drive system:easy servo motor and drivers
6)Transmission:XY by gear, Z by Taiwan TBI ball screw
7)Rail guide: XYZ axis adopt Taiwan Hiwin linear square rail guide,
8)Table:T-solt table+Aluminum
9)Fuling Inverter
10)Tool sensor
11)Tools box (including all tools for machine)
12)Heavy duty 10mm
13)Software: Artcam/ Type3  software
14)Voltage: 380v, 3phase  220v single phase
15)Filter( anti-interference)

CNC Routers applications
As the name suggests, our
Hitec CNC routers is used primarily in the woodworking industry and are also used for the production of other materials for example; cutting of and engraving on acrylic materials, double-colour boards, PVC/EVS and ABS boards, stones and imitation stones as well as dibond, brass  and aluminium materials.


Our cnc routers machine advantage
*High productivity quality machines at affordable prices
*Heavy duty frame 10mm
*software and 2d flat carving 3d relief design for free
*Support English,Russian,France technology service


CNC Routers for wood,plastics,mdf,plywood,stone,pvc samples

3d wave cnc router designcnc router application

CNC Routers technology parameters

Model HTM1325 HTG1224 HTG1212 HTM1530 HTM2030
X-Y-Z axis working area
(x-y-z)
1300*2,500*200mm 1200*2400*200mm 1200*1200*200mm 1500*3000*200mm 2000*3000*200mm
Machine Size 2,150x3,150mm
Resolution 0.0025mm
Z axis height 200mm, (300mm, 400mm optional)
X.Y movement Rack and pinion
Z movement Ball screw driver/Germany
Guide Linear 20 square/Taiwan
Max. speed 35,000mm/min
Max. cutting speed 25,000mm/min
Spindle Italy hsd air cooling spindle 4.5kw
Spindle speed 24000rpm
Driver motors Leadshine servo motor and drivers
Inverter power 7.5KW /Sunfar
Rotary axis
(Optional)
Working length 1500mm, diameter 100mm
Working voltage AC380V, 50/60HZ 3 phase
Command code G code
Computer interface USB 2.2
Collect ER25-12.7mm,6MM, 3.175MM
Software Router software/France
Controls DSP A 11(Digital signal Processor)
Packing dimensions 2260x3250x1960mm, 1350KGS
Equipments included 1). Oil lubrication system
2). Auto adjusting device
3). 6 zone vacuum system with 5.5KW air cooled vacuum pump
4). Double bags dust collector 3KW
Warranty 24 month for whole machine
Brand HITEC CNC®
Machine more details parts
hitec cnc router

heavy duty cnc router
After Sales Service Team
hitec cnc after sales team
