cnc carton box cutting machine

cnc carton box cutting machine widely used for folding carton, corrugated board, white cardboard, grey cardboard, Polypropylene, foam inserts, paper-based sandwich board, printed corrugated and many other materials

MODEL: HT02030
BRAND: HITEC
VIEWS:

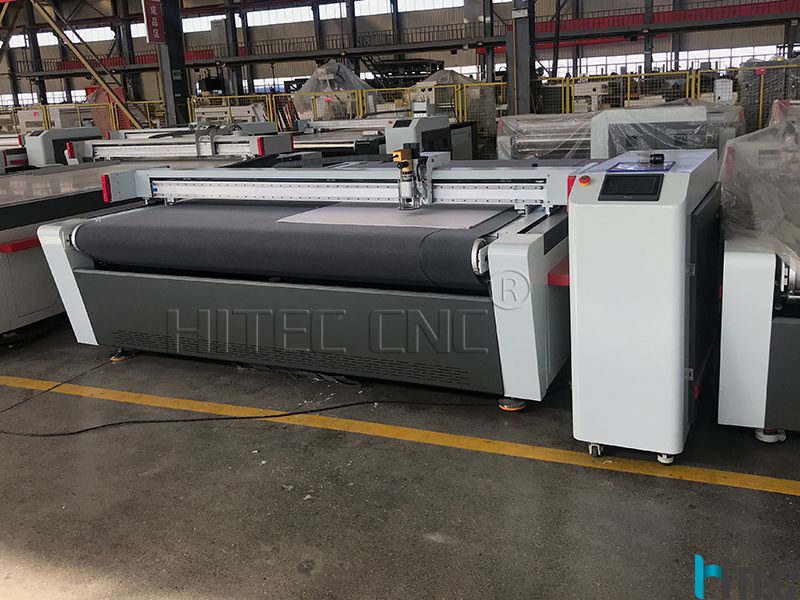

cnc carton box cutting machine
HITEC cnc oscillating knive cutter


Automatic Cutting Machines for the packaging solutions.
HITEC cutting system supplies the best solution to make sampling and short production run for packaging industries, and equipped with variety of knives and pens, and satisfies different kinds of material cutting. Such as Cardboard containers, corrugated cardboard, solid fibre board, synthetics..... It can connect with other software well with ECHO powerful data converting software, and complete the transition from traditional manual sampling to high precision.

CNC Cartion box cutting machine application materials
Folding carton, corrugated board, white cardboard, grey cardboard, Polypropylene, foam inserts, paper-based sandwich board, printed corrugated and many other materials.

Most Advantage
1. Its professional in cutting accurate samples of caron, grapgic box and gift box from paper, plastic and other soft amteirals without haveing to use any die cutter or mould cutting machine.

2. It can cut a variety of materials automatically and fastly with different tools, such as corrugated board, foam board, coated pvc, leather, plastic products, carbon fiber, fibre glass,ect.

3. Effective Cutting Area:1300mm*1100mm, 1700mm*1300mm,1200mm*1600mm,2000mm*1100mm, 2500mm*1600mm and the size can be  customerized.


Parameters
Brand HTO2030

Cutting speed

200-800mm/s(depends on the kind of material)

Moving Speed

800-1200mm/s

Cutting Depth

≤50mm (depends on the kind of material)

Min.Cutting Diameter

3mm

Cutting Media

Corrugated paper, cardboard, grey cardboard, Plastic board,
Foam, EVA foam, rubber, composite material, etc.

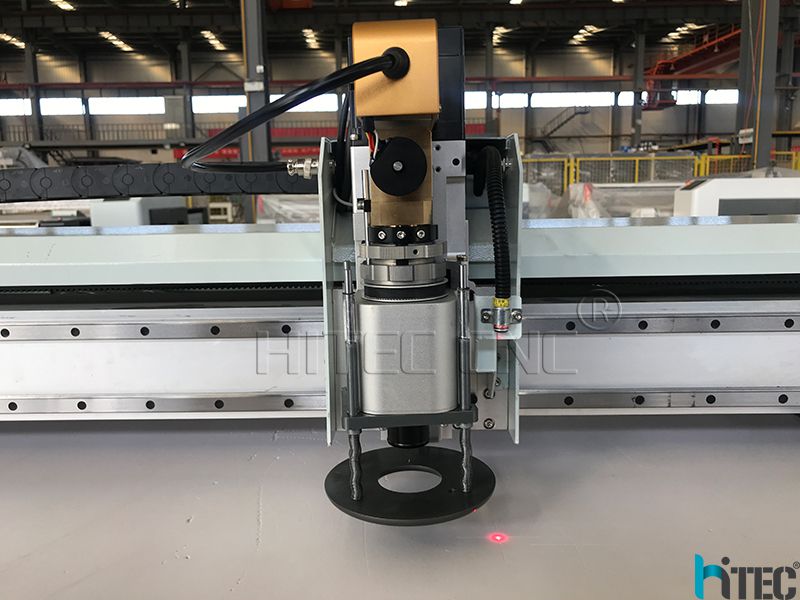

Multi-functional Tool Head

Oscillating cutting knife, plotting pen, creasing wheel and laser pointer

Pen/Blade/Wheel

Gel-ink pen /Cutting blades of different type/ Creasing wheel of different size

Media Fixture Device

Individual section vacuum suction

Repeat Cutting Precision

≤0.1mm

Safety device

Infrared sensor, responsive, safe and reliable

Interface

Serial port and Ethernet port RJ45

Transmitting distance

350m

Buffer Memory

2G

Data transfer rate

100MB/S

Command Mode

HP-GL compatible format

Control Panel

Touch screen

Transmission System

Digital servo driver;Straight rail;Synchronous belt

Power Supply

AC 110V/220V/380V±10% 50HZ / 7.5KW
AC 110V/220V/380V±10% 50HZ / 11KW

Working Environment

10 to 35 deg.C

Effective Cutting Area
(mm*mm)

1300*1000

1800*1500

2500*1300

2500*1700

3000*2000
Price Range $1,3000--$2,1000

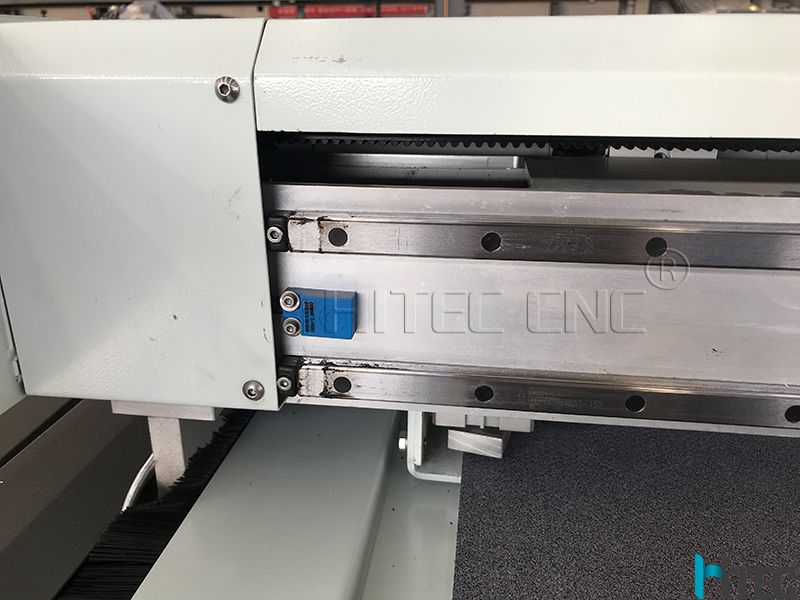

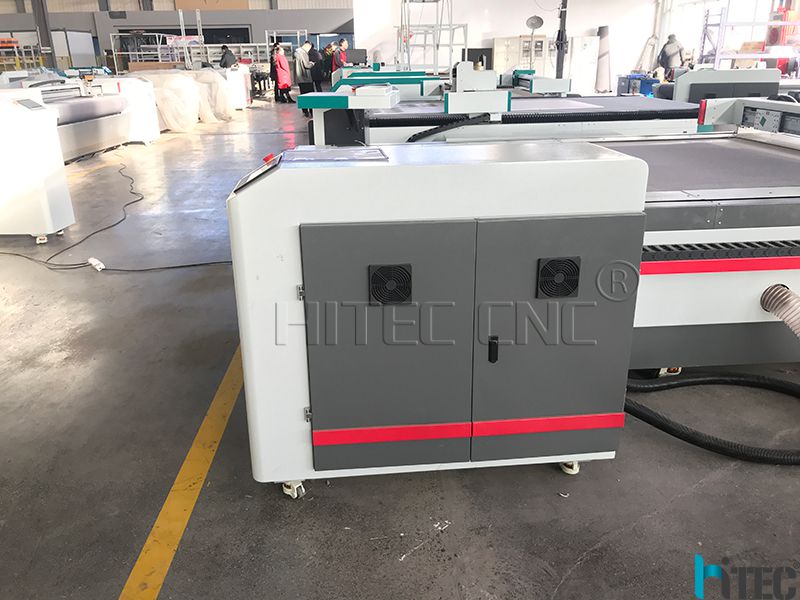

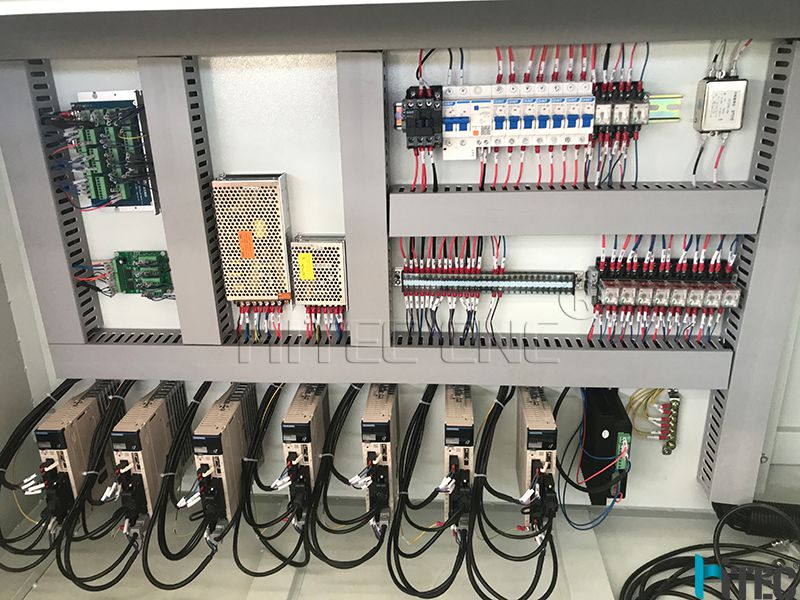

Details Parts
cnc oscillating knife cutter pricecnc knife cuttercnc oscillating cutterchina paper cutting machine

Samples Pictures
carton box cnc oscillating knife cuttercarbon box cnc knife cutter

CNC oscillating knife cutter  applicable industry
EVA foam, CUTCNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc.It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently.It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements.The heavy duty drag knife tool is available for special materials of the sign making industry.
Great for marking:
serial number tags
industrial nameplates
military and aerospace ID tags
asset and property tags
parts and tools

What HITEC Support for customer
1. Free samples and test video
2. Online service Pre-sale and After sales
3. Free video for leaning machine


Tag:  carton box cutting machinecnc cutting machinecnc oscillation knife cuttercnc box cutting machinepacking box cutting machine
