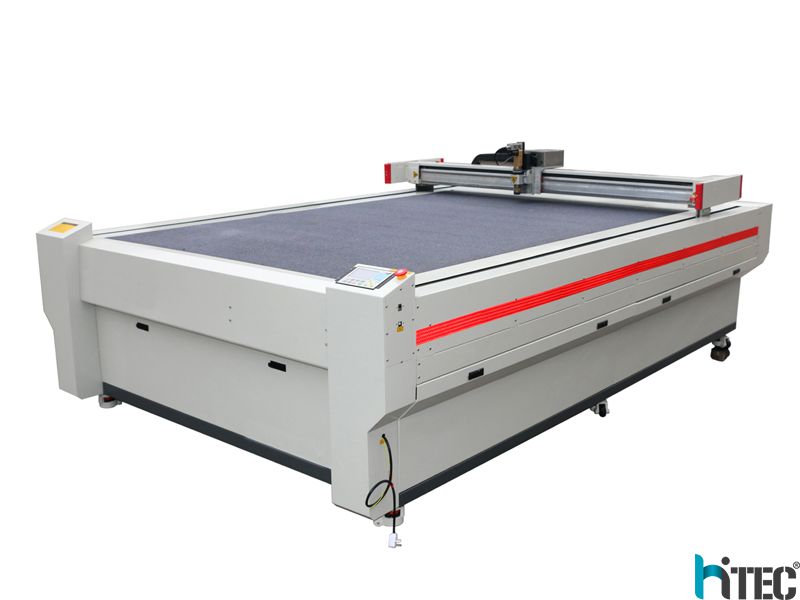

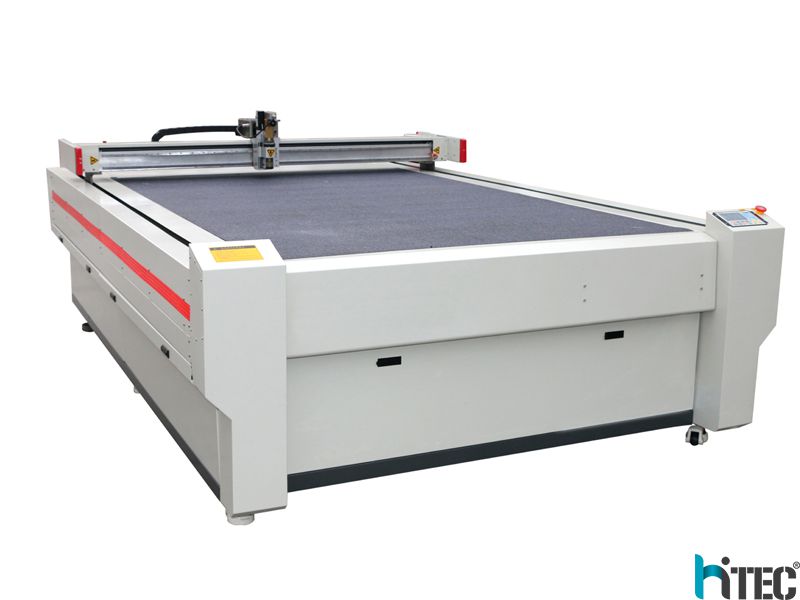

Digital Fabric Oscillating Knife Cutter Plotter Machine For Sale

Digital Fabric Oscillating Knife Cutter Plotter Machine Widely used for Cartons leather corrugated paper PVC expansion sheet Thick foam Grey board Paperboard Car sticker Adhesive sticker and etc

MODEL: HTO1625
BRAND: HITEC
VIEWS:

Digital Fabric Oscillating Knife Cutter Plotter Machine For Sale
cnc oscillating knife cutter machinehitec cnc oscillating knife cutting machine

What you should to know before you choose the Digital Fabric Oscillating Knife Cutter Plotter Machine?

* Cutting precision
The precision of Digital Fabric Oscillating Knife Cutter Plotter Machine For Sale that every mechanical manufacturer can provide now is about ±0.2mm,there should be a complete procedures for test fiberglass cutting accuracy before delivery.Through testing, we can fully grasp the flatness of the cutting platform and the synchronization control level of the control system
* Cutting speed
After meet the demand of fiberglass cutting precision then we can talk about with the cutting speed,
HITEC CNC fiberglass knife cutting machine adopt Japan Yaskawa servo motor and driver, provide optimum cutting performance and fast, accurate results.
* Automatic layout optimization
Our fiberglass fabric cutting machine operation simple, easy to understand and not complicated,the graphics library should be more flexible and AutoCAD graphics also can be used in typography.
* Easy maintenance
The machine is equipped with I/0 signals and sensors,if the some device of the fiberglass cutting cnc machine meet problem,you see the I/0 signal state on the LED screen,it is more convenience and easy to find fault and replace the parts.
* Saving consumption
Our fiberglass oscillation cutting machine with fast cutting speed anf high cutting precision,save time,save labor and save cost.machine cutting with knife blade,no burn no smoke is good to the environment protection .
* More safe for operation
Equipped with infrared security devices , can effectively protect the safety of the operator

Application
Digital Fabric Oscillating Knife Cutter Plotter Machine For Sale can process fabric,knitting vamps, non-woven, leather, rexine, cotton, felt, silk, lace, polyester, fleece , soft shell,jeans,alcantara,neoprene ,Corrugated board, cardboard, white board,gray board, sticker, PVC film,
foam board, artificial leather, leather, gasket,sponge, Prepreg,acrylic, honeycomb board, fiberboard, epoxy resin board, organic glass, car mat, fiber,composite material and other soft materials, etc.

Features
1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable
working performance.
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures
high accuracy, no deformation and super long service life
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. AOL digital cutting machine was designed easy to install, set-up and operate.
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety.
6. Cutting by knife not laser, no air pollution , no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.


Parameter for oscillating knife cutter machine

Parameter/Model HTO-1325 HTO-1625 HTO-2030
Multi-functional Cutting Head Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc.
Tools configuration Various cutting tools, creasing wheels, pen, cross positioning laser
Safety High sensitivity infrared induction (optional)
Moving Speed Max. 1200mm/s
Cutting Speed Max. 800mm/s(please set the speed according to the material)
Material Applicable Corrugated paper,non woven fabric ,  PVC expansion sheet, KT board, foam board, grey paperboard,
cardboard, vehicle sticker, adhesive sticker etc.
Cutting Depth Max 50mm (depends on the material)
Material Fixing Method Strong power vacuum absorption and intelligence Partition
Resetting Positioning Accuracy Max 0.01mm
Mechanical Precision Max 0.02mm
Drive System Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail
Control System digital oscillation control systerm
Display English LCD touch screen
Data Transmission Ethernet
Command HP-GL compatible format
Buffering Capacity Standard--4GB
Rated Power 11KW 12KW 14KW
Max Working Size 1300*2500 2500*1600 3050*2050
Rated voltage 380V
Body dimension 2241*2152*1235mm 3391*2723*1235mm 3891*3173*1235mm
Hitec Cnc Option :
- machine size can be customized according your request
- auto feeding system
- multi function cutting head
- auto nesting cutting software
- CCD camera visual cutting system
- Projector cutting system

Smples


Machine Shipping

After Sales Service

2 Years whole machine guarantee
