4axis cnc router for sale

4 axes CNC router machines make work possible on both sides, which is not on 3 axes CNC router The 4-axis machine tools also have XYZ axis, a turntable is added Two years guarantee

MODEL: HTM1325-4axis
BRAND: HITEC
VIEWS:
CATEGORY: 4 Axis Cnc Router

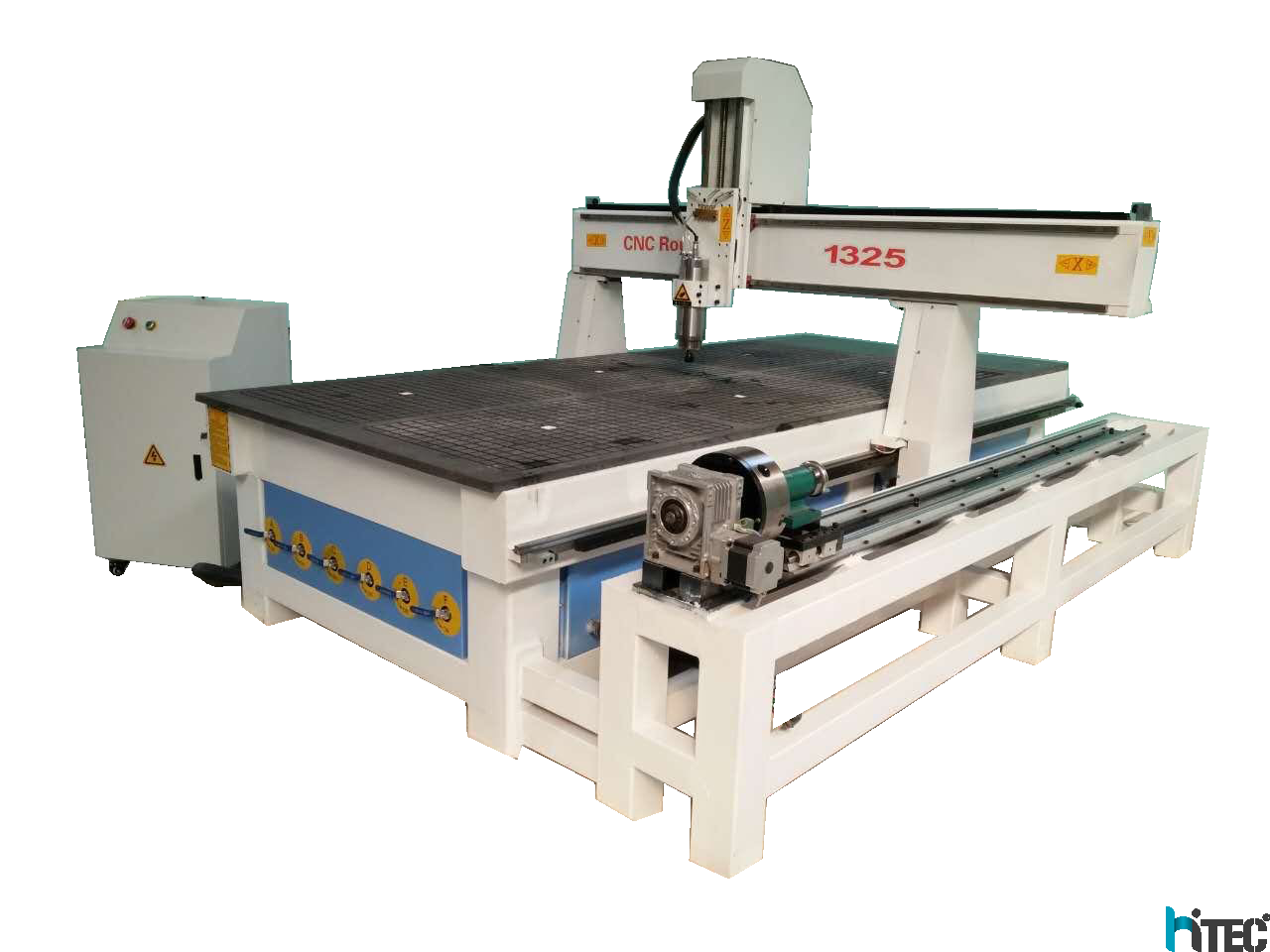

4axis cnc router for sale

4axis woodowkring cnc router

Application of our cnc router for sale

4axis cnc router machine for sale mainly used in woodworking furniture industry,like solid wood door, kitchen cabinets, wardrobe cabinets, tables, beds, computer desk and cylinders like table legs, sofa legs, wooden craft, paint door, screen, craft fan window processing, shoe polisher, game cabinets and panel, mahjong table, auxiliary processing.

4axis cnc router for sale technology parameters
*Powerful 3KW water cooled spindle motor
*With latest DSP controller. Very easy to use. Non need of computer to run the machine.
*Complete with 4th AXIS rotary movement.
*The Z axis effective working area is 200mm, and accept material thick 195mm.
*Gear transmission very high speed,Ball screw high precision.
*Independent power supply for main board.
*Limited switch added.
*Auto-Checking function.
*Can engrave cutting material such acrylic, brass, wood, aluminum, PCB and so on.
*Complete with water pump.


Brand HITEC CNC®
Model HTM1325-4AXIS
X,Y,Z Working Area 1300x2500x200mm
Table Size 1300×2500mm
Table Surface Vacuum and T-slot working table, 6 zones
Structure Industrial class square tube strong structure
X, Y Structure Rack and Pinion Drive, Taiwan PMI 25# Linear Square Rail;
Z Structure Taiwan PMI 25# Linear Square Rail and TBI Ball Screw
Spindle 6KW Air cooling spindle
Spindle Speed 0-18000RPM
Drive Motors 850w Japan YASKAWA servo motors and drivers
Inverter 7kw Fuling inverter
Working Voltage 380v, 3phase, 50HZ (or customized)
Command Language G Code
Operating System DSP A18 control system
Computer Interface USB
Collet ER32
Machine color White and blue (Can be customized)
Software Artcam
Lubrication system New type lubrication
Tool sensor YES
Dust collector 3kw new type double packet dust collector (380V, 3Phase, 50Hz)
Price Range 4000$-8000$

Samples
4th axis cnc routerwood door cnc router

4axis cnc router for woodworking application with rotary
The customers who like our 4xis CNC router often ask?

Q1. how to get the most suitable CNC router and best price?
Please tell the material you want to working on?

How to working on it? Engraving? Cutting? or other?
What’s the MAX size of these material?( length? Width? Thickness?)

Q2. Do you have the manual of CNC router?
Yes, we have.

Q3. If we donot know how to use the CNC router,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q4. How about your CNC router after-sales service?
we offer you 24 hours service phone, skype or whatsapp.

Q5. How about your CNC router guarantee period?
Two years, and during the time,if you have any questions ,we will solve it for free.

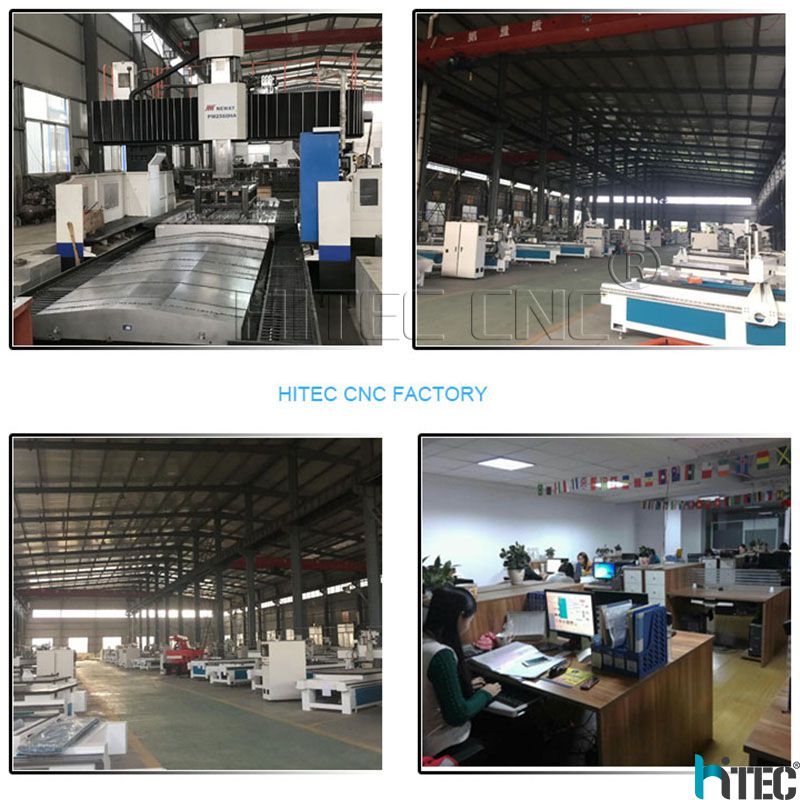

Hitec Cnc Company
JINAN HITEC MACHINERY CO.,LTD the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE ISO FDA etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
